Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Condition |

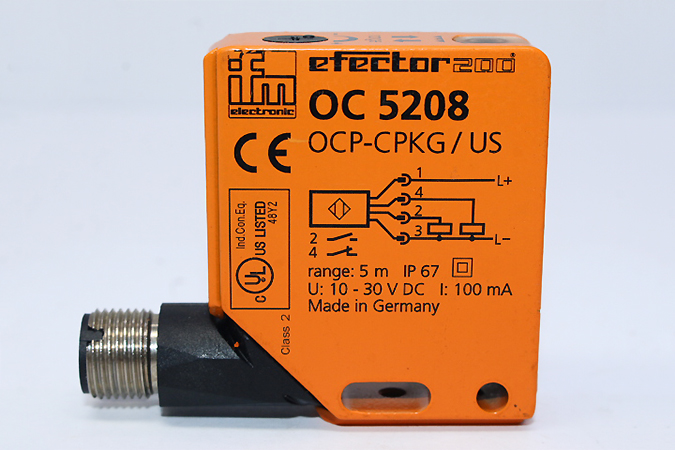

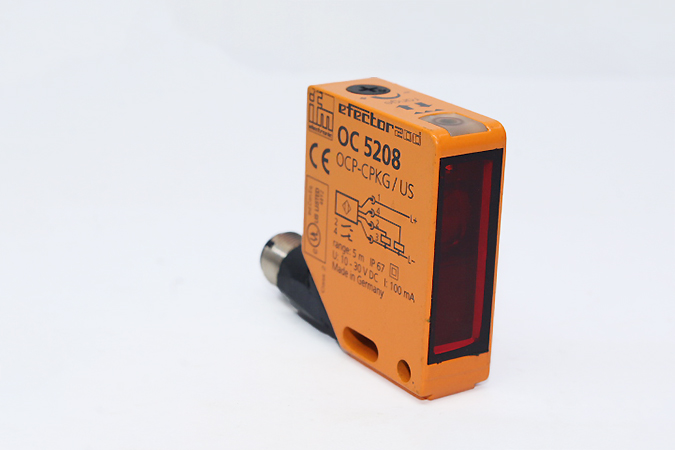

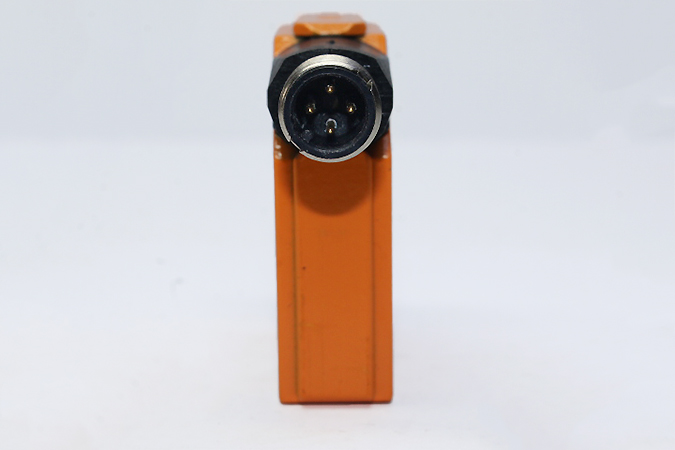

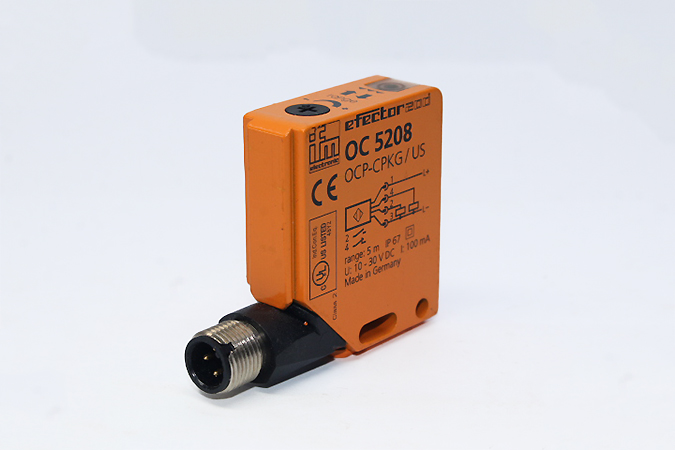

IFM OC5208 Retro-reflective sensor OCP-CPKG/US
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIFM OC5208 Retro-reflective sensor OCP-CPKG/US
- SKU050663
95 $
1 in stock
Description
Manufacturer: IFM
Type: Retro-reflective laser sensor
Model: OC5208
Part No.: OCP-CPKG/US
Operating voltage [V]: 10…30 DC
Current consumption [mA]: < 30
Protection class: II
Reverse polarity protection: yes
Type of light: red light
Wave length [nm]: 660
Electrical design: PNP
Output function: complementary
Max. voltage drop switching output DC [V]: 2.9
Permanent current rating of switching output DC [mA]: 100
Switching frequency DC [Hz]: 1500
Short-circuit protection: yes
Type of short-circuit protection: pulsed
Overload protection: yes
Range [m]: < 5
Range adjustable: yes
Max. light spot diameter [mm]: 130
Light spot dimensions refer to: at maximum range
Polarisation filter available: yes
Ambient temperature [°C]: -40…60
Protection: IP 67
