Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | OAT-FKOA |
| Sensor Type | Diffuse reflection sensor |
| Sensing Range | 5-1500mm |
| Switching Type | NO/NC |
| Output Type | PNP |
| Condition |

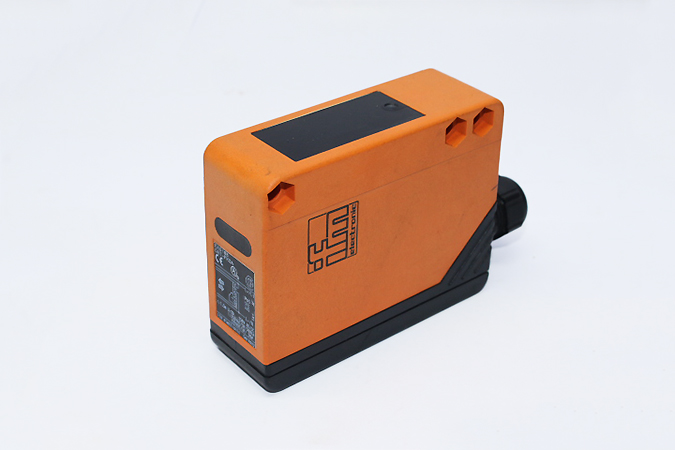

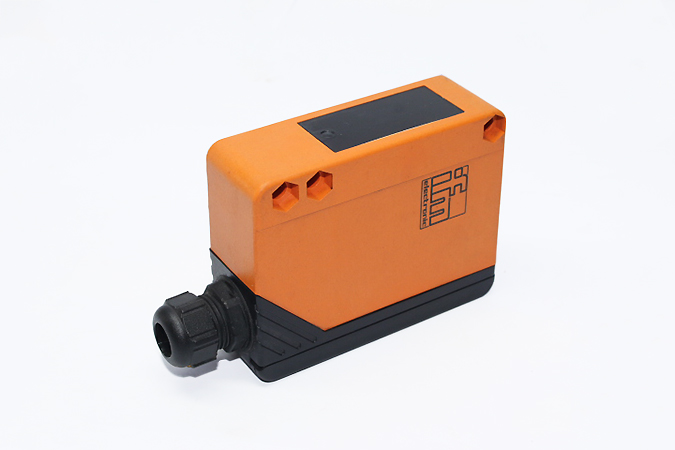

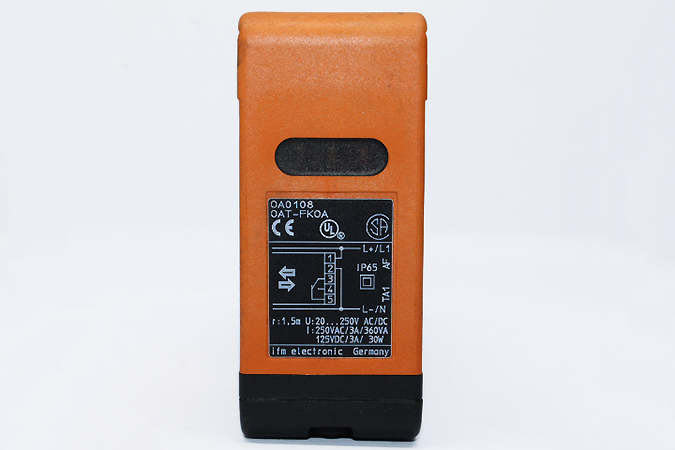

IFM OA0108 Diffuse reflection sensor OAT-FKOA
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelOA0108
- SKU050656
105 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: IFM
Type:Diffuse reflection sensor
Model: OA0108
Part No.: OAT-FKOA
Frequency AC [Hz]: 47…63
Operating voltage [V]: 20…250 AC/DC
Max. power consumption [VA]: 2
Protection class: II
Reverse polarity protection: no
Type of light: infrared light
Wave length [nm]: 880
Electrical design: relay
Output function: light-on/dark-on mode; (programmable)
Contact rating: 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
Switching frequency AC [Hz]: 10
Switching frequency DC [Hz]: 10
Short-circuit proof: no
Overload protection: no
Range [mm]: 5…1500; (white paper 200 x 200 mm)
Range adjustable: yes
Max. light spot diameter [mm]: 370
Light spot dimensions refer to: at maximum range
Ambient temperature [°C]: -25…60
Protection: IP 65
