Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Condition |

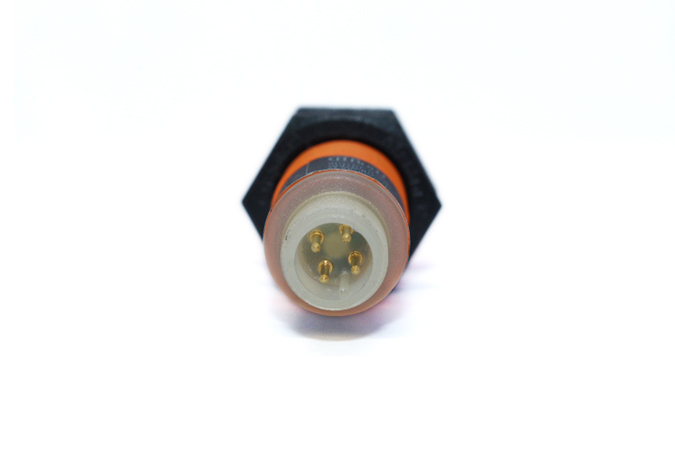

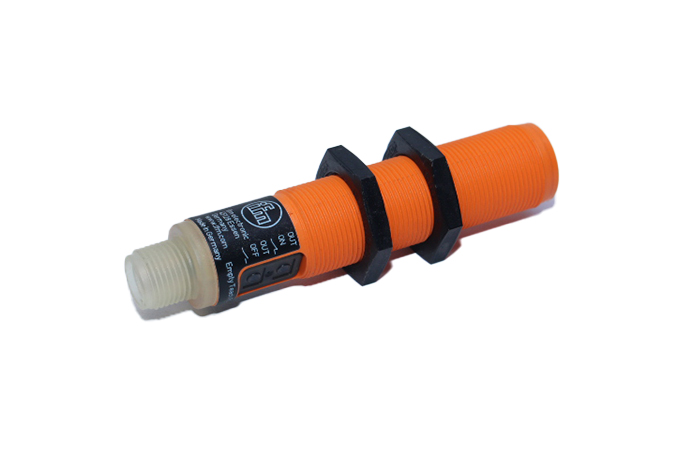

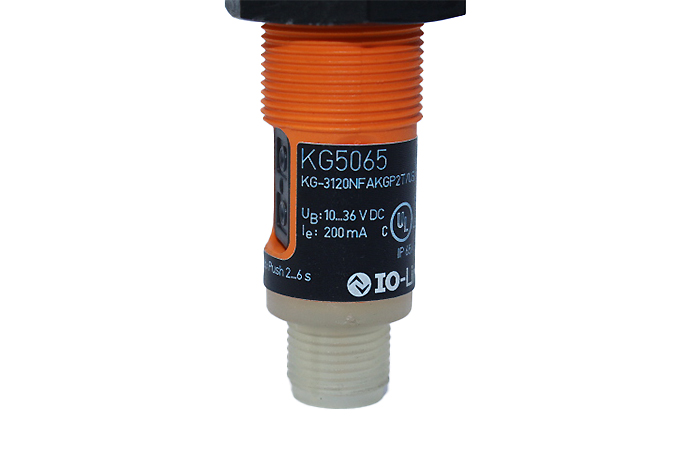

IFM KG5065 Capacitive sensor KG-3120NFAKGP2T/US
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIFM KG5065 Capacitive sensor KG-3120NFAKGP2T/US
- SKU054836
32 $
1 in stock
Description
Manufacturer: IFM
Model: KG5065
Type: Capacitive sensor
Part No.: KG-3120NFAKGP2T/US
Electrical design: PNP/NPN; (automatic load detection PNP/NPN:; when using a resistive load < 20 kΩ)
Output function: normally open / normally closed; (selectable)
Sensing range [mm]: 12
Communication interface: IO-Link
Housing: threaded type
Dimensions [mm]: M18 x 1 / L = 87
Operating voltage [V]: 10…36 DC
Current consumption [mA]: < 20
Protection class: II
Reverse polarity protection: yes
Measuring principle: capacitive
Ambient temperature [°C]: -25…80
Note on ambient temperature: temperature of the sensing face: -25…110 °C
Protection: IP 65; IP 67
