Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | IIK3022-BPKG/US-104 |
| Condition |

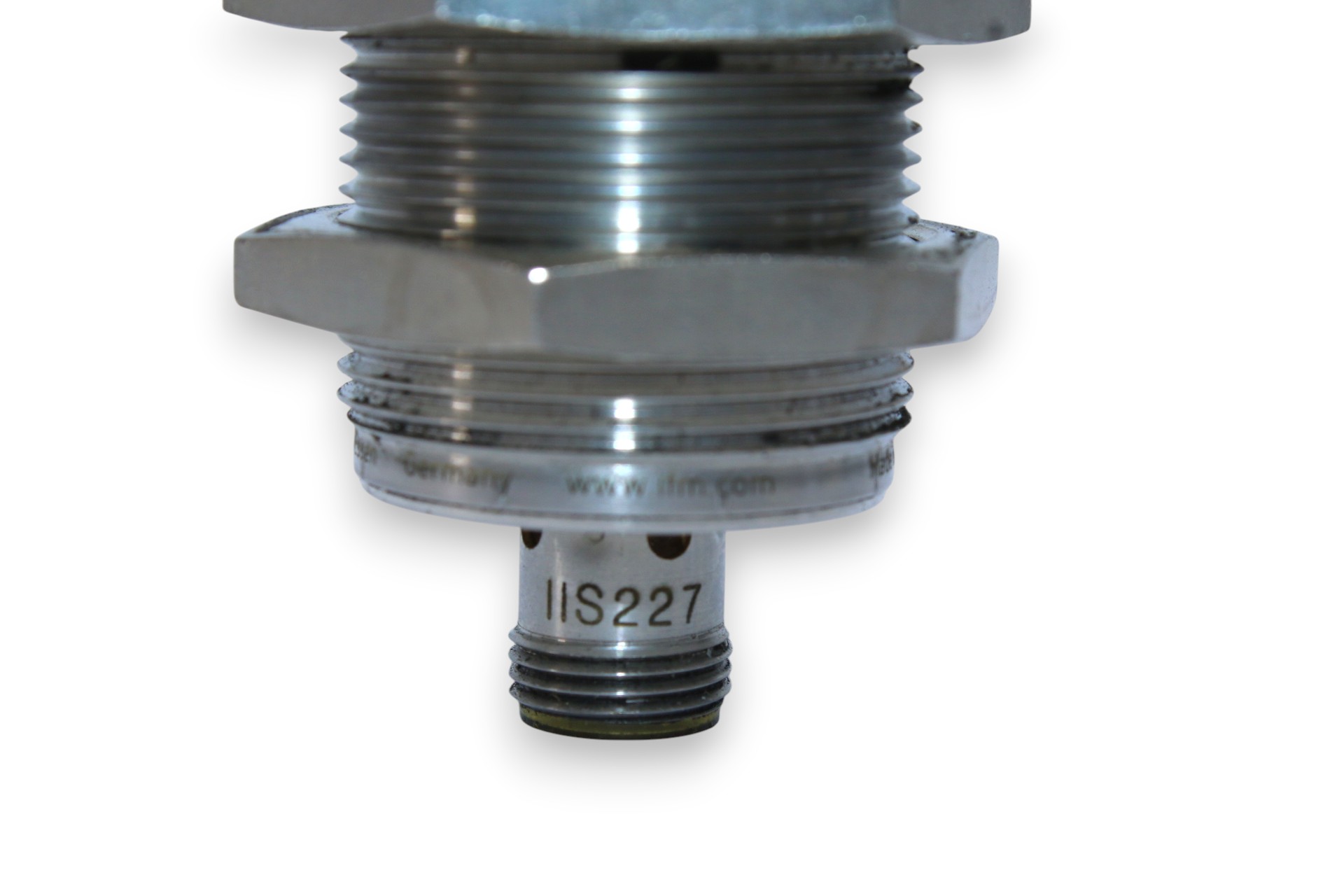

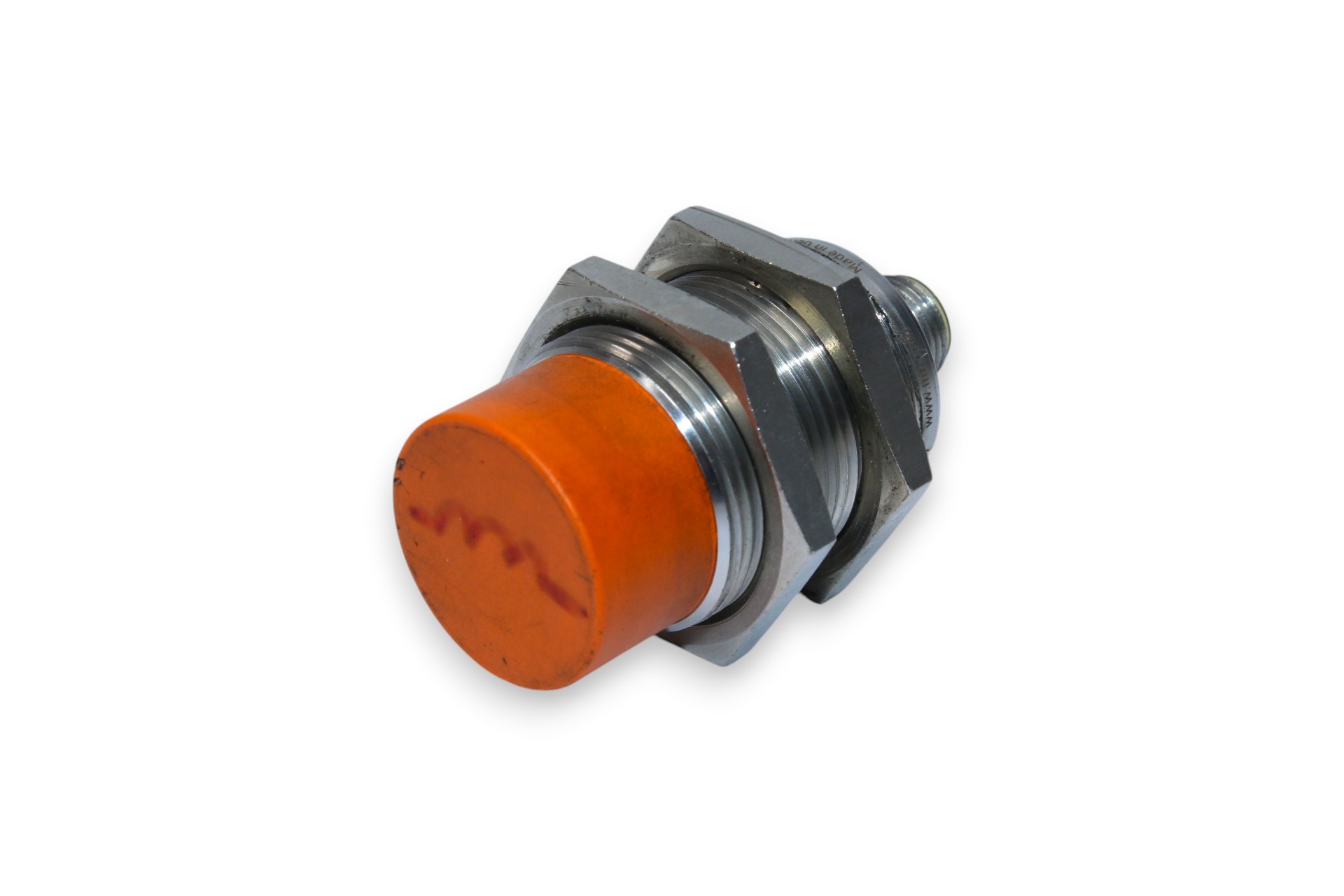

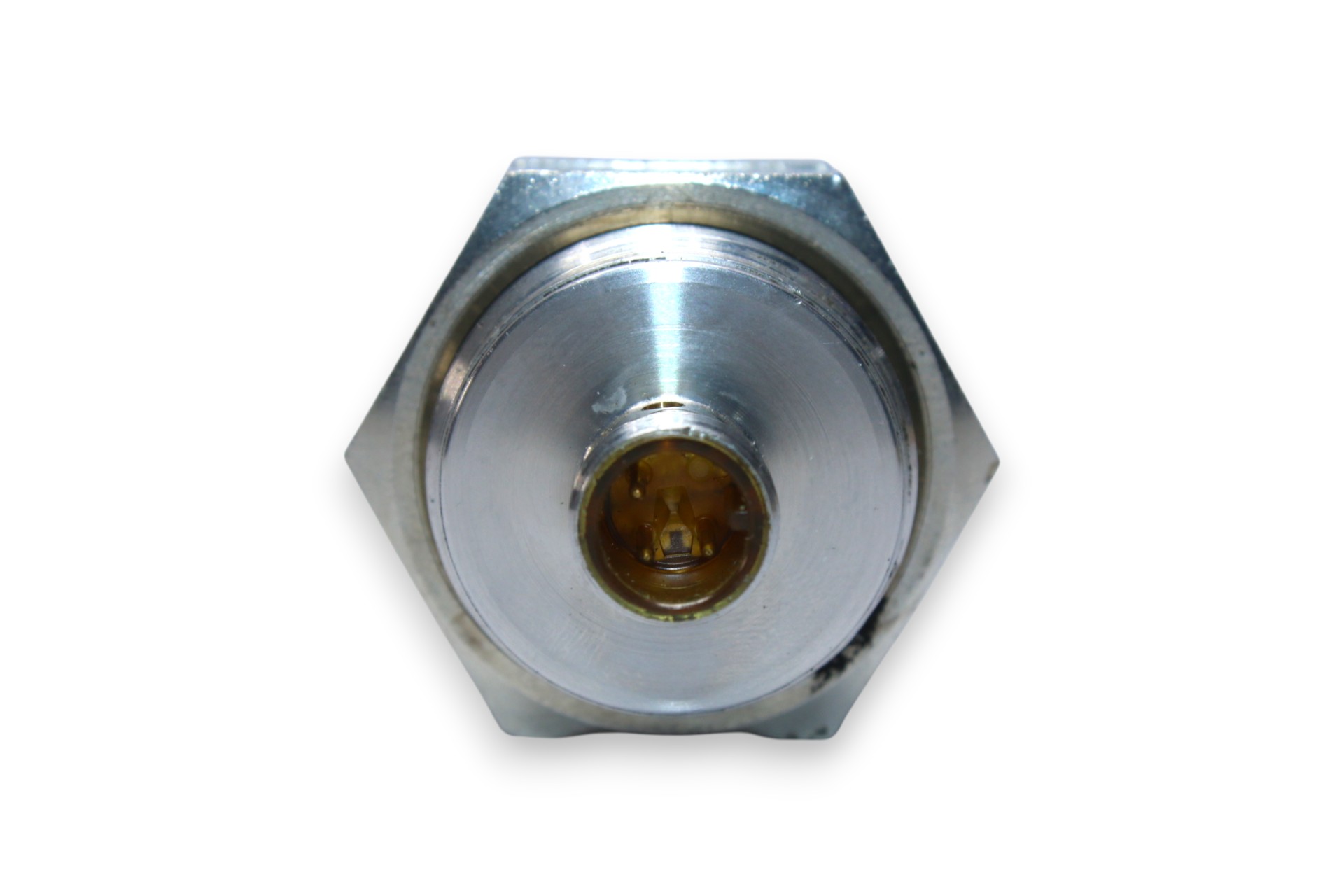

IFM IIS227 Inductive Sensor IIK3022-BPKG/US-104
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIIS227
- SKU066582
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: IFM
Type: Inductive Sensor
Model: IIS227
Part No.: IIK3022-BPKG/US-104
ELECTRICAL DESIGN: PNP
OUTPUT FUNCTION: Normally Open
SENSING RANGE: 22 MM
HOUSING: Threaded Type
DIMENSIONS: M30 x 1.5 / L = 60 MM
SPECIAL FEATURE: Gold-plated contacts; Increased sensing range
APPLICATION: Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation
OPERATING VOLTAGE: 10…30 V DC
CURRENT CONSUMPTION: < 10 mA
PROTECTION CLASS: III
REVERSE POLARITY PROTECTION: Yes
MAX. VOLTAGE DROP (DC): 2.5 V
PERMANENT CURRENT RATING (DC): 100 mA
SWITCHING FREQUENCY (DC): 100 Hz
SHORT-CIRCUIT PROTECTION: Yes
OVERLOAD PROTECTION: Yes
REAL SENSING RANGE (Sr): 22 ± 10 %
OPERATING DISTANCE: 0…17.82 MM
INCREASED SENSING RANGE: Yes
CORRECTION FACTOR: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminium: 0.4 / Copper: 0.3
HYSTERESIS: 3…15 % of Sr
SWITCH POINT DRIFT: -10…10 % of Sr
AMBIENT TEMPERATURE: -40…85 °C
