Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | " IIA3015-BPKG/V4A/US-104 " |
| Condition |

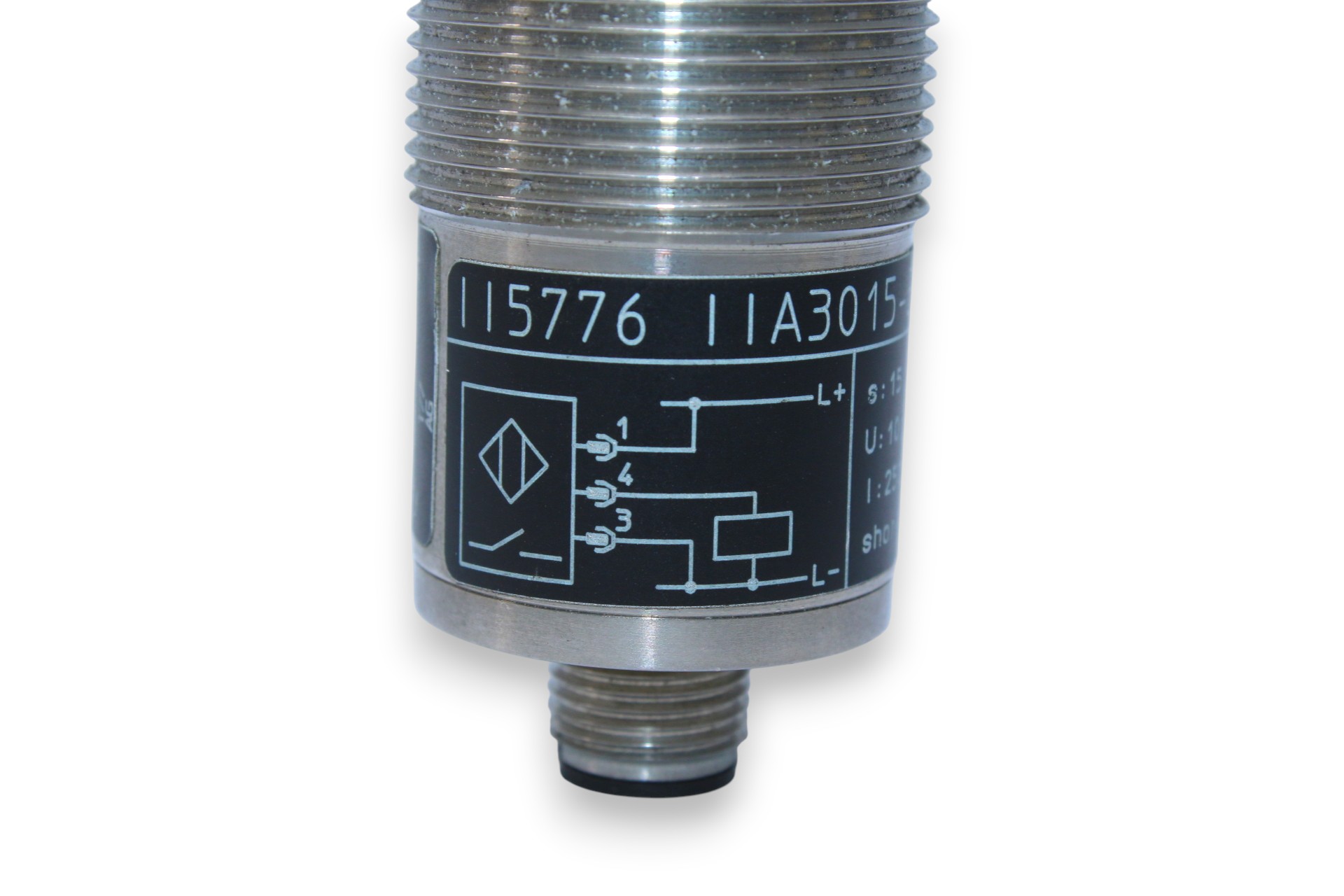

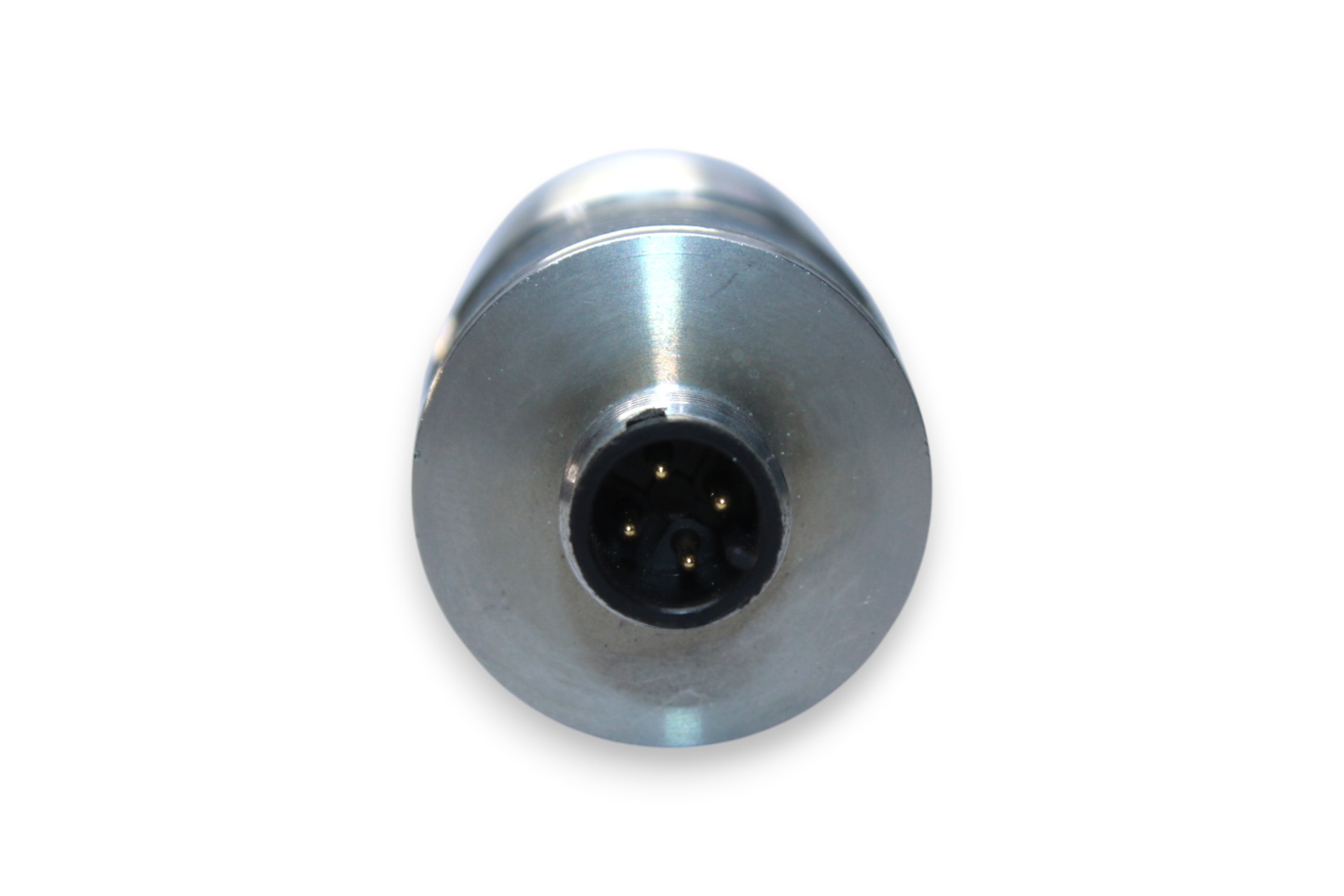

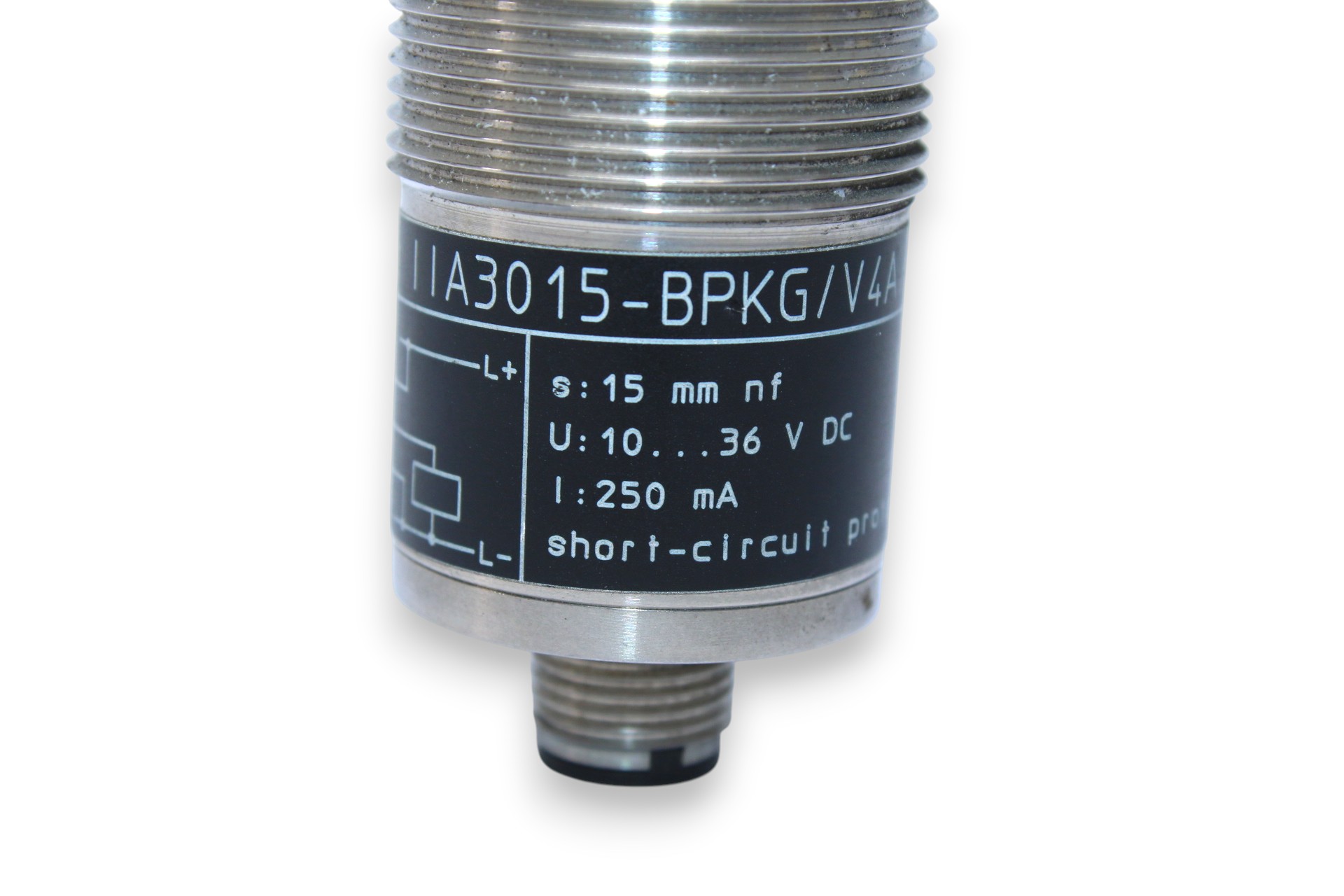

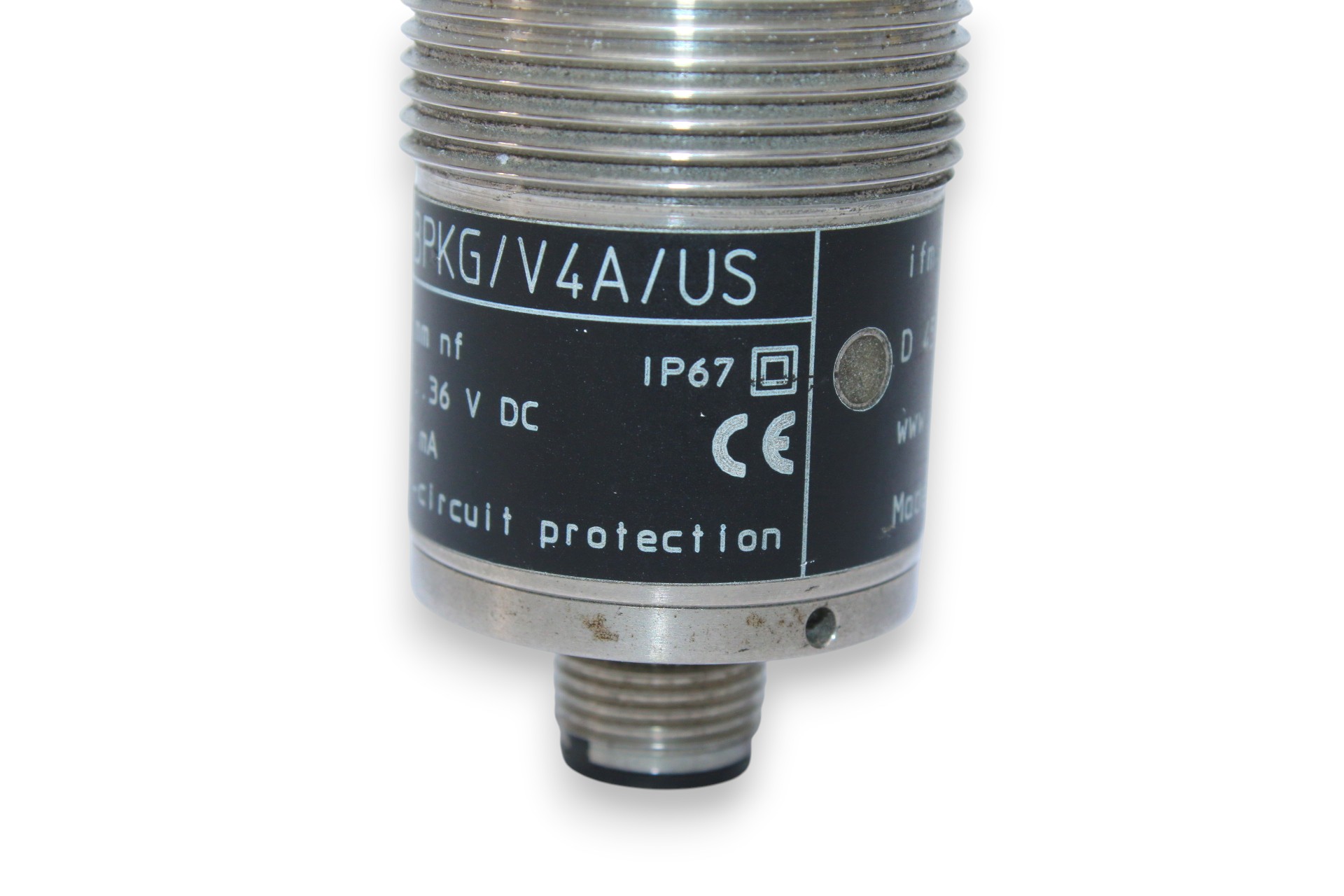

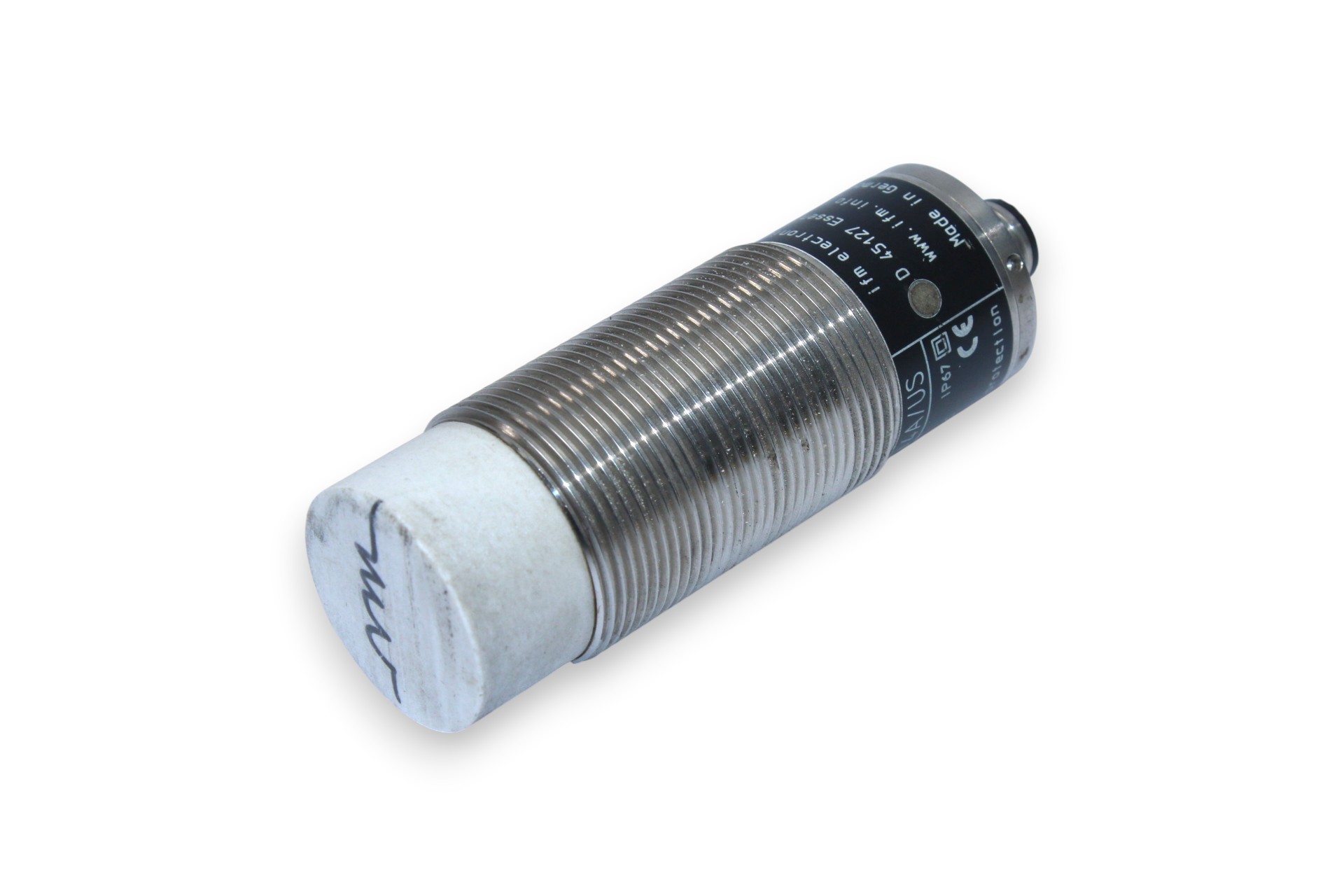

IFM II5776 Inductive Sensor ” IIA3015-BPKG/V4A/US-104 “
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelII5776
- SKU066578
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: IFM Electronic
Type: Inductive Sensor
Model: II5776
Part No.: IIA3015-BPKG/V4A/US-104
ELECTRICAL DESIGN: PNP
OUTPUT FUNCTION: Normally Open
SENSING RANGE: 15 MM
HOUSING: Threaded Type
DIMENSIONS: M30 x 1.5 / L = 75 MM
SPECIAL FEATURE: Gold-Plated Contacts
APPLICATION: Industrial Applications / Factory Automation
OPERATING VOLTAGE: 10…30 V DC
CURRENT CONSUMPTION: 10 mA
PROTECTION CLASS: II
REVERSE POLARITY PROTECTION: Yes
MAX. VOLTAGE DROP (DC): 2.5 V
PERMANENT CURRENT RATING: 200 mA
SWITCHING FREQUENCY: 200 Hz
SHORT-CIRCUIT PROTECTION: Yes (Pulsed)
OVERLOAD PROTECTION: Yes
REAL SENSING RANGE (Sr): 15 ± 10 % MM
OPERATING DISTANCE: 0…12.15 MM
CORRECTION FACTOR: Steel: 1 / Stainless Steel: 0.7 / Brass: 0.5 / Aluminium: 0.4 / Copper: 0.3
HYSTERESIS: 1…20 % of Sr
SWITCH POINT DRIFT: -10…10 % of Sr
AMBIENT TEMPERATURE: -25…80 °C
PROTECTION RATING: IP67
MOUNTING: Non-Flush Mountable
THREAD DESIGNATION: M30 x 1.5
TIGHTENING TORQUE: 80 Nm
