Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | IGK3008-BPKG/M/US-104-DPS |
| Sensor Type | Inductive sensor |
| Sensing Range | 8 mm |
| Diameter | M18 |
| Switching Type | NO |
| Output Type | PNP |
| Condition |

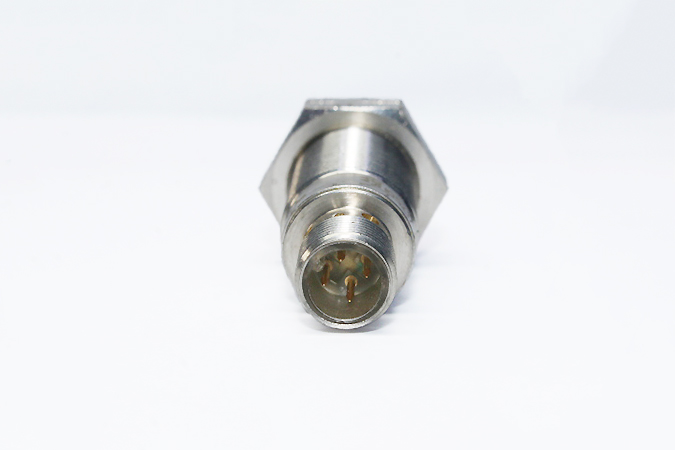

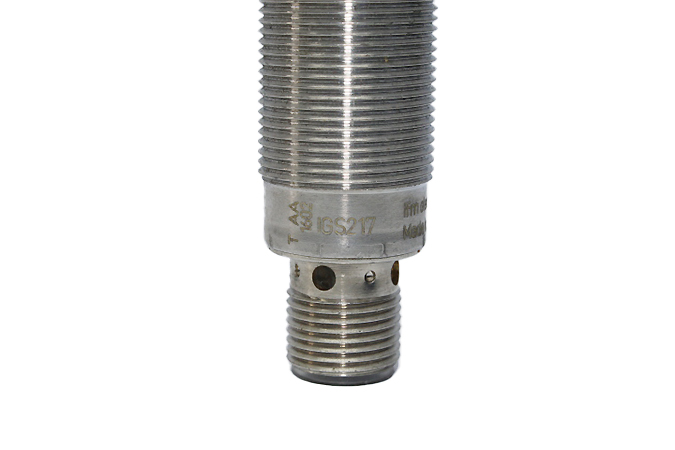

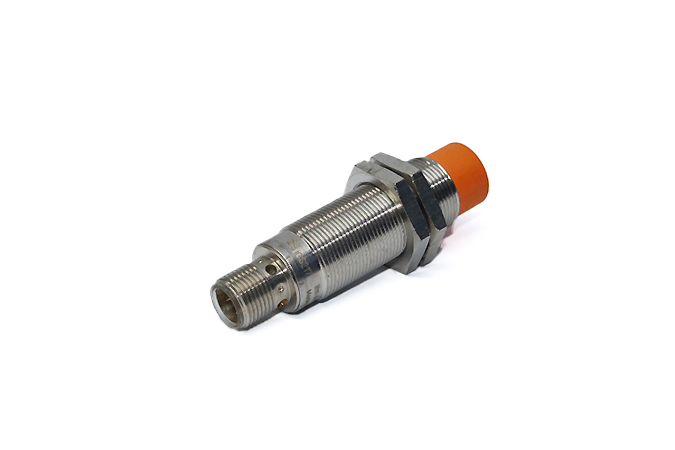

IFM IGS217 Inductive sensor IGK3008-BPKG/M/US-104-DPS
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIGS217
- SKU050634
40 $
1 in stock
Description
Manufacturer: IFM
Type: Inductive sensor
Model: IGS217
Part No.: IGK3008-BPKG/M/US-104-DPS
Electrical design: PNP
Output function: normally open
Sensing range [mm]: 8
Housing: threaded type
Dimensions [mm]: M18 x 1 / L = 70
Operating voltage [V]: 10…30 DC
Current consumption [mA]: < 10
Protection class: II
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 100
Switching frequency DC [Hz]: 300
Short-circuit protection: yes
Type of short-circuit protection: pulsed
Overload protection: yes
Ambient temperature [°C]: -25…70
Protection: IP 67
