Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Condition |

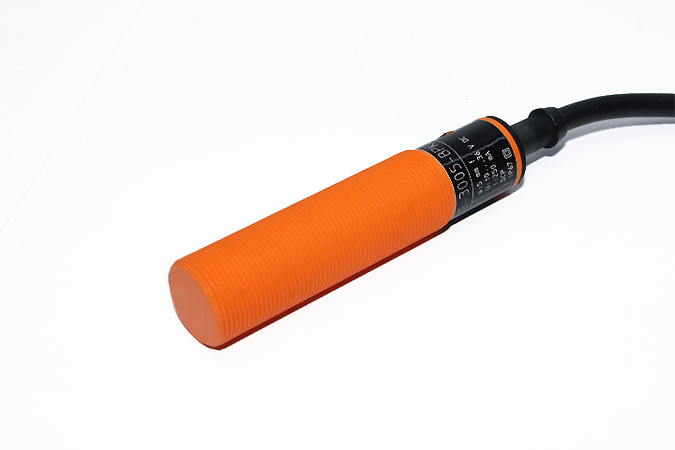

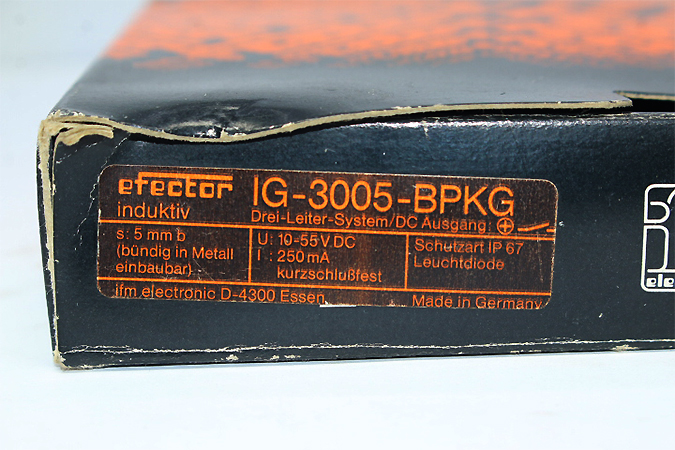

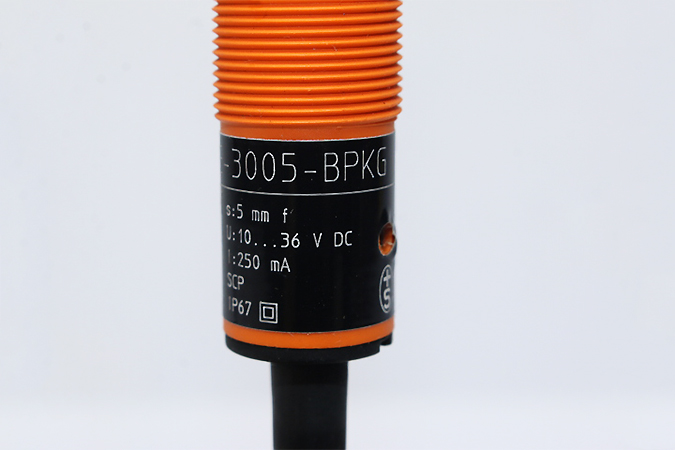

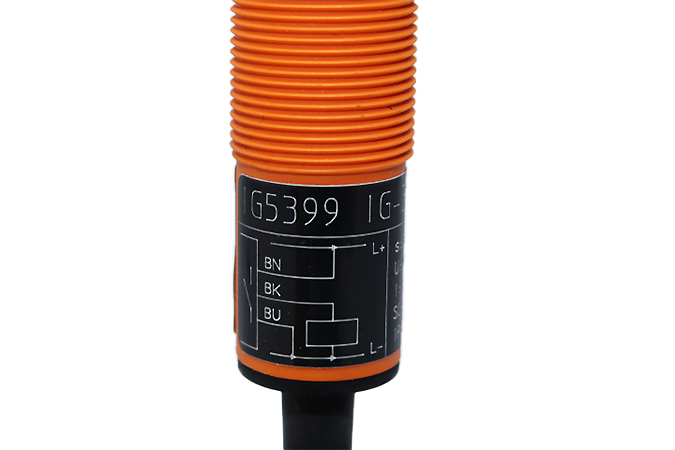

IFM IG5399 Inductive sensor IG-3005-BPKG
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIFM IG5399 Inductive sensor IG-3005-BPKG
- SKU050659
31 $
2 in stock
Description
Manufacturer: IFM Type: Inductive sensor Model: IG5399 Part No.: IG-3005-BPKG Electrical design: PNP Output function: normally open Sensing range [mm]: 5 Housing: threaded type Dimensions [mm]: M18 x 1 / L = 80 Operating voltage [V]: 10...36 DC Current consumption [mA]: 15; (24 V) Protection class: II Reverse polarity protection: yes Electrical design: PNP Output function: normally open Max. voltage drop switching output DC [V]: 2.5 Permanent current rating of switching output DC [mA]: 250 Switching frequency DC [Hz]: 500 Short-circuit protection: yes Type of short-circuit protection: pulsed Overload protection: yes Ambient temperature [°C]: -25...80 Protection: IP 67
