Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | IGA3008-ANKG |
| Sensor Type | Inductive sensor |
| Sensing Range | 8 mm |
| Diameter | M18 |
| Switching Type | NO |
| Output Type | NPN |
| Condition |

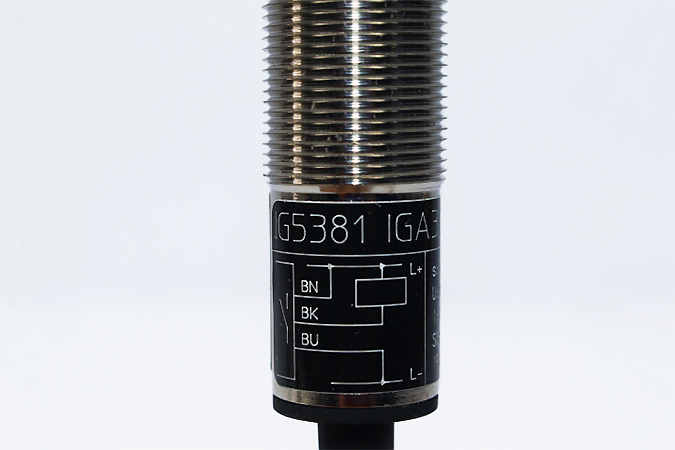

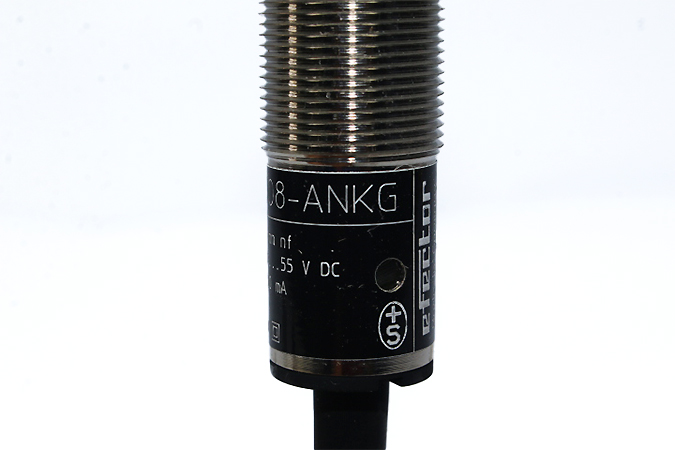

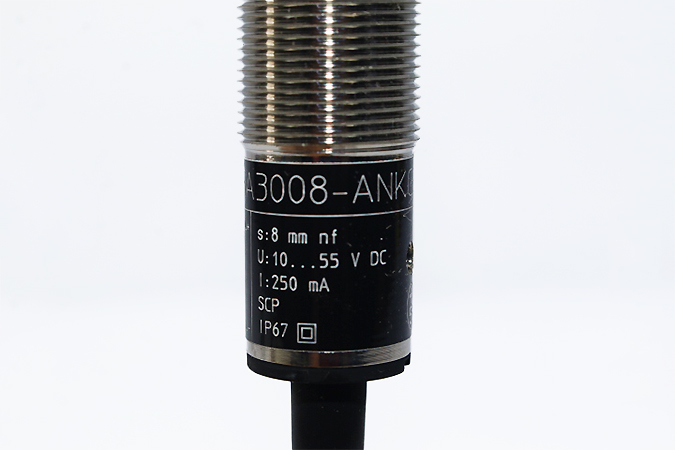

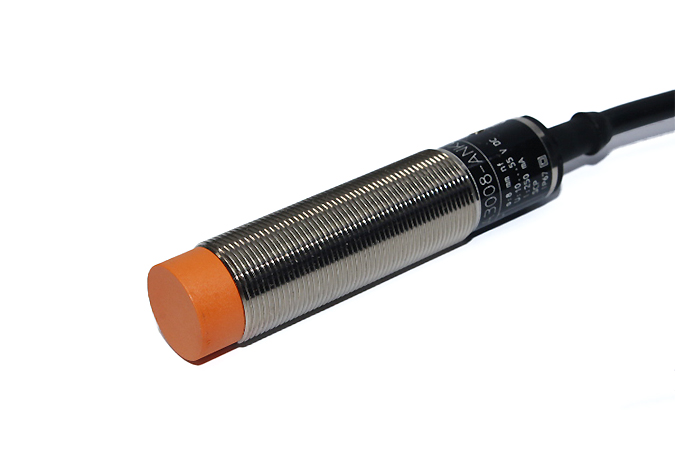

IFM IG5381 Inductive sensor IGA3008-ANKG
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIG5381
- SKU050651
68 $
6 in stock
Description
Manufacturer: IFM
Type: Inductive sensor
Model: IG5381
Part No.: IGA3008-ANKG
Electrical design: NPN
Output function: normally open
Sensing range [mm]: 8
Housing: threaded type
Dimensions [mm]: M18 x 1 / L = 80
Operating voltage [V]: 10…36 DC
Current consumption [mA]: 15; (24 V)
Protection class: II
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 250
Switching frequency DC [Hz]: 300
Short-circuit protection: yes
Type of short-circuit protection: pulsed
Overload protection: yes
Ambient temperature [°C]: -25…80
Protection: IP 67
