Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | IG-2008-BBOA |
| Sensor Type | Inductive sensor |
| Sensing Range | 8 mm |
| Diameter | M18 |
| Switching Type | NC |
| Output Type | PNP |
| Condition |

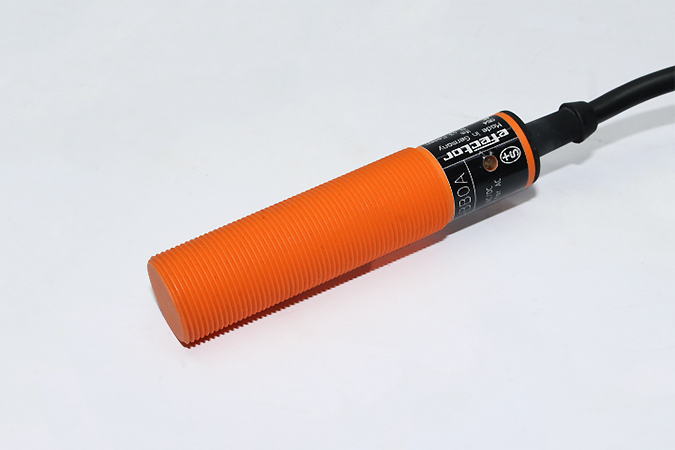

IFM IG0092 Inductive sensor IG-2008-BBOA
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIG0092
- SKU050635
74 $
2 in stock
Description
Manufacturer: IFM
Type: Inductive sensor
Model: IG0092
Part No.: IG-2008-BBOA
Output function: normally closed
Sensing range [mm]: 8
Housing: threaded type
Dimensions [mm]: M18 x 1 / L = 80
Operating voltage [V]: 20…250 AC/DC
Protection class: II
Reverse polarity protection: no
Max. voltage drop switching output DC [V]: 6
Max. voltage drop switching output AC [V]: 6.5
Minimum load current [mA]: 5
Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]: 250; (350 at up to -50 °C)
Permanent current rating of switching output DC [mA]: 100
Short-time current rating of switching output [mA]: 2200; (20 ms / 0.5 Hz)
Switching frequency AC [Hz]: 25
Switching frequency DC [Hz]: 50
Short-circuit protection: no
Overload protection: no
Ambient temperature [°C]: -25…80
Protection: IP 67
