Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | IFA3004-APKG/US |
| Sensor Type | Inductive sensor |
| Sensing Range | 4 mm |
| Diameter | M12 |
| Switching Type | NC |
| Output Type | PNP |
| Condition |

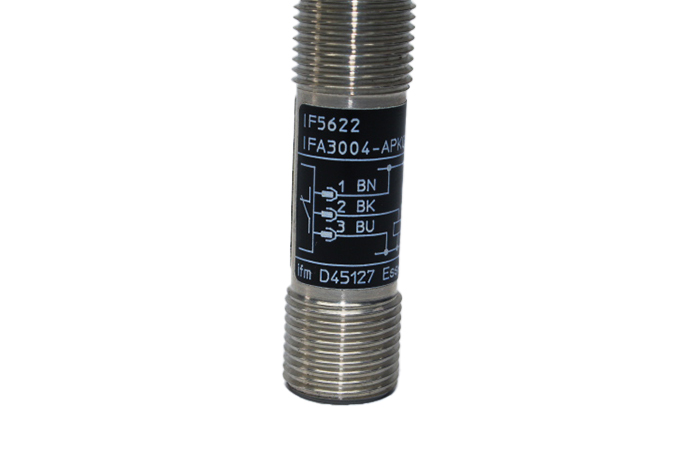

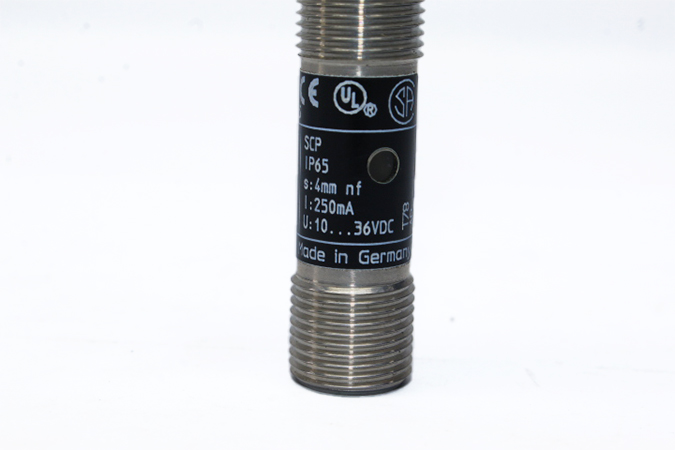

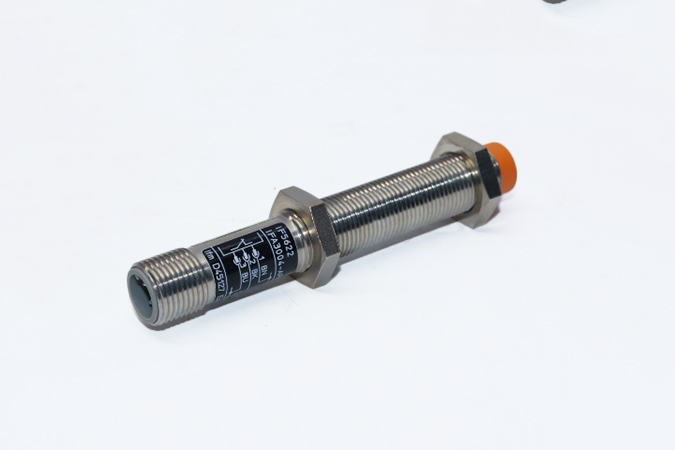

IFM IF5622 Inductive sensor IFA3004-APKG/US
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIF5622
- SKU050628
21 $
2 in stock
Description
Manufacturer: IFM
Type: Inductive sensor
Model: IFA3004-APKG/US-104
Part No.: IF5622
Electrical design: PNP
Output function: normally closed
Sensing range [mm]: 4
Housing: threaded type
Dimensions [mm]: M12 x 1 / L = 80
Operating voltage [V]: 10…30 DC
Current consumption [mA]: < 15
Protection class: II
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 400
Ambient temperature [°C]: -25…80
Protection: IP 67

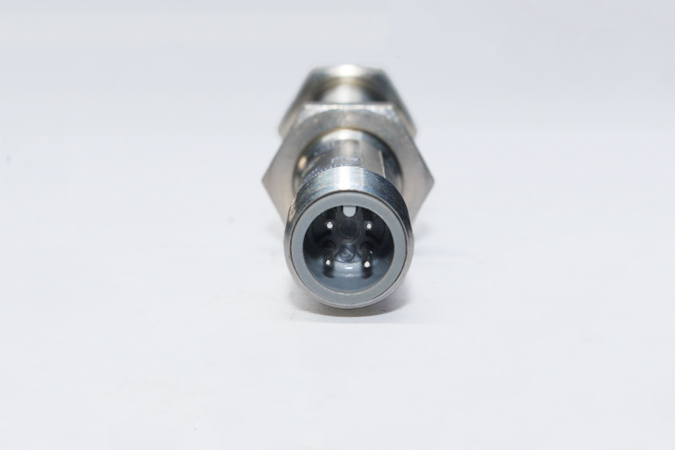

Connection: 4-PIN
