Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | IEA3001-BPKG/V2A/US-104-DPS |
| Sensor Type | Inductive sensor |
| Sensing Range | 1 mm |
| Diameter | M8 |
| Switching Type | NO |
| Output Type | PNP |
| Condition |

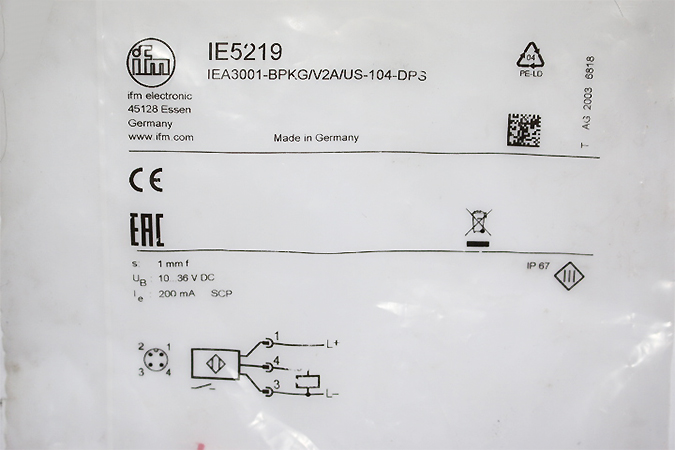

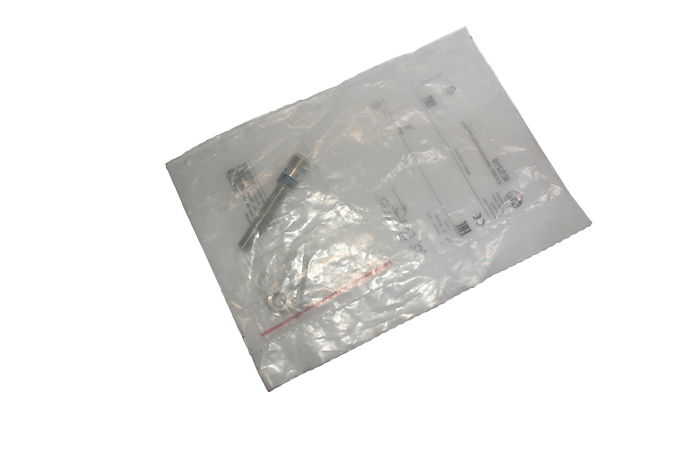

IFM IE5219 Inductive sensor IEA3001-BPKG/V2A/US-104-DPS
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIE5219
- SKU050632
21 $
6 in stock
Description
Manufacturer: IFM
Type: Inductive sensor
Model: IE5219
Part No.: IEA3001-BPKG/V2A/US-104-DPS
Electrical design: PNP
Output function: normally open
Sensing range [mm]: 1
Housing: threaded type
Dimensions [mm]: M8 x 1 / L = 60
Operating voltage [V]: 10…30 DC
Current consumption [mA]: < 10
Protection class: III
Reverse polarity protection: yes
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 100
Switching frequency DC [Hz]: 2000
Short-circuit protection: yes
Overload protection: yes
Ambient temperature [°C]: -25…80
Protection: IP 67
