Specifications
| Weight | 0.200 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Condition |

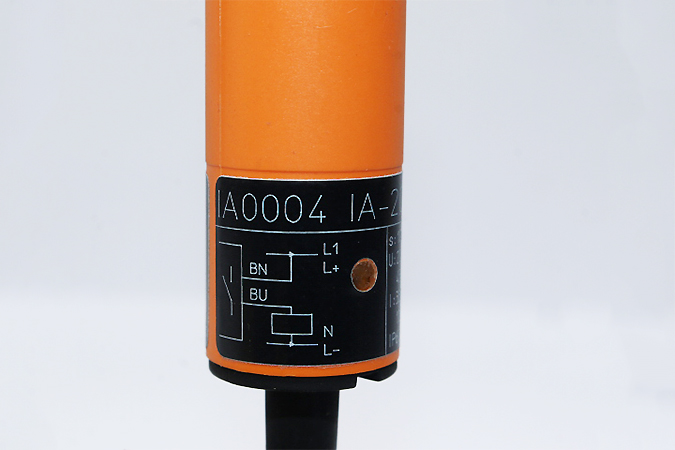

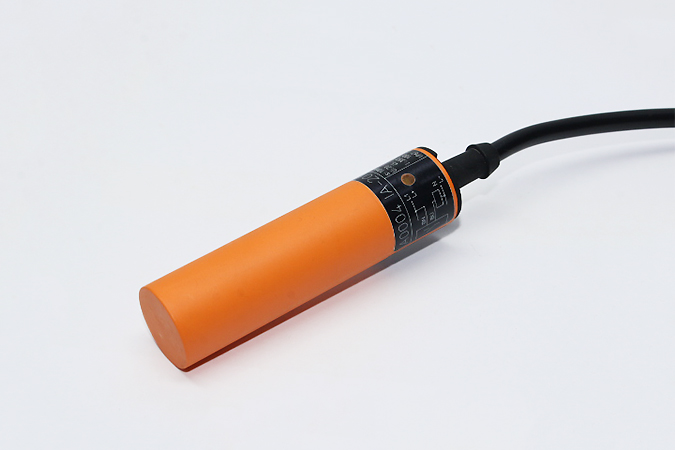

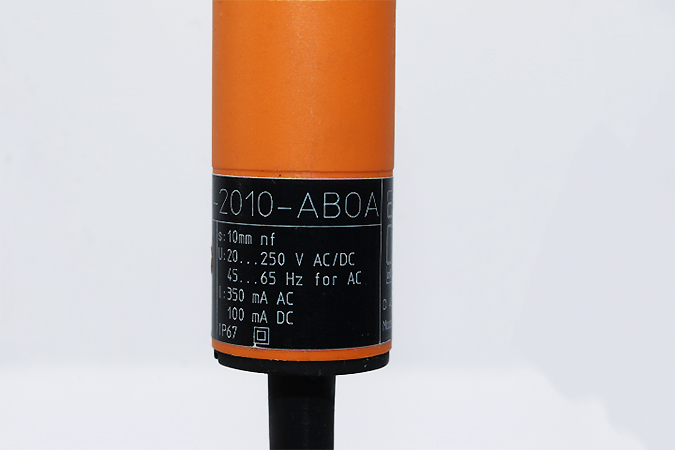

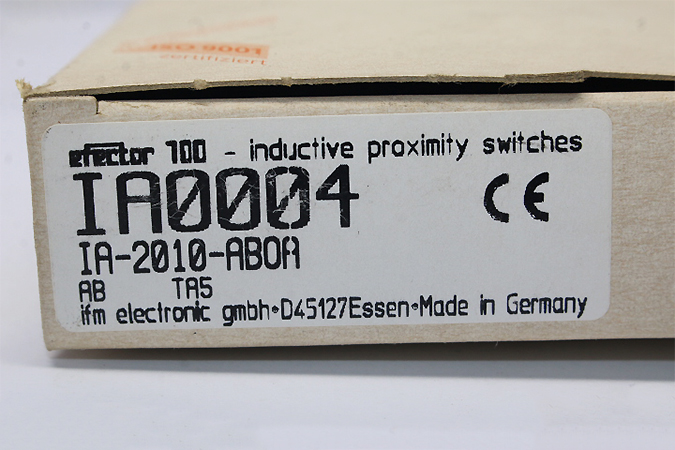

IFM IA0004 Inductive sensor IA-2010-ABOA
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIFM IA0004 Inductive sensor IA-2010-ABOA
- SKU050669
32 $
2 in stock
Description
Manufacturer: IFM Type: Inductive sensor Model: IA0004 Part No.: IA-2010-ABOA Output function: normally open Sensing range [mm]: 10 Housing: cylindrical Dimensions [mm]: Ø 20 / L = 77 Operating voltage [V]: 20...250 AC/DC Protection class: II Reverse polarity protection: no Output function: normally open Max. voltage drop switching output DC [V]: 6 Max. voltage drop switching output AC [V]: 6.5 Minimum load current [mA]: 5 Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) Permanent current rating of switching output AC [mA]: 250; (350 (...50 °C)) Permanent current rating of switching output DC [mA]: 100 Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz) Switching frequency AC [Hz]: 25 Switching frequency DC [Hz]: 70 Short-circuit proof: no Overload protection: no Ambient temperature [°C]: -25...80 Protection: IP 67
Product Questions (3)
What types of spare parts do you offer?
We offer a wide range of spare parts including automotive, industrial, electronic, and appliance parts, both new and used.
How can I find a specific part on your website?
You can use our search bar at the top of the page or browse through categories to find the specific part you need.
Do used parts come with a warranty?
Used parts come with 2 month warranty.
