Specifications
| Weight | 0.200 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Condition |

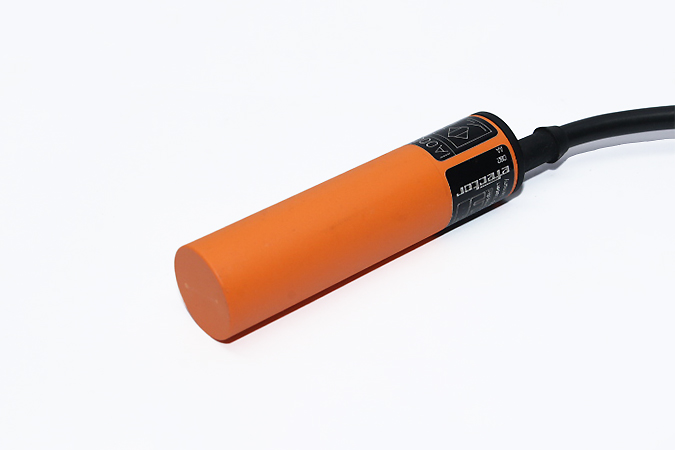

IFM IA0001 Inductive sensor IA-2010-ABOW
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelIFM IA0001 Inductive sensor IA-2010-ABOW
- SKU050671
32 $
3 in stock
Description
Manufacturer: IFM Type: Inductive sensor Model: IA0001 Part No.: IA-2010-ABOW Output function: normally open Sensing range [mm]: 10 Housing: cylindrical Dimensions [mm]: Ø 20 Frequency AC [Hz]: 47...63 Operating voltage [V]: 20...250 AC Protection class: II Reverse polarity protection: no Output function: normally open Max. voltage drop switching output AC [V]: 5.5 Minimum load current [mA]: 5 Max. leakage current [mA]: 2.5 Permanent current rating of switching output AC [mA]: 300; (500 (...50 °C)) Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz) Switching frequency AC [Hz]: 20 Short-circuit protection: no Overload protection: no Ambient temperature [°C]: -25...80 Protection: IP 67
