Specifications
| Weight | 0.6 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Condition |

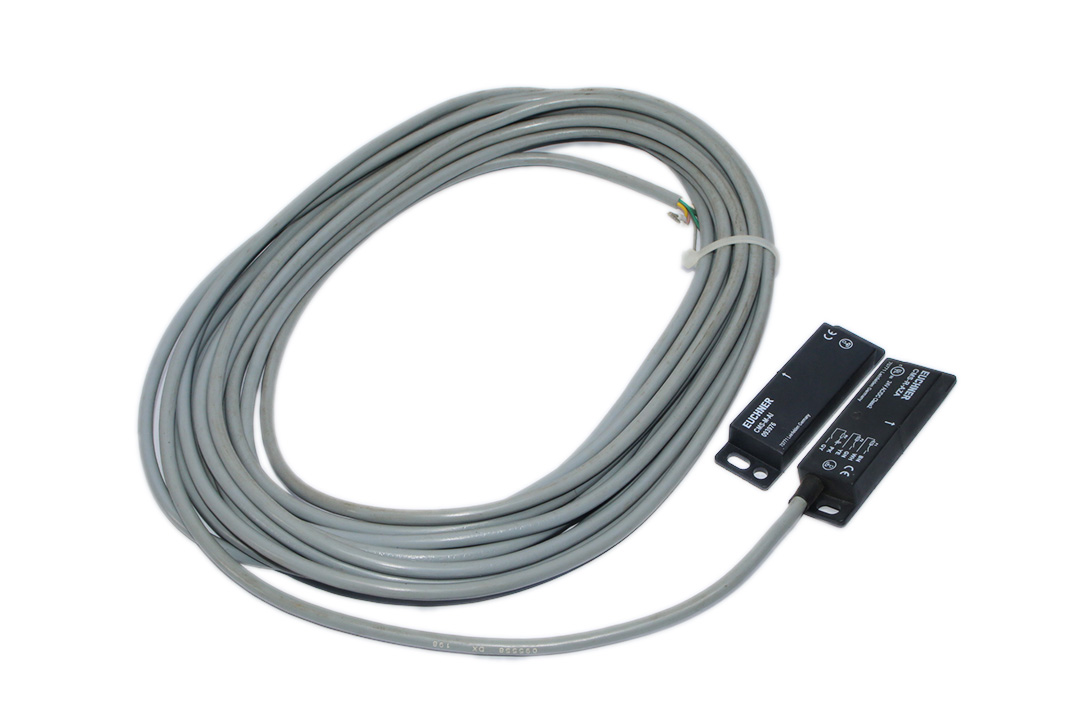

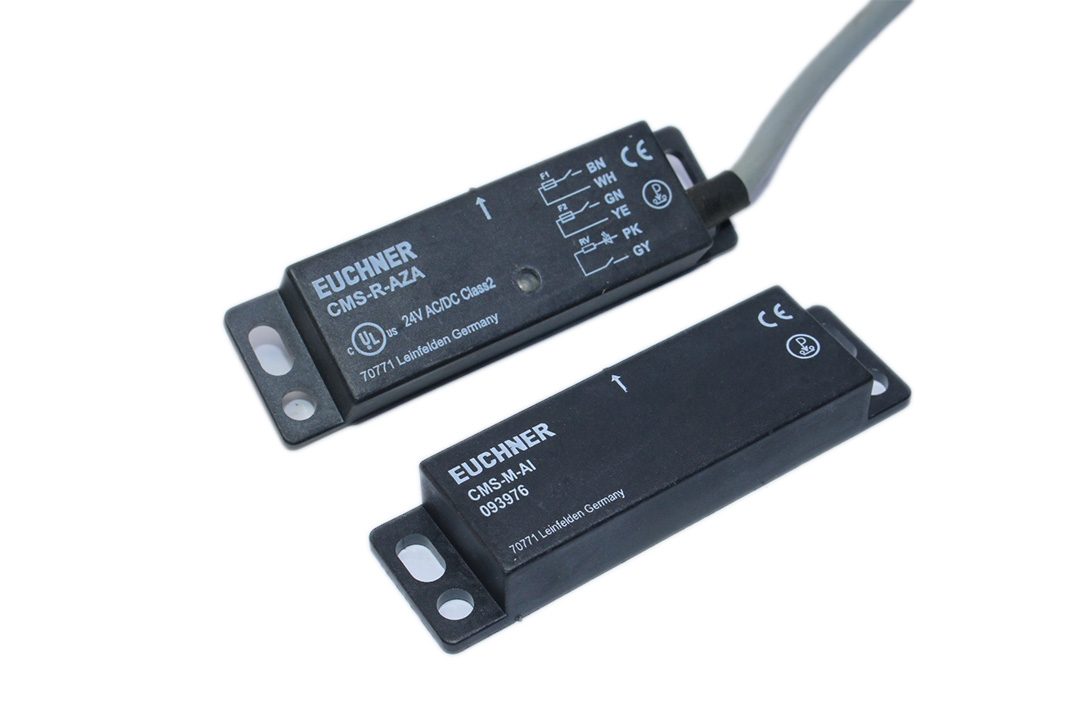

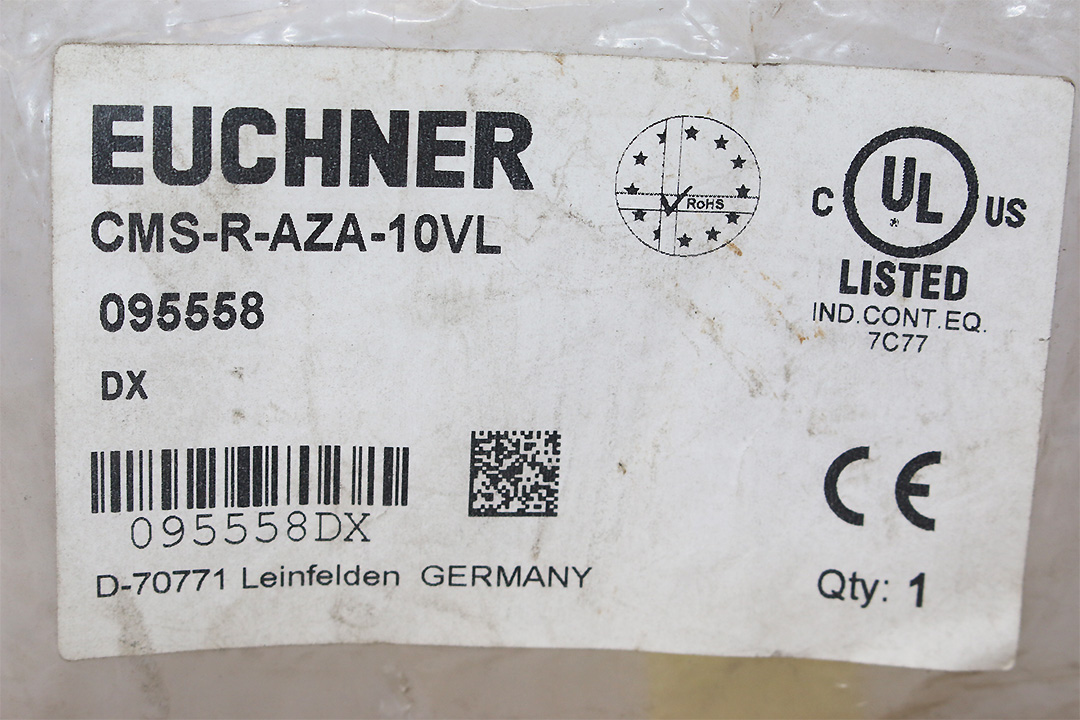

EUCHNER CMS-R-AZA-10VL Read head 095558
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelEUCHNER CMS-R-AZA-10VL Read head 095558
- SKU056726
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description

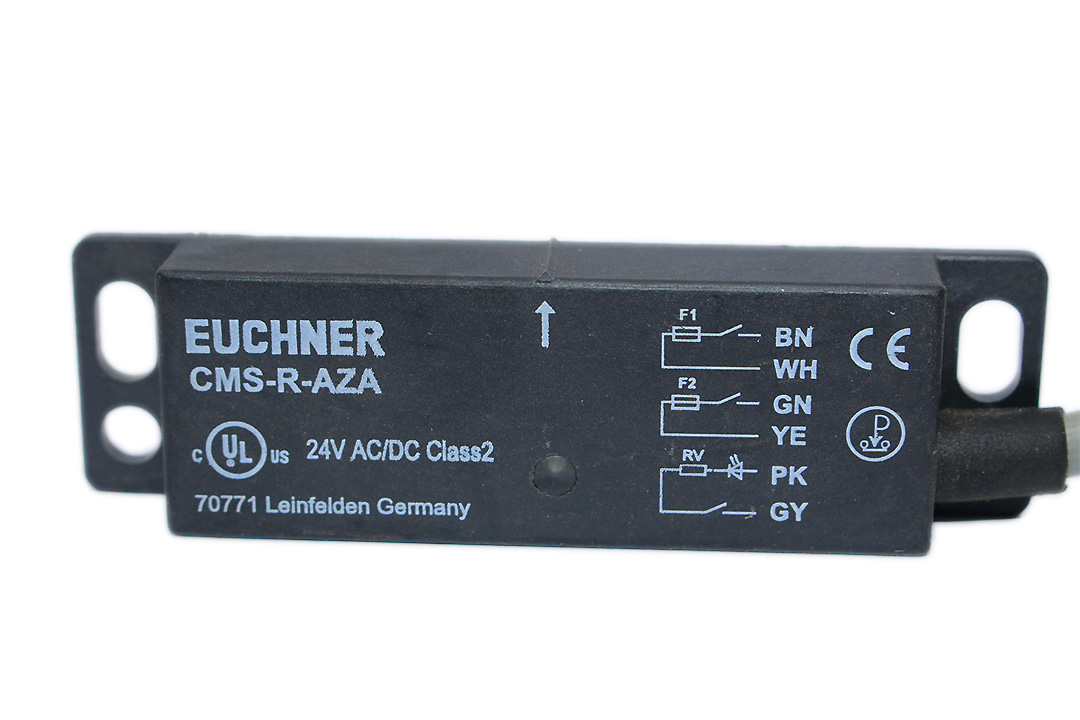

Manufacturer: EUCHNER
Type: Read head
Model: CMS-R-AZA-10VL
Part No.: 095558
Connection type: Hard-wired encapsulated cable with cable end sleeves 0.25 mm2
Number of LED displays: 1 LED contact status indication
Number of NO contacts: 2 NO contacts with fuse, 100 mA each, and 1 NO contact with LED
Tightening torque: 0.4 … 0.5 Nm
Design: A
Installation orientation: any
Cable length: 10 m
Mechanical life: 100 x 10⁶
Degree of protection: IP67
Ambient temperature: -20 … +60 °C
Material:
Cable material: PVC
Housing: Fiber glass reinforced PPS
Method of operation: magnetic, reed contact

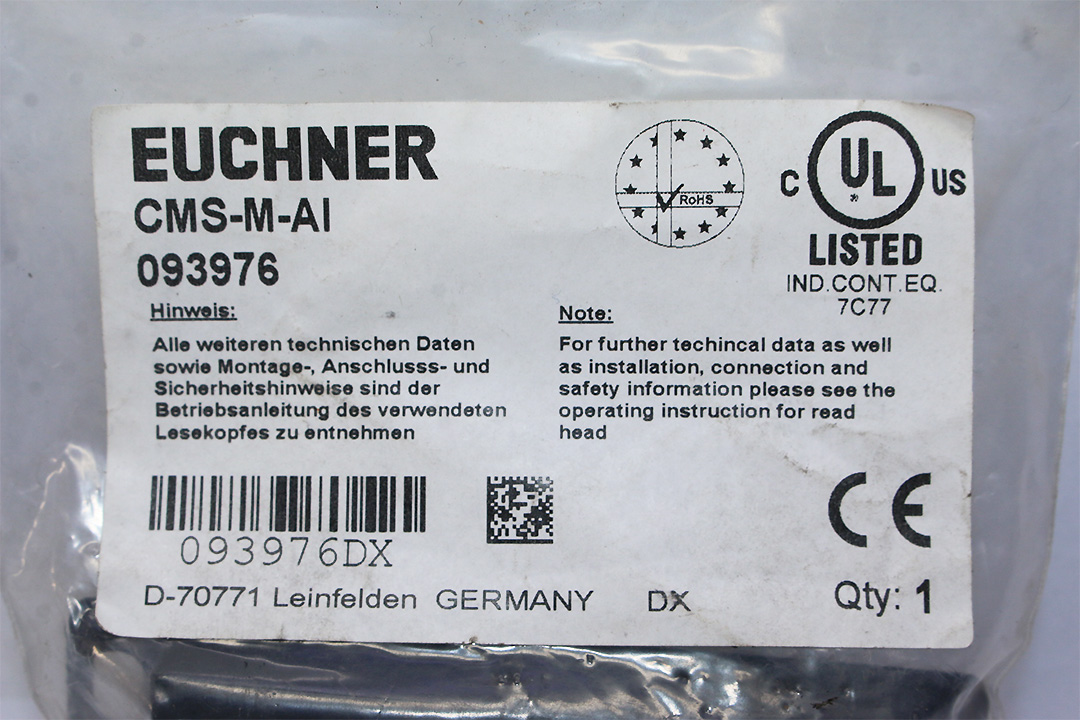

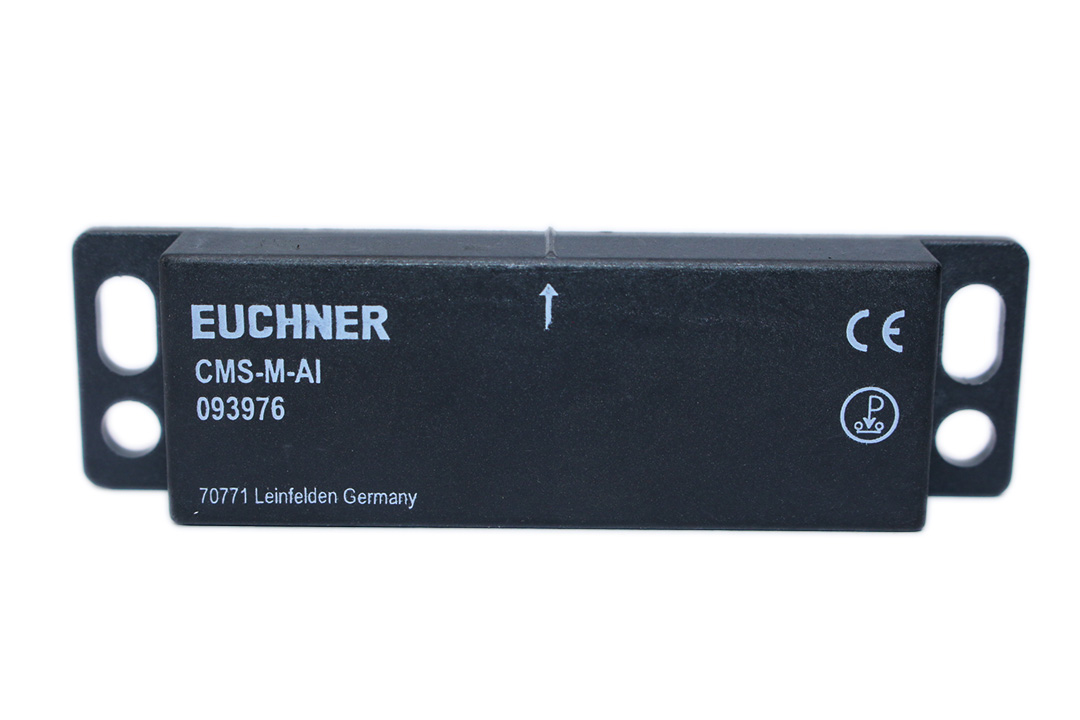

Manufacturer: EUCHNER
Type: Actuator CMS design A
Model: CMS-M-AI
Part No.: 093976
Tightening torque: 0.4 … 0.5 Nm
Design: A
Degree of protection: IP67
Ambient temperature: -20 … +60 °C
Material:
Housing: PPS
Method of operation: Magnetic
