Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | di-soric |
| Model | |
| Part Number | 201144 |
| Condition |

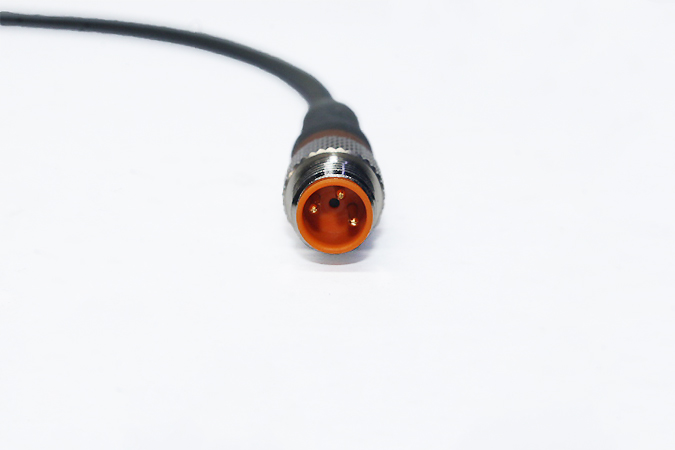

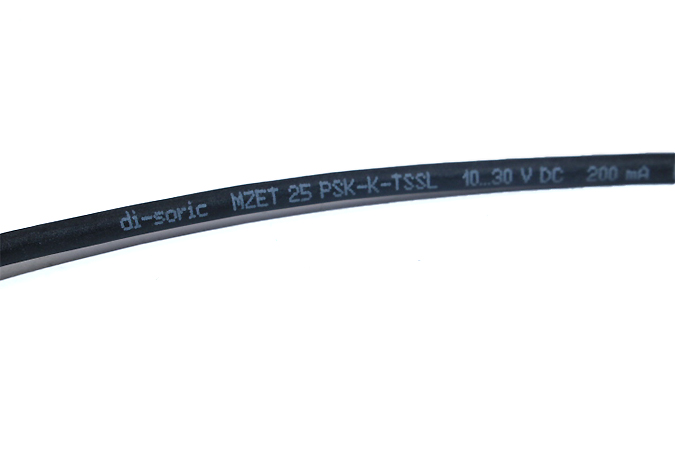

di-soric MZET 25 PSK-K-TSSL Magnetic field cylinder sensor 201144
We are NOT an authorized distributor for di-soric
- Manufacturerdi-soric
- ModelMZET 25 PSK-K-TSSL
- SKU051247
32 $
6 in stock
Description
Manufacturer: di-soric
Model: USE 46 K 1500 PSKT-TSSL
Type: Ultrasonic sensor
Part No.: 201144
Current-carrying capacity: 200 mA, short-circuit-proof, polarity-safe
Service voltage: 10 … 30 V DC
No-load current (max.): 10 mA
Insulation voltage endurance: 500 V
Switching frequency: 1000 Hz
Protection class: III, operation on protective low voltage
Display: LED yellow – Output signal
Ambient temperature during operation: -25 … +70 °C
Protection type: IP 68 (Device and cable) / IP 67 (Connection plug)
