Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | DATALOGIC |
| Model | DATASENSOR S5-5-C10-37 PHOTOELECTRIC DIFFUSE PROXIMITY SENSOR |
| Condition |
Datasensor S5-5-C10-37 Photoelectric Diffuse Proximity Sensor
We are NOT an authorized distributor for DATALOGIC
- ManufacturerDATALOGIC
- ModelDATASENSOR S5-5-C10-37 PHOTOELECTRIC DIFFUSE PROXIMITY SENSOR
- SKU051293
63 $
5 in stock
Description
Manufacturer: DATALOGIC
Model: S5-5-C10-37
Type: PHOTOELECTRIC DIFFUSE PROXIMITY SENSOR
Operating Distance: 10 … 100 mm
Response Time Max.: 1 ms
Switching Frequency Max.: 250 Hz
Operating Voltage: 10 … 30 V DC
Output Current: 150 mA
Electrical Design: PNP/NPN
Switching Output: Dark/Light Switching

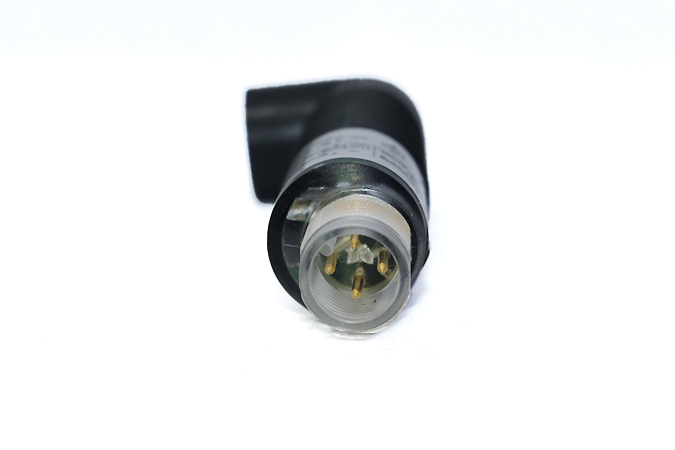

Connector Type: M12 Connector, 4-pin
Protection Class: II
Enclosure Rating: IP67
Ambient Operating Temperature: -25 … 55°C
Diameter, Housing Length: 18, 92 mm
