Specifications
| Weight | 0.150 kg |
|---|---|
| Manufacturer | Baumer |
| Model | |
| Condition |

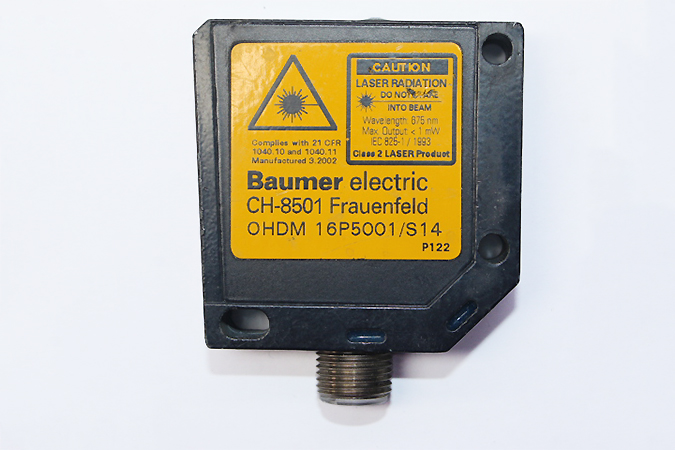

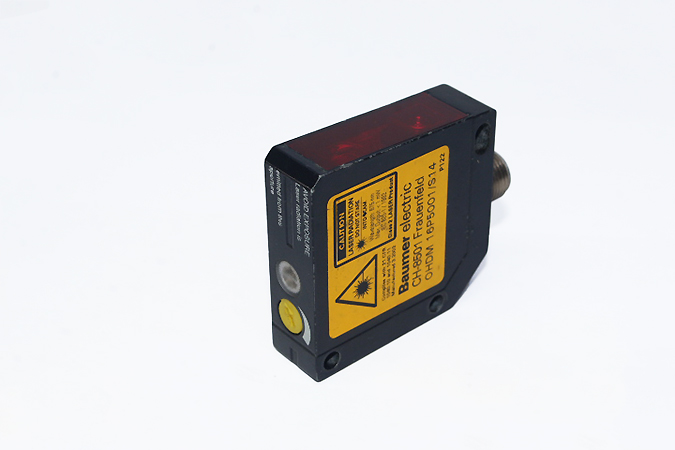

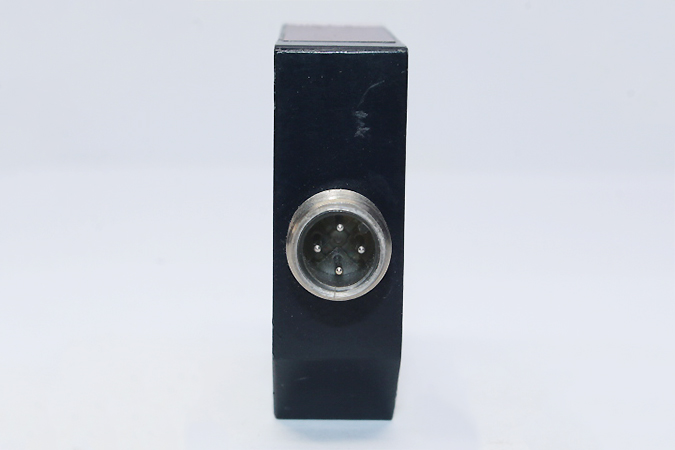

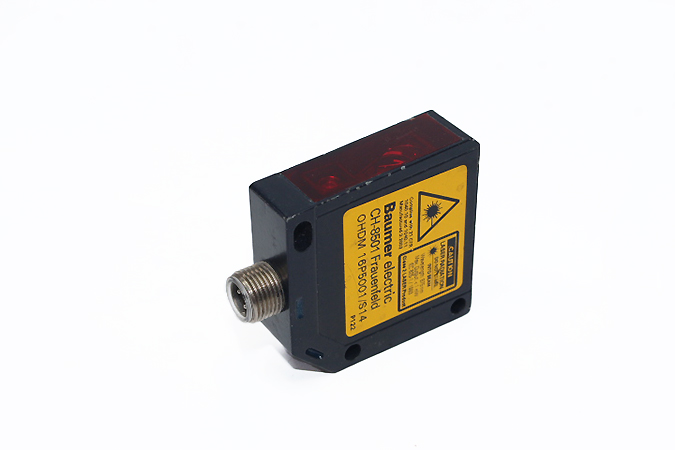

Baumer OHDM 16P5001/S14 Diffuse sensors with background suppression 10236806
We are NOT an authorized distributor for Baumer
- ManufacturerBaumer
- ModelOHDM 16P5001/S14
- SKU051062
420 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: Baumer
Model: OHDM 16P5001/S14
Type: Diffuse sensors with background suppression
Part No.: 10236806
Sensing distance Tw: 25 … 300 mm
Sensing range Tb (at Tw max.): 40 … 300 mm
Sensing range Tb (at Tw min.): 5 … 25 mm
Repeat accuracy: < 0.1 mm at laser focus
Output indicator: LED yellow
Light source: Pulsed red laser diode
Laser class: 2
Response time / release time: < 0.6 ms
Voltage supply range +Vs: 10 … 30 VDC
Current consumption max. (no load): 35 mA
Current consumption typ.: 25 mA
Output circuit: PNP
Protection class: IP 67
Operating temperature: -10 … +50 °C
