Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | BALLUFF |
| Model | |
| Condition |

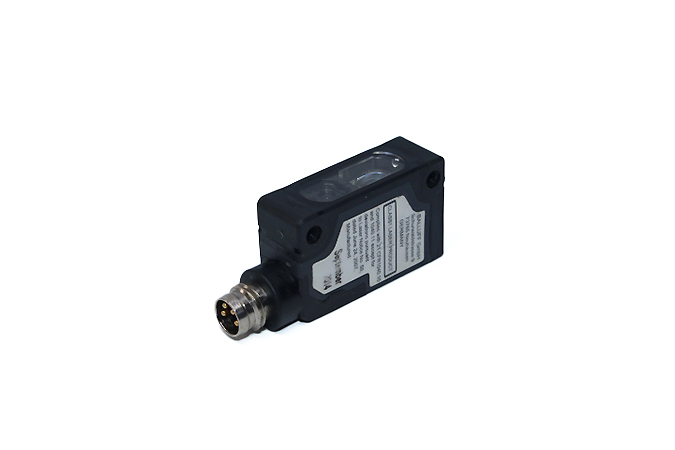

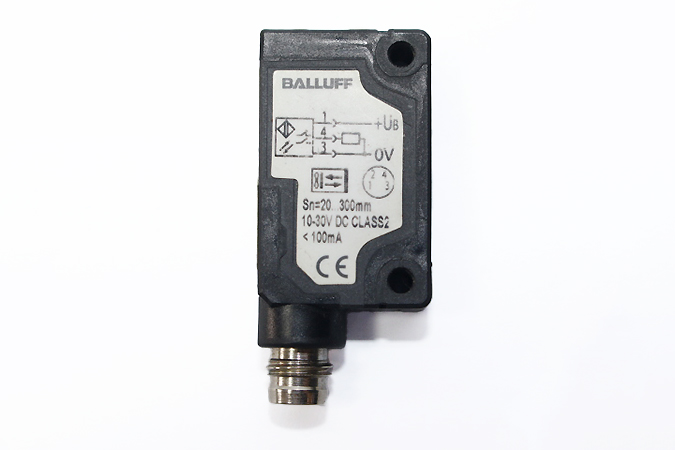

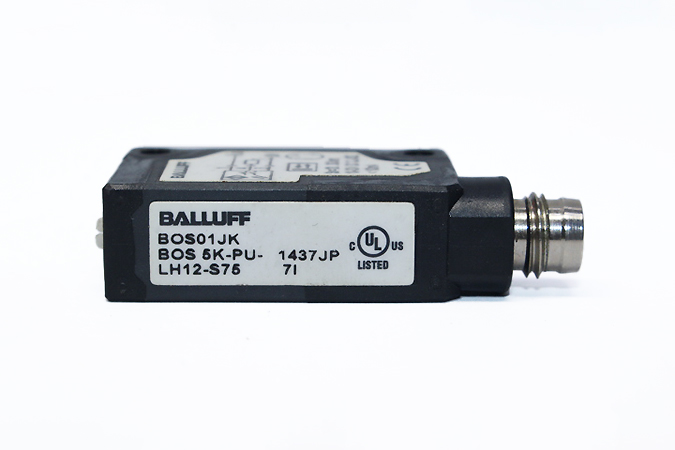

Balluff Bos 5K-Pu-Lh12-S75 Optoelectronic Sensor Bos01Jk
We are NOT an authorized distributor for BALLUFF
- ManufacturerBALLUFF
- ModelBALLUFF BOS 5K-PU-LH12-S75 OPTOELECTRONIC SENSOR BOS01JK
- SKU050623
23 $
1 in stock
Description
Manufacturer: BALLUFF Type: OPTOELECTRONIC SENSOR Model: BOS 5K-PU-LH12-S75 Part No: BOS01JK
Series: 5K
Dimension: 10.8 x 43.5 x 19.5 mm
Interface: PNP normally open/normally closed (NO/NC)
Principle of operation: Photoelectric sensor
Principle of optical operation: Diffuse sensor, triangulation
Special optical feature: Background suppression
Beam characteristic: Focus, typical at 260 mm
Light type: Laser red light
Light spot size: 0.2 x 0.3 mm at focal point
Range: 20…300 mm

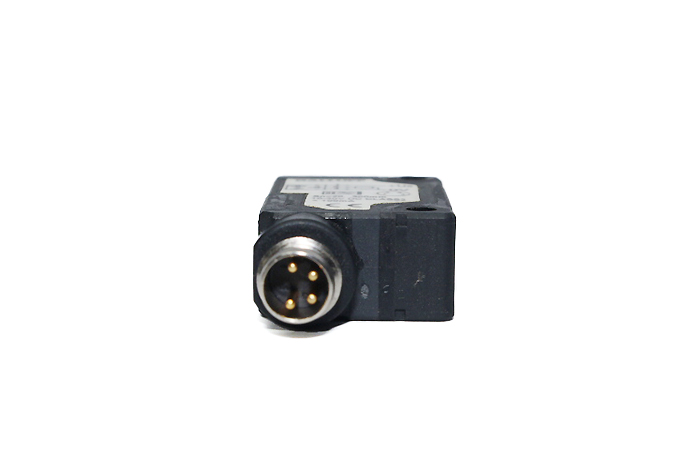

Connection: Connector, M8x1-Male, 4-pin
Housing material: PC, PBT
Material sensing surface: PMMA
Operating voltage Ub: 10…30 VDC
