Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | BALLUFF |
| Model | BALLUFF BGL 10A-001-S49 Fork sensors and angle sensors BGL0001 |
| Condition |

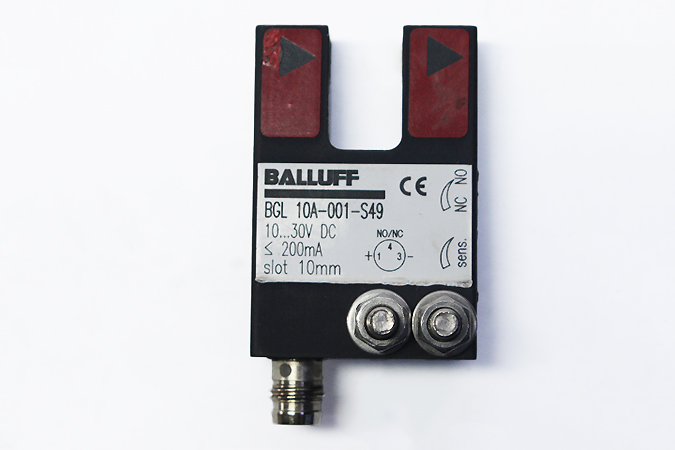

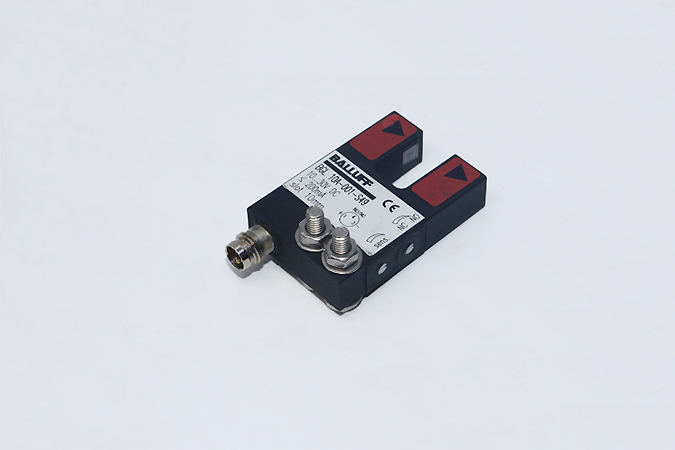

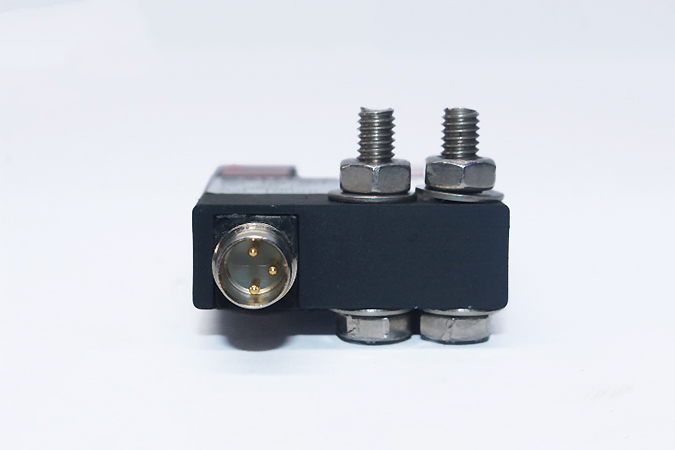

BALLUFF BGL 10A-001-S49 Fork sensors and angle sensors BGL0001
We are NOT an authorized distributor for BALLUFF
- ManufacturerBALLUFF
- ModelBALLUFF BGL 10A-001-S49 Fork sensors and angle sensors BGL0001
- SKU050606
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: BALLUFF Model: BGL 10A-001-S49 Type: Fork sensors and angle sensors Part No: BGL0001 Fork opening: 10 mm Interface: PNP normally open/normally closed (NO/NC) Principle of operation: Fork sensor Principle of optical operation: Through-beam sensor Beam characteristic: Divergent Light type: LED, red light Light spot size: Ø 1.2 mm Light exit Connection: Connector, M8x1-Male, 3-pin Housing material: Zinc, Die casting, Painted Material sensing surface: Glass Operating voltage Ub: 10...30 VDC
