Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | BALLUFF |
| Model | |
| Part Number | BES0161 |
| Condition |

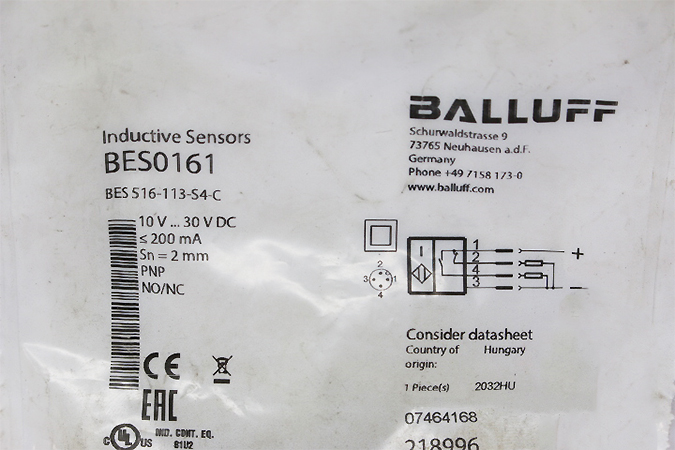

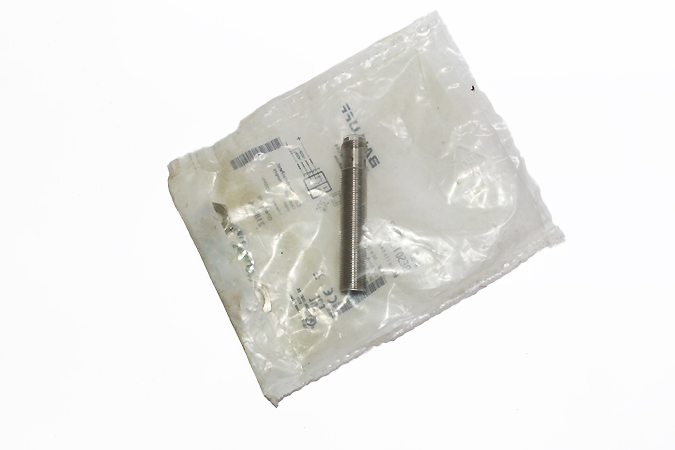

BALLUFF BES 516-113-S4-C Inductive Proximity Switch and Proximity Sensor BES0161
We are NOT an authorized distributor for BALLUFF
- ManufacturerBALLUFF
- ModelBES 516-113-S4-C
- SKU050538
21 $
2 in stock
Description
Manufacturer: BALLUFF
Type: Inductive Proximity Switch and Proximity Sensor
Model: BES0161
Part No: BES 516-113-S4-C
Dimension: Ø 12 x 70 mm
Style Housing: M12x1
Installation: for flush mounting
Range: 2 mm
Switching output: PNP normally open/normally closed (NO/NC)
Switching frequency: 4500 Hz
Housing material: Stainless steel
Material sensing surface: PBT
Connection: Connector, M12x1-Male, 4-pin
Operating voltage Ub: 10…30 VDC
Ambient temperature: -40…85 °C
IP rating: IP68, according to BWN Pr 20
