Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | BALLUFF |
| Model | BALLUF BES M18MI-POC80B-S04G Inductive standard sensors BES03RP |
| Condition |

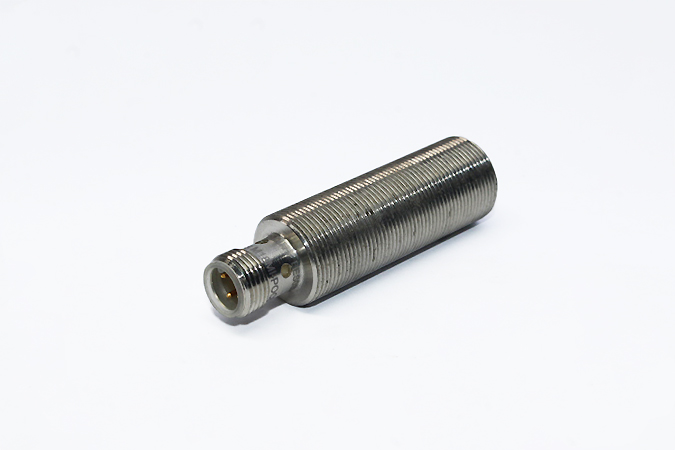

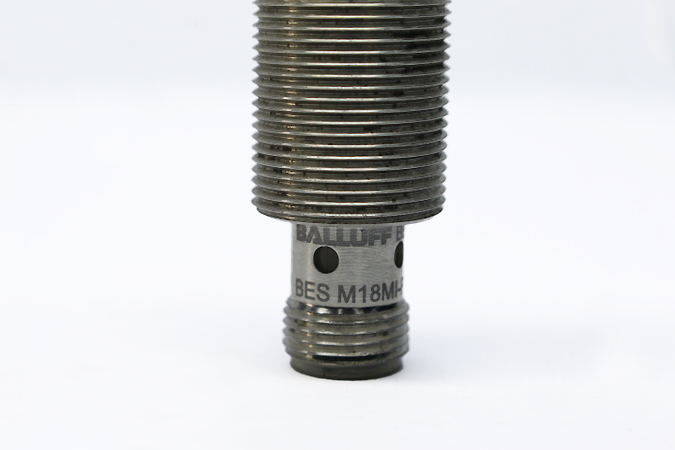

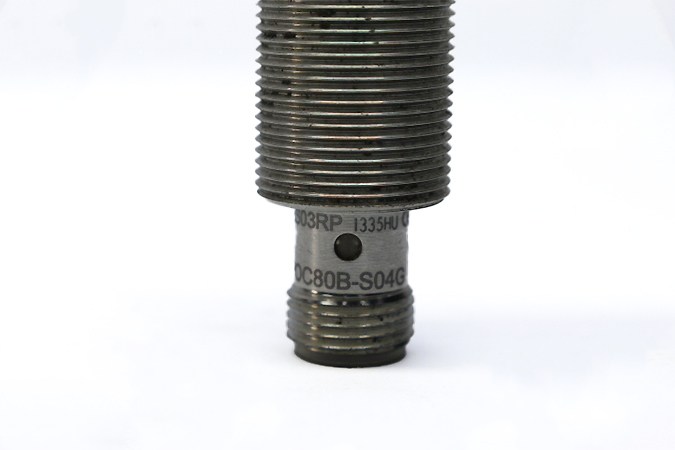

BALLUF BES M18MI-POC80B-S04G Inductive standard sensors BES03RP
We are NOT an authorized distributor for BALLUFF
- ManufacturerBALLUFF
- ModelBALLUF BES M18MI-POC80B-S04G Inductive standard sensors BES03RP
- SKU050368
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: BALLUFF
Model: BES M18MI-POC80B-S04G
Type: Inductive standard sensors
Part No: BES03RP
Dimension: Ø 18 x 66 mm
Style Housing: M18x1
Installation: for flush mounting
Range: 8 mm
Switching output: PNP normally closed (NC)
Switching frequency: 1300 Hz
Housing material: Brass, Nickel-free coated
Material sensing surface: PBT

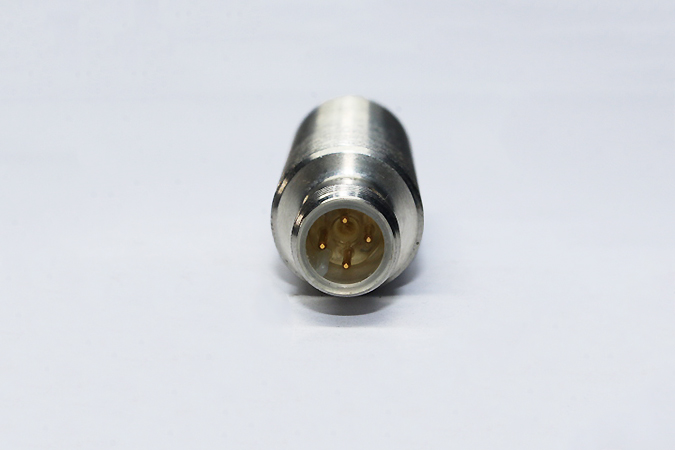

Connection: Connector, M12x1-Male, 3-pin
Operating voltage Ub: 10…30 VDC
Ambient temperature: -40…85 °C
IP rating: IP68
