Specifications
| Weight | 0.1 kg |
|---|---|
| Manufacturer | BALLUFF |
| Model | BALLUF BAW M18MG-UAC80F-S04G Inductive standard sensors BAW002C |
| Condition |

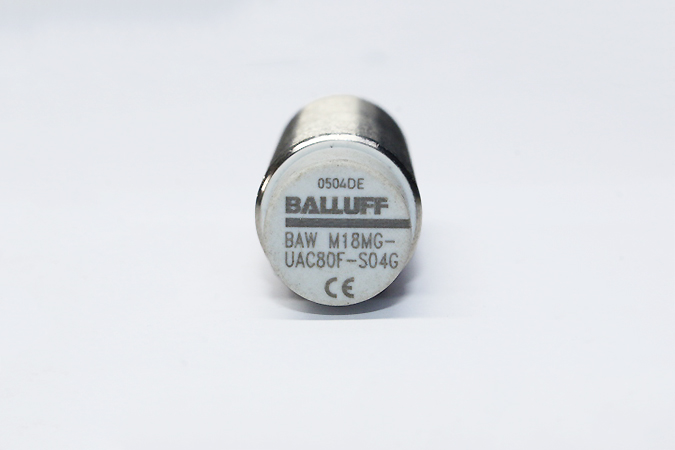

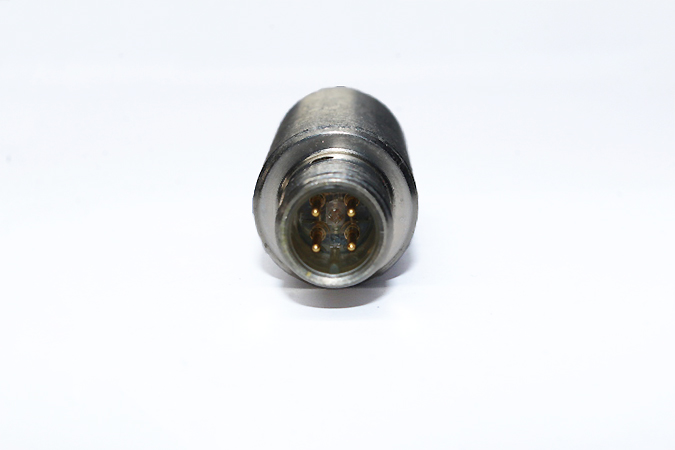

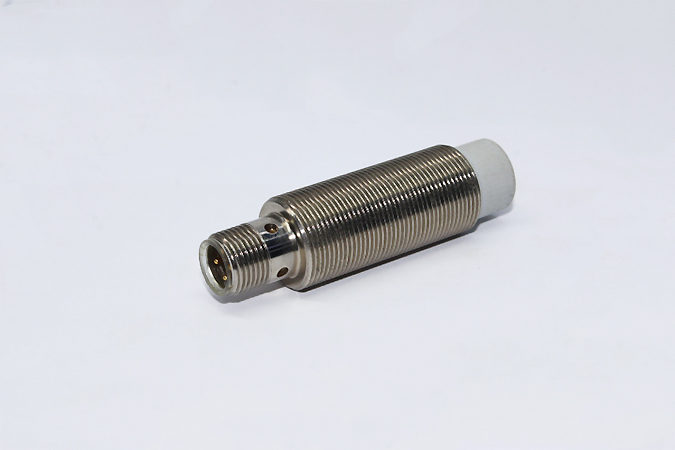

BALLUF BAW M18MG-UAC80F-S04G Inductive standard sensors BAW002C
We are NOT an authorized distributor for BALLUFF
- ManufacturerBALLUFF
- ModelBALLUF BAW M18MG-UAC80F-S04G Inductive standard sensors BAW002C
- SKU050363
22 $
1 in stock
Description
Manufacturer: BALLUFF Type: Inductive standard sensors Model: BAW M18MG-UAC80F-S04G Part No: BAW002C Dimension: Ø 18 x 65 mm Style Housing: M18x1 Installation: non-flush Range: 2…8 mm Analog output: Analog, voltage 0…10 V Limit frequency: –3 dB 500 Hz Non-linearity max.: ±180 µm Housing material: Brass, nickel-plated Material sensing surface: PBT Connection: Connector, M12x1-Male, 3-pin Operating voltage Ub: 15…30 VDC Ambient temperature: -10…70 °C IP rating: IP67
