Specifications
| Weight | 0.500 kg |
|---|---|
| Manufacturer | FANAL |
| Model | |
| Part Number | 1010078 |
| Condition |

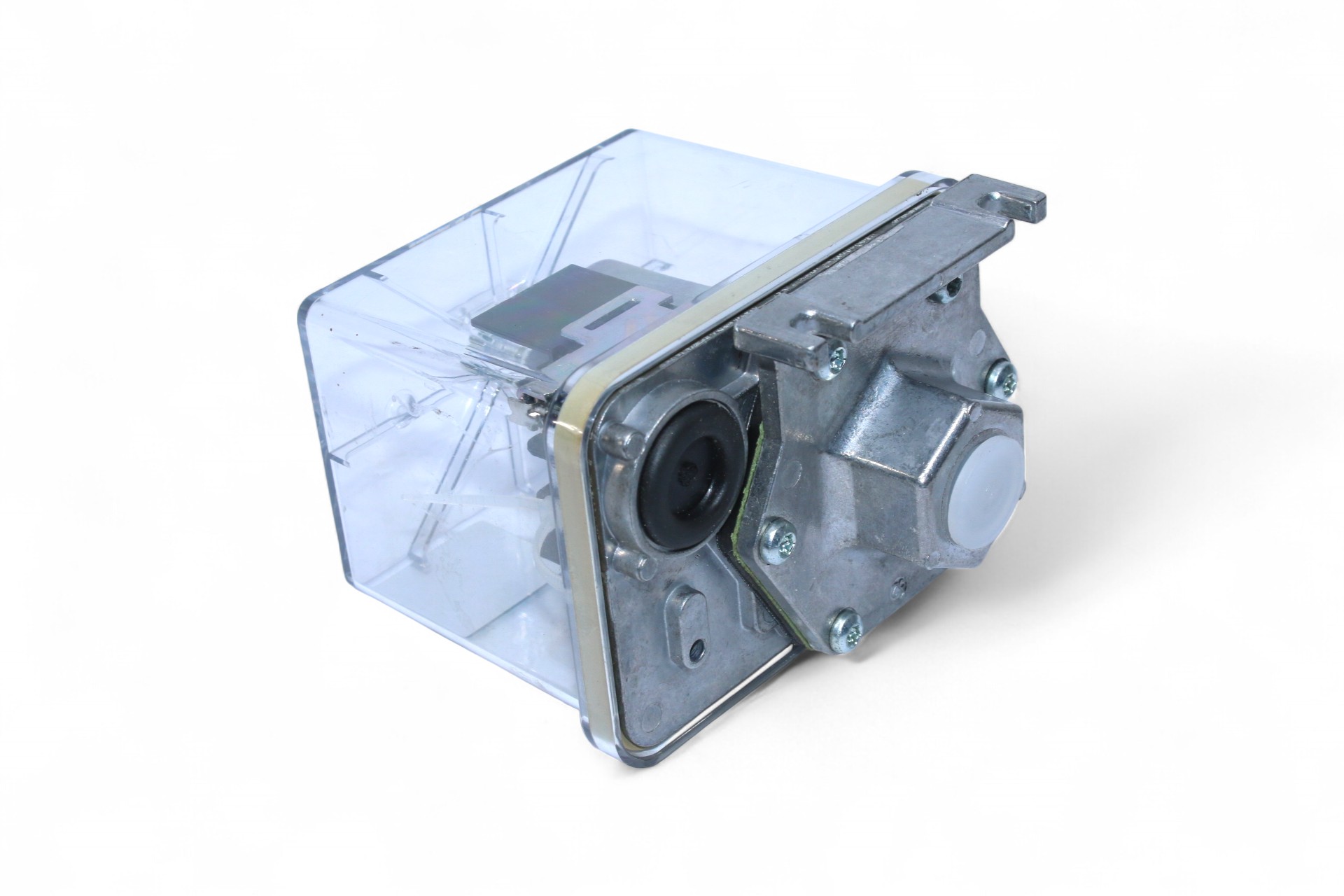

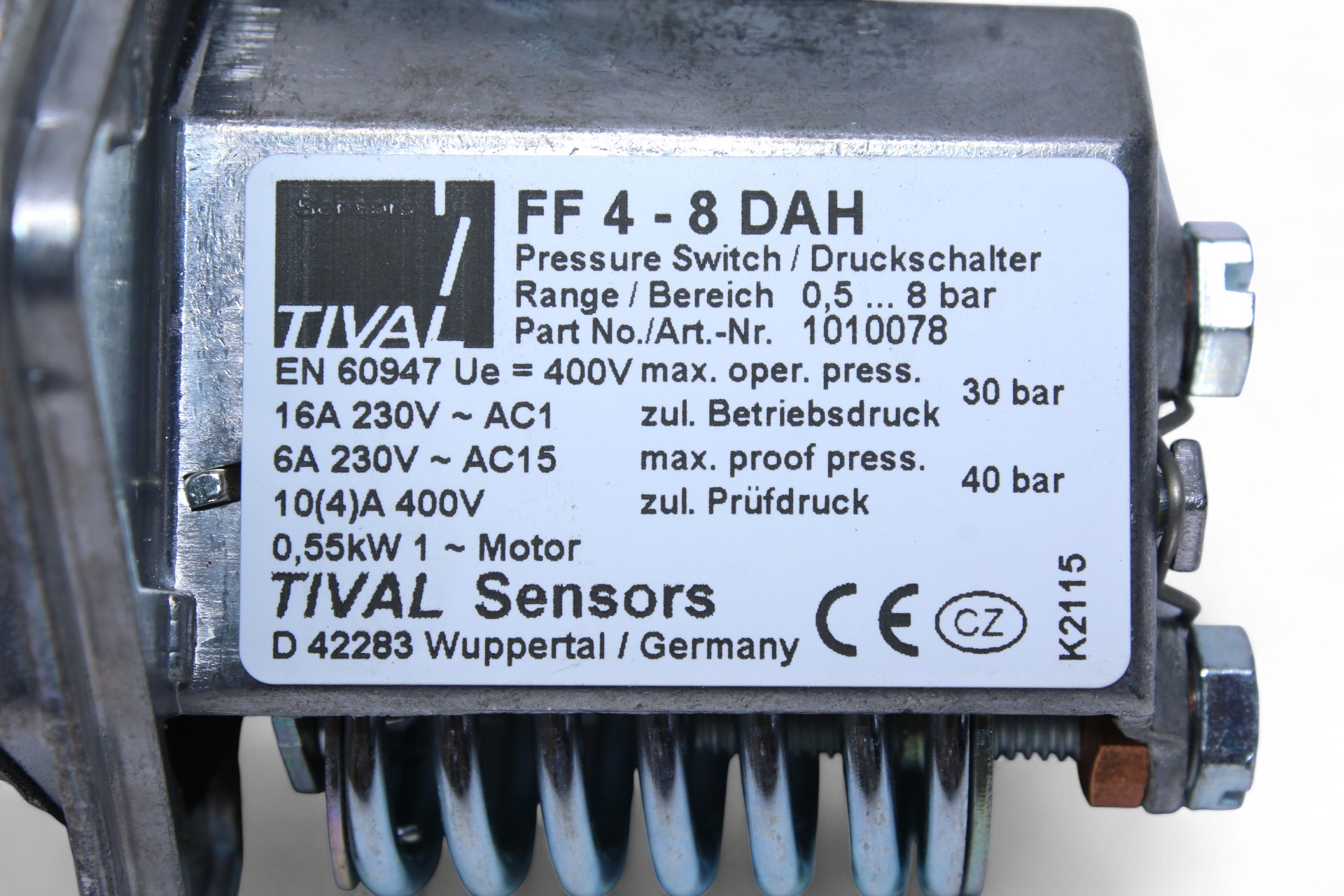

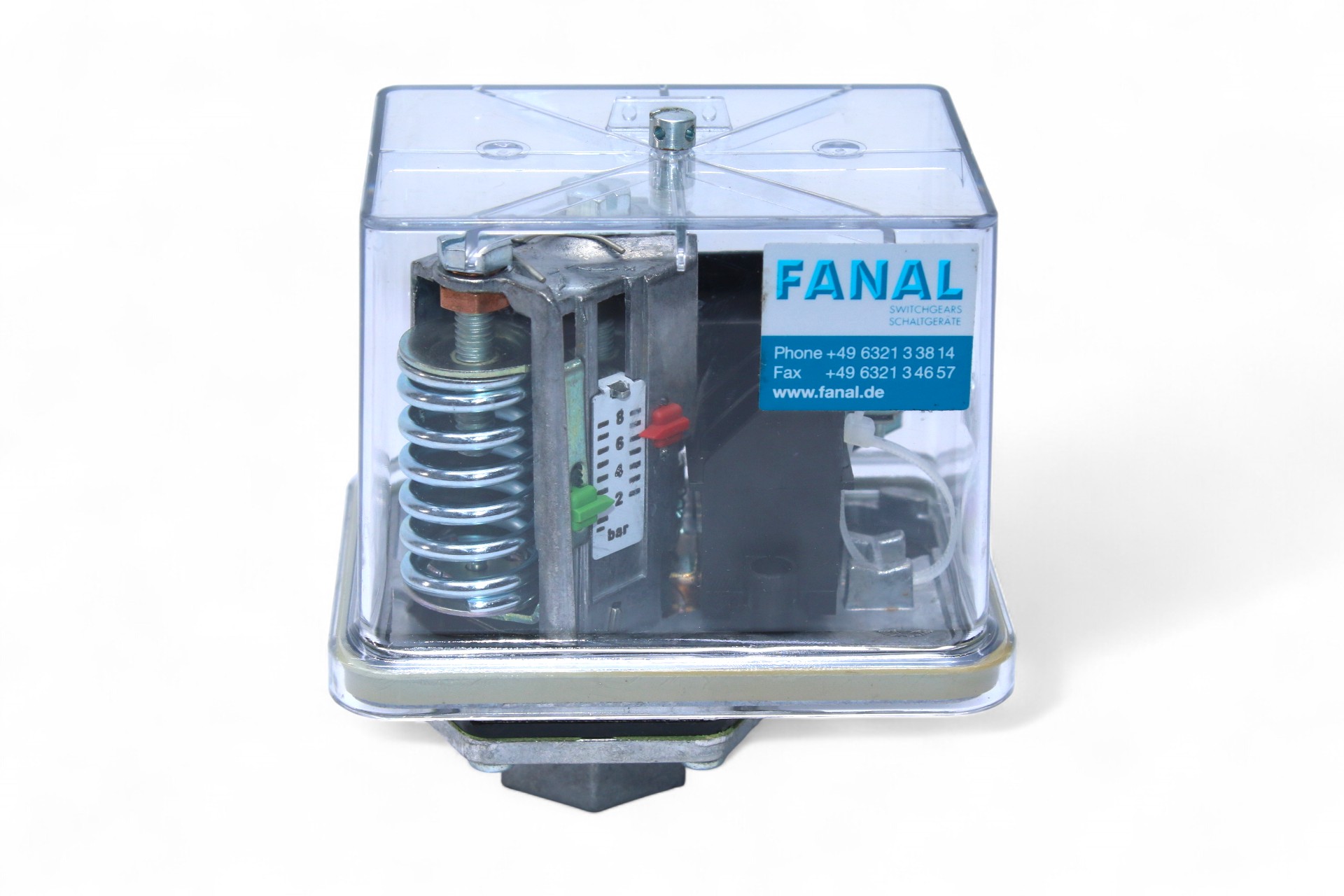

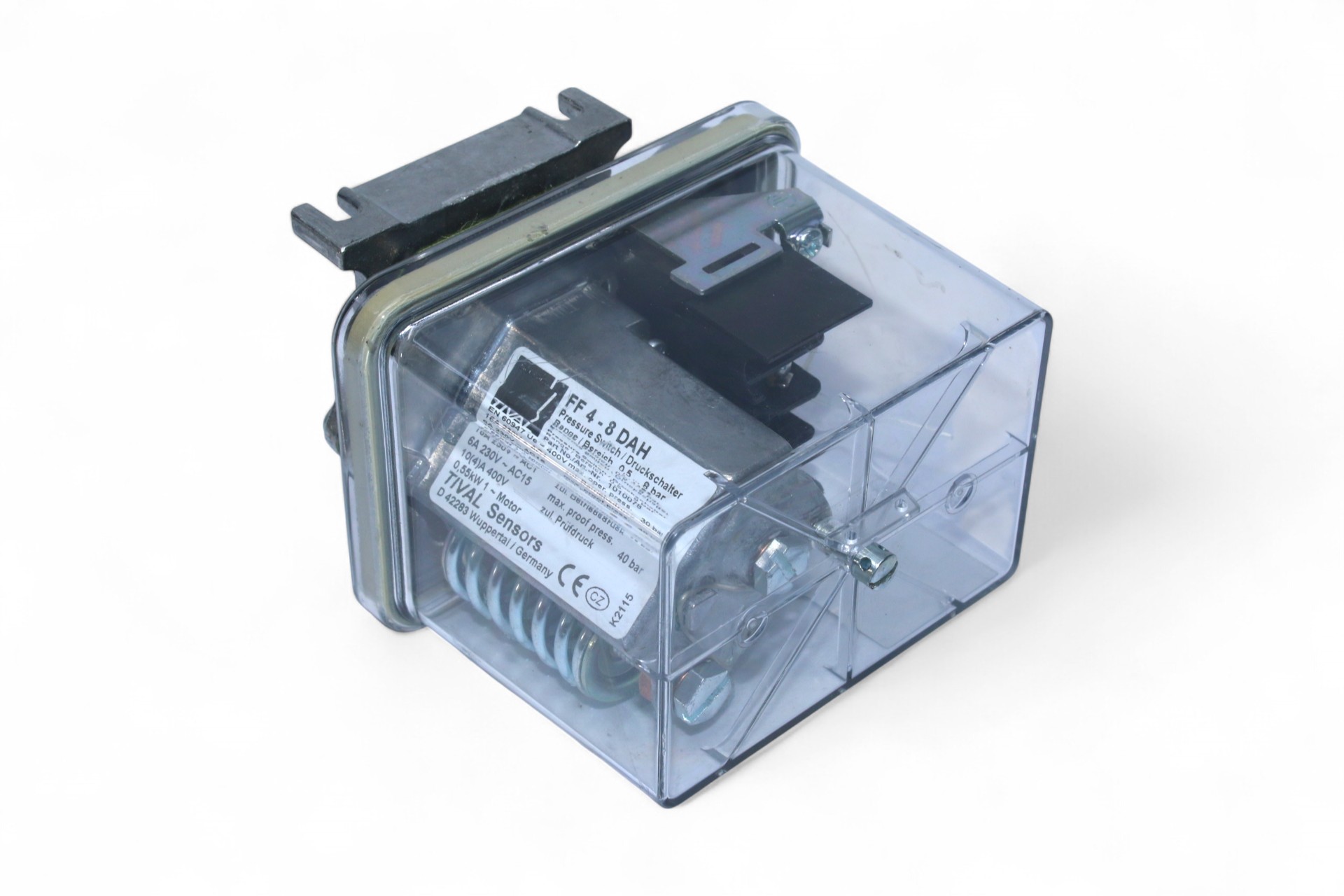

FANAL FF4-8 DAH PRESSURE SWITCH 1010078 (0,5….8 bar)
We are NOT an authorized distributor for FANAL
- ManufacturerFANAL
- ModelFF4-8 DAH
- SKU062338
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: FANAL
Type: PRESSURE SWITCH
Model: FF4-8 DAH
Part No: 1010078
Technical Specifications
Upper switch point: 0,5 …. 8 bar
Lower switch point: 0,2 …. 7,5 bar
Max. operating pressure: 30 bar
Max. test pressure: 40 bar
Standard setting: 2 / 6 bar
Permissible motor power 1 230V: 0,55 kW
Connector: G 3/8″
Ambient temperature range: -20 …. +70°C
Protection: IP 65
