Specifications
| Manufacturer | Zimmer |
|---|---|
| Model | |
| Condition |

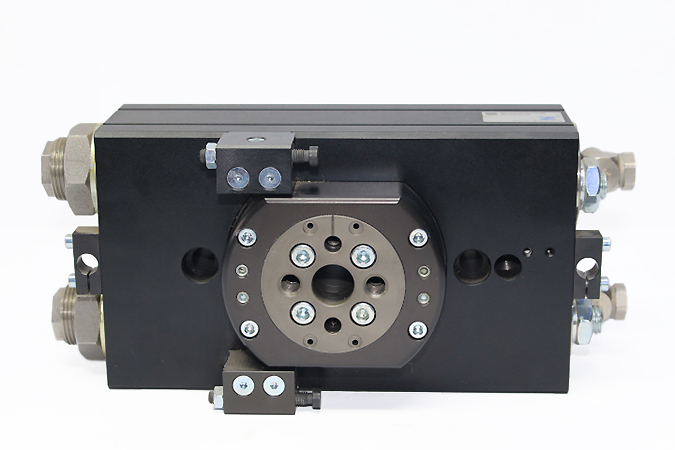

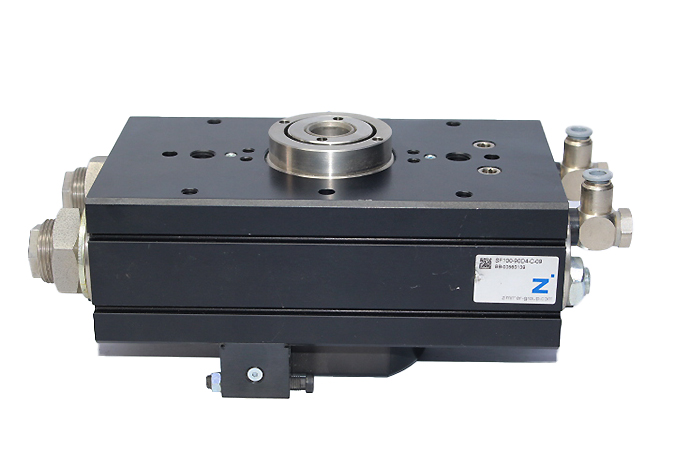

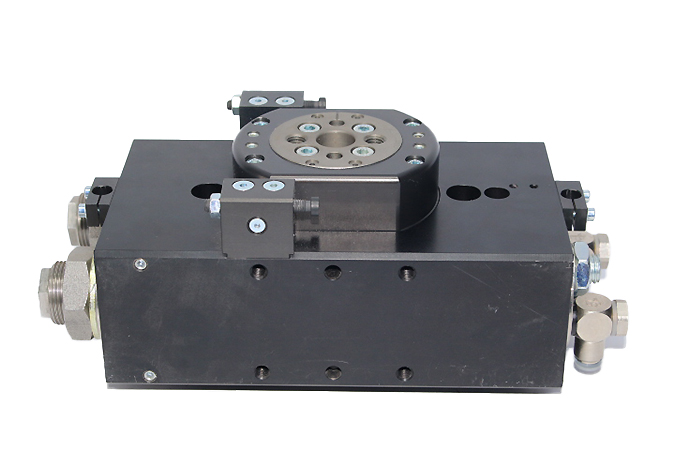

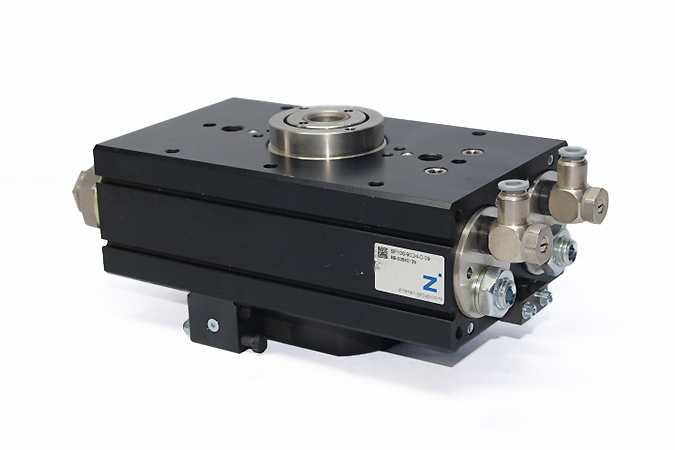

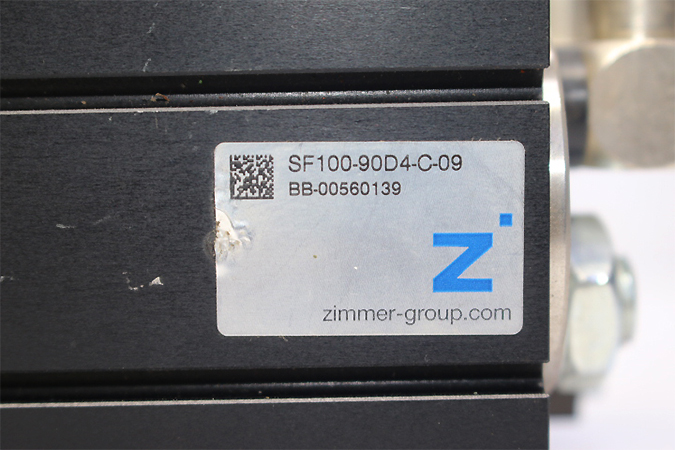

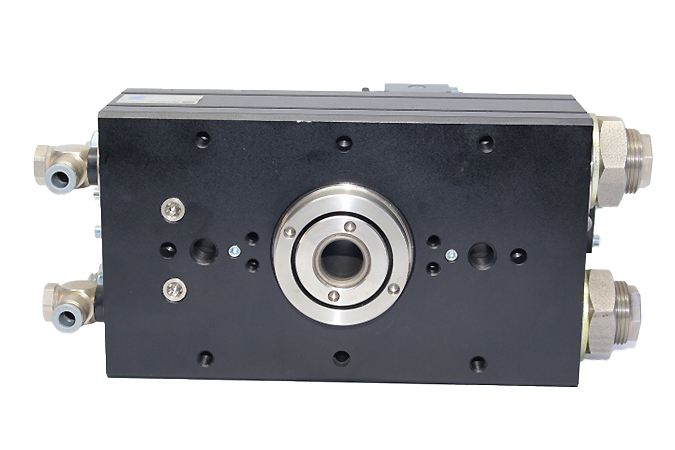

ZIMMER SF100-90D4-C-09 Flat Swivel Units
We are NOT an authorized distributor for Zimmer
- ManufacturerZimmer
- ModelZIMMER SF100-90D4-C-09 Flat Swivel Units
- SKU053794
700 $
1 in stock
Description
Manufacturer: FESTO
Model: SF100-90D4-C-09
Type: Flat Swivel Units
Swivel angle: 90
Torque: 15 Nm
Swivel angle regulable +/-: 3
Passage bore Ø: 15 mm
Axial bearing load: 2500 N
Radial bearing load: 155Nm
Repetition accuracy +/-: 0.01°
Operating pressure min.: 3 ba
Operating pressure max.: 8 bar
Nominal operating pressure: 6 bar
Operating temperature min.: 5 °C
Operating temperature max.: +80 °C
Air volume per cycle: 103 cm³
Protection: IP64
