Specifications
| Weight | 0.650 kg |
|---|---|
| Manufacturer | SCHUNK |
| Model | |
| Condition |

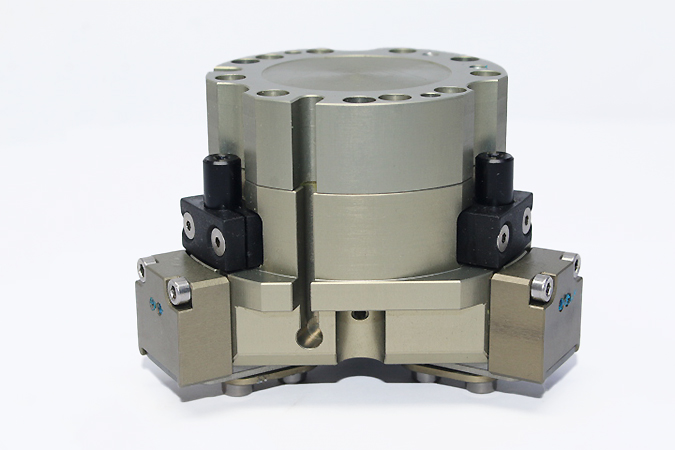

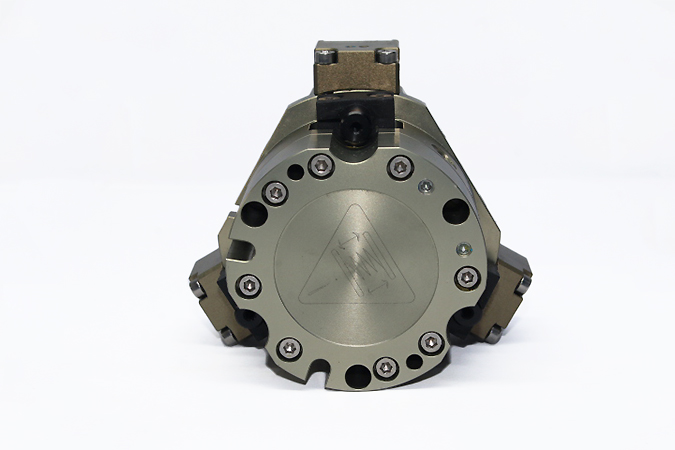

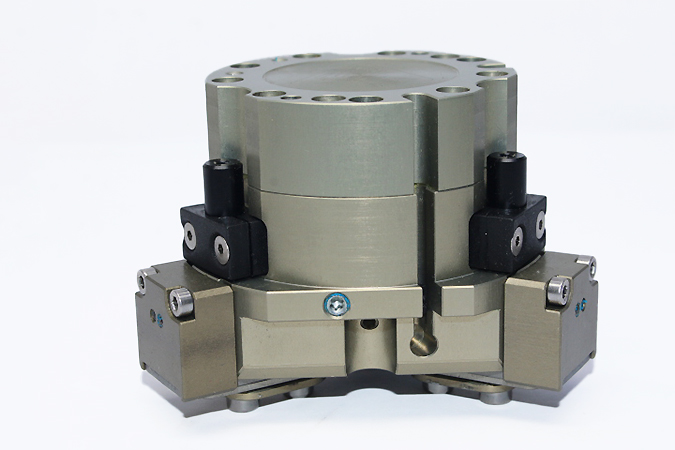

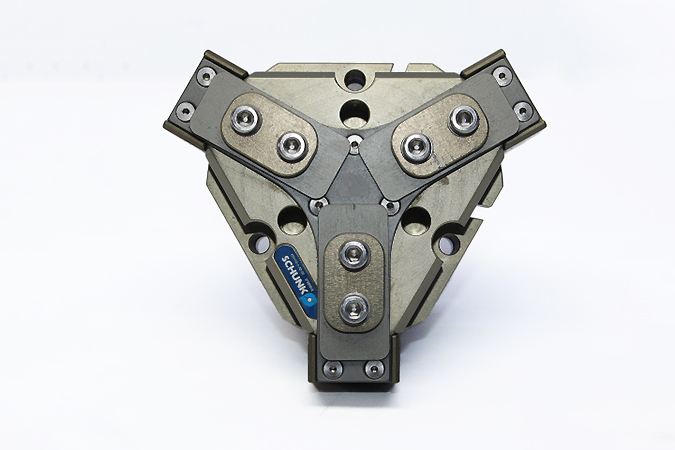

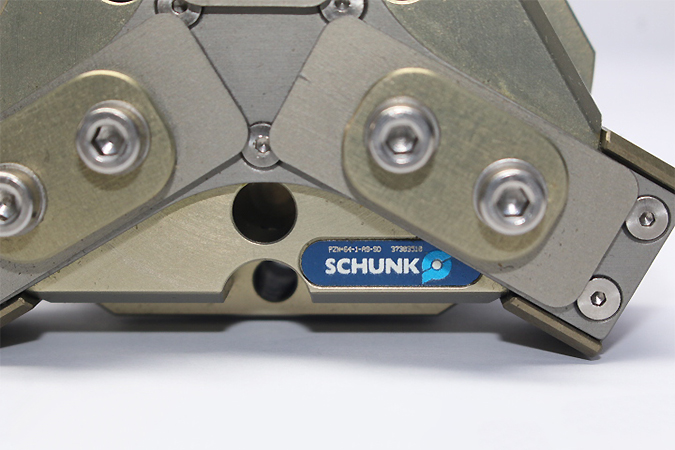

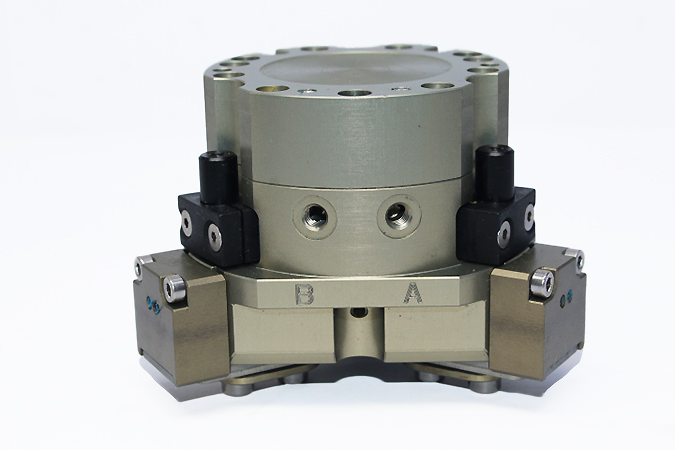

SCHUNK PZN+ 64-1-AS-SD Universal gripper 37303510
We are NOT an authorized distributor for SCHUNK
- ManufacturerSCHUNK
- ModelSCHUNK PZN+ 64-1-AS-SD Universal gripper 37303510
- SKU053760
895 $
1 in stock
Description
Manufacturer: SCHUNK
Model: PZN+ 64-1-AS-SD
Type: Universal gripper
Part No: 37303510
Stroke per jaw [mm]: 6
Closing force [N]: 765
Closing force (with finger lengths of 0 mm) [N]: 840
Min. spring force [N]: 185
Cylinder volume per double stroke [cm³]: 48
Min. operating pressure [bar]: 4
Max. operating pressure [bar]: 6.5
Nominal operating pressure [bar]: 6
Min. air purge pressure [bar]: 0.5
Max. air purge pressure [bar]: 1
IP protection classl: 64
Min. ambient temperature [°C]: 5
Max. ambient temperature [°C]: 90
