Specifications
| Weight | 0.650 kg |
|---|---|
| Manufacturer | SCHUNK |
| Condition |

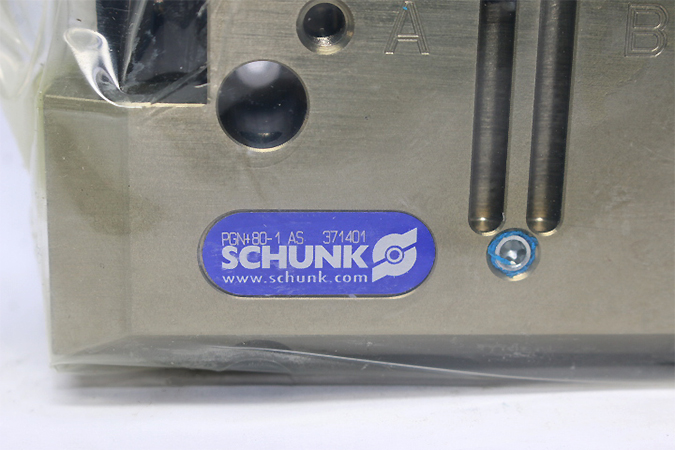

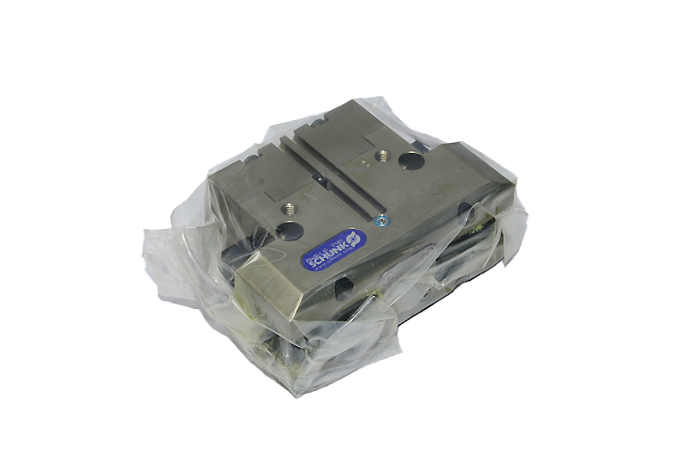

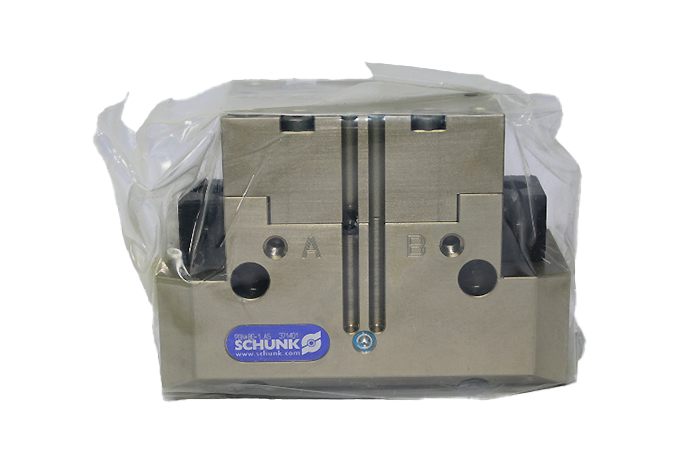

SCHUNK PGN+ 80-1-AS Universal gripper 371401
We are NOT an authorized distributor for SCHUNK
- ManufacturerSCHUNK
- SKU053763
630 $
2 in stock
Description
Manufacturer: SCHUNK
Model:PGN+ 80-1-AS
Type: Universal gripper
Part No: 371401
Stroke per jaw [mm]: 8
Closing force [N]: 570
Closing force (with finger lengths of 0 mm) [N]: 660
Min. spring force [N]: 155
Min. operating pressure [bar]: 4
Max. operating pressure [bar]: 6.5
Nominal operating pressure [bar]: 6
Min. air purge pressure [bar]: 0.5
Max. air purge pressure [bar]: 1
IP protection class: 40
Min. ambient temperature [°C]: 5
Max. ambient temperature [°C]: 90
