Specifications
| Weight | 0.800 kg |
|---|---|
| Manufacturer | SCHUNK |
| Model | |
| Condition |

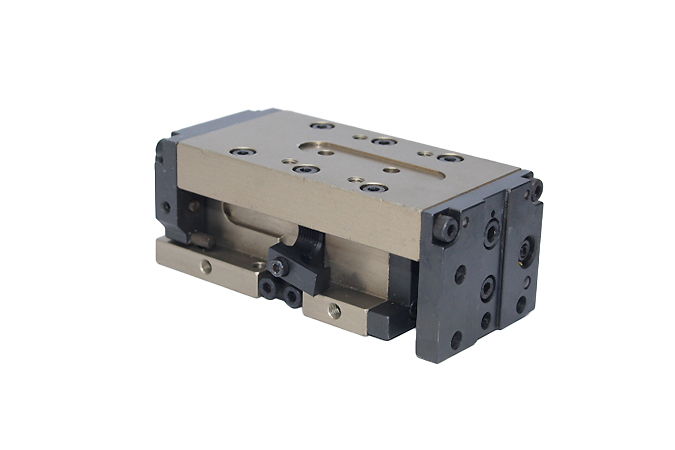

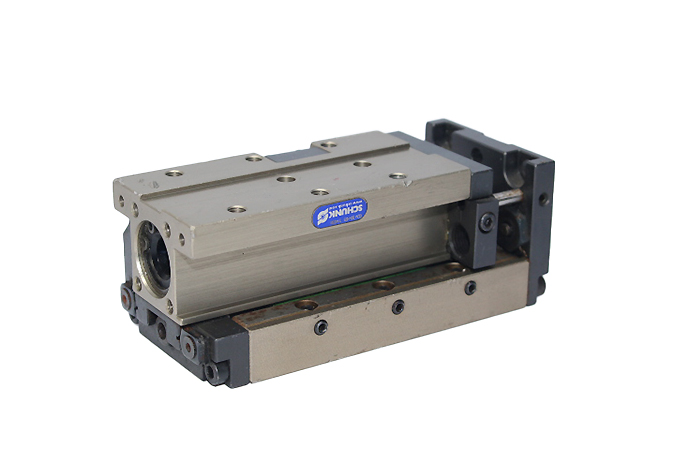

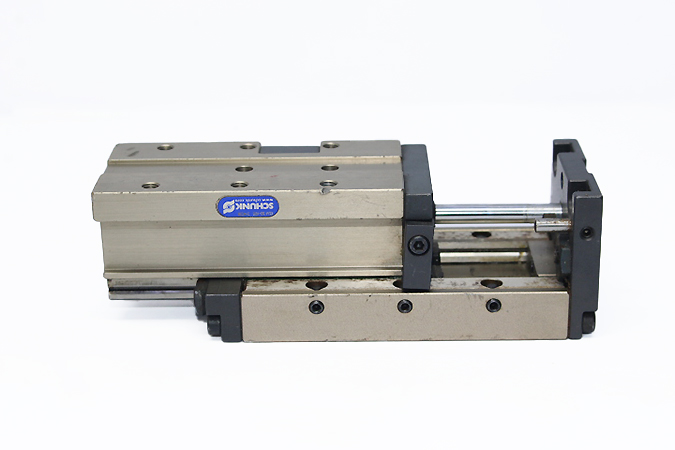

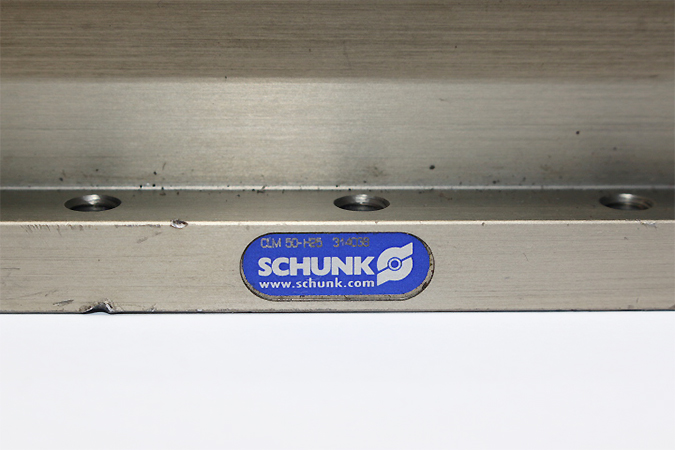

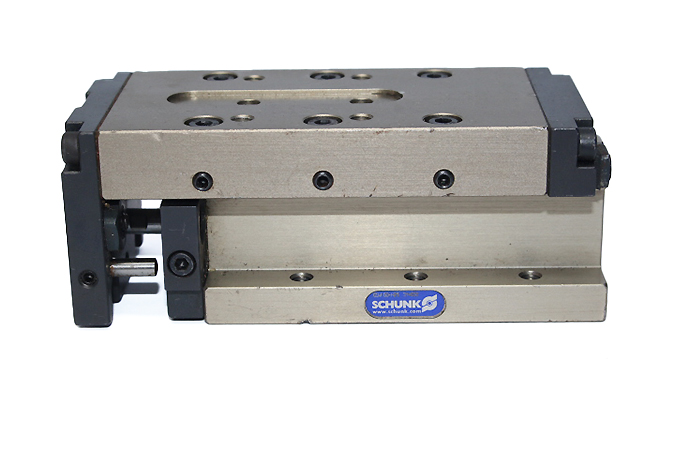

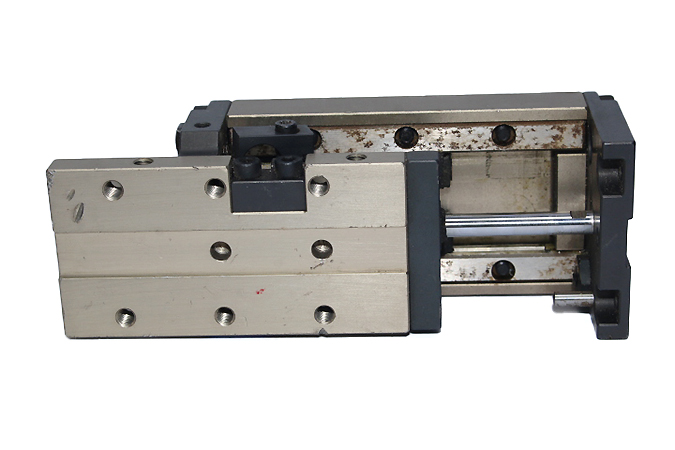

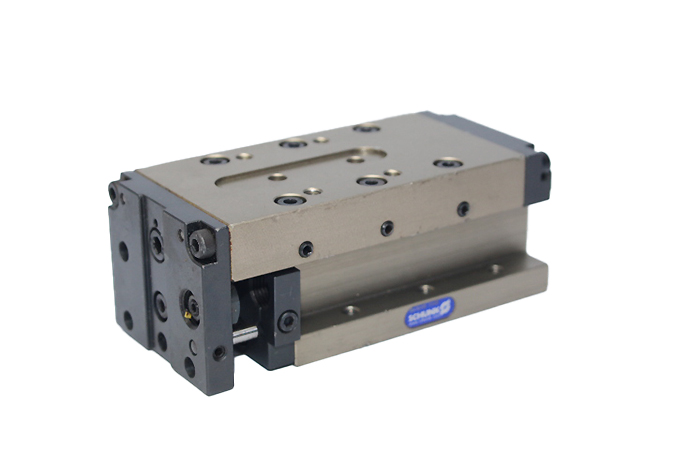

SCHUNK CLM 50-H25 Linear modules 314038
We are NOT an authorized distributor for SCHUNK
- ManufacturerSCHUNK
- ModelSCHUNK CLM 50-H25 Linear modules 314038
- SKU053773
Quote on request
1 in stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SCHUNK
Model: CLM 50-H25
Type: Linear modules
Part No: 314038
Stroke [mm]: 25
extend force [N]: 120
retracted force [N]: 103
Repeat accuracy [mm]: 0.02
Piston diameter [mm]: 16
Bar diameter [mm]: 6
Min. operating pressure [bar]: 3
Max. operating pressure [bar]: 8
Nominal operating pressure [bar]: 6
Cylinder volume/10 mm per double stroke [cm³]: 2
Overall length [mm]: 116
IP protection class: 40
Min. ambient temperature [°C]: 5
Max. ambient temperature [°C]: 60
