Specifications
| Weight | 0.250 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | SID10ABBFPKG/US-100 |
| Condition |

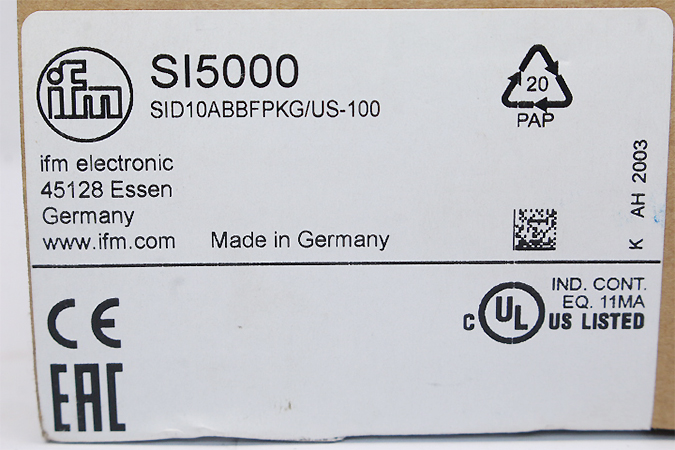

IFM SI5000 Flow monitor SID10ABBFPKG/US-100
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelSI5000
- SKU052928
158 $
1 in stock
Description
Manufacturer: IFM
Model: SI5000
Type: Flow monitor
Part No.: SID10ABBFPKG/US-100
Pressure rating [bar]: 30
Operating voltage [V]: 19…36 DC
Current consumption [mA]: < 60
Output function: normally open / normally closed
Total number of outputs: 1
Output signal: switching signal
Electrical design: PNP
Number of digital outputs: 1
Media: Liquids; Gases
Response time [s]: 1…10
Liquids
Setting range [cm/s]: 3…300
Greatest sensitivity [cm/s]: 3…100
Gases
Setting range [cm/s]: 200…3000
Greatest sensitivity [cm/s]: 200…800
Liquids Medium temperature [°C]: -25…80
Gases Medium temperature [°C]: -25…80
Dimensions [mm]: M18 x 1.5
Thread designation: M18 x 1.5
Connection: Connector: 1 x M12; coding: A
