Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | STEUTE |
| Model | |
| Part Number | 61.0.41.9.01 |
| Condition |

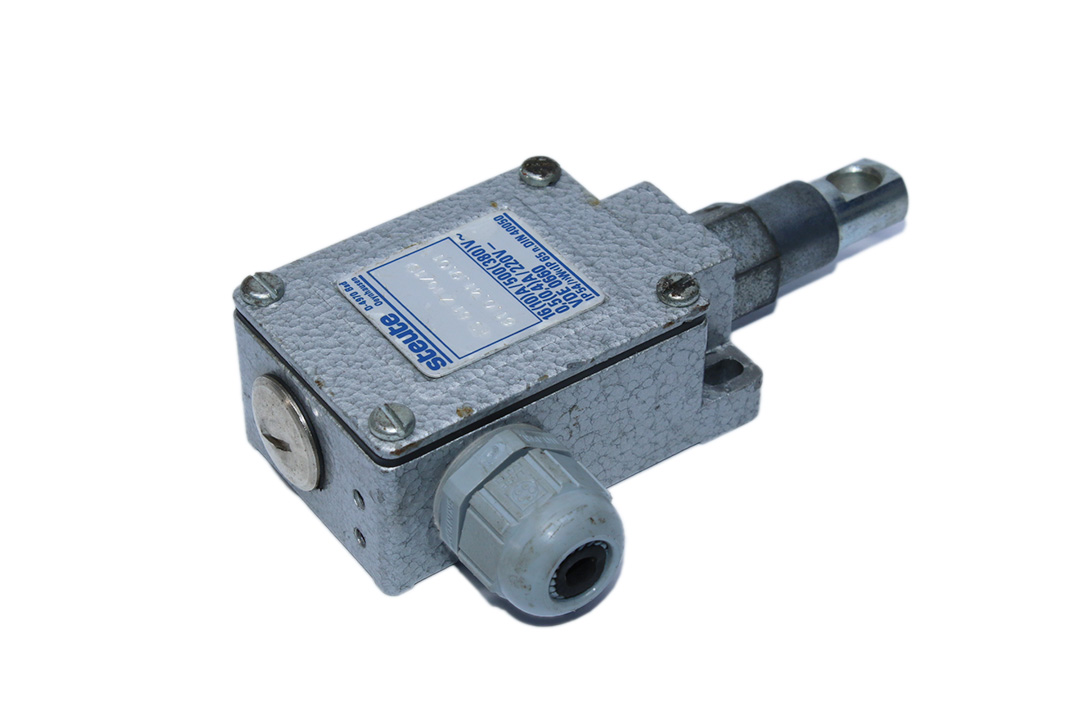

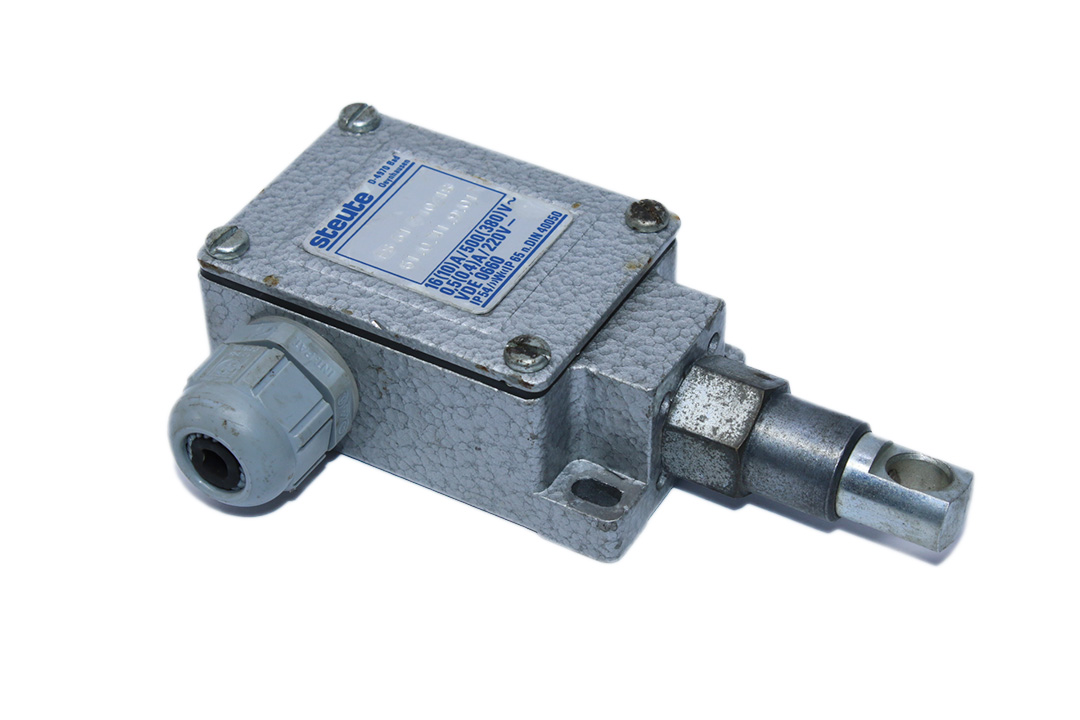

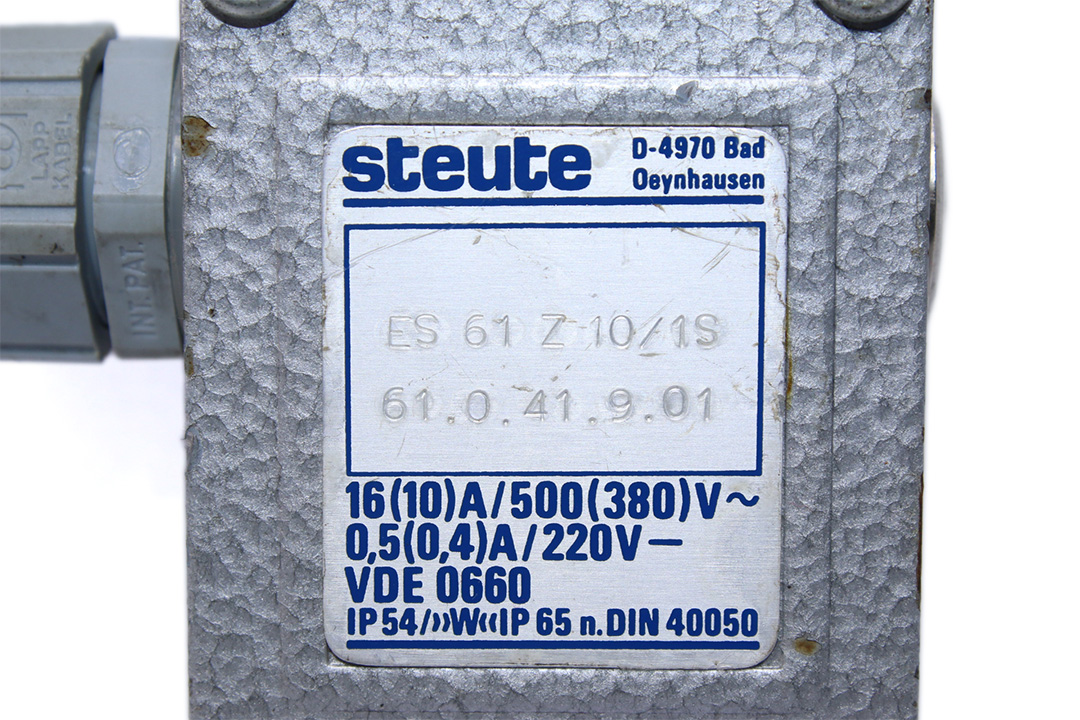

Steute Es 61 Z 1O/1S Pull-Wire Switch 61.0.41.9.01 (Es 61 Z 1Ö/1S)
We are NOT an authorized distributor for STEUTE
- ManufacturerSTEUTE
- ModelES 61 Z 1O/1S
- SKU058105
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: Steute
Type: Pull-wire switch
Model: ES 61 Z 1O/1S
Part No.: 61.0.41.9.01
Rated operating Voltage Ue: 500(380) V AC / 220 V DC
Rated operating current Ie: 16(10) A AC/ 0.5(0.4) A DC
Rated insulation voltage Ui: 400 V
Rated impulse withstand voltage Uimp: 6 kV
Conventional thermal current Ith: 16 A
Switching elements: 1 Normally closed contact, 1 Normally open contact, type Zb
Contact material: silver
Switching system: slow action
Connection: screw connection terminals
Cable cross-section: max. 2.5 mm² (incl. conductor ferrules)
Ambient Temperature: -20 … +80 °C
Degree of protection: IP65
Material: Enclosure: aluminium die-cast, powder-coated, Cover: steel, powder-coated
