Specifications
| Weight | 0.300 kg |
|---|---|
| Manufacturer | SCHMERSAL |
| Model | |
| Part Number | 101140809 |
| Condition |

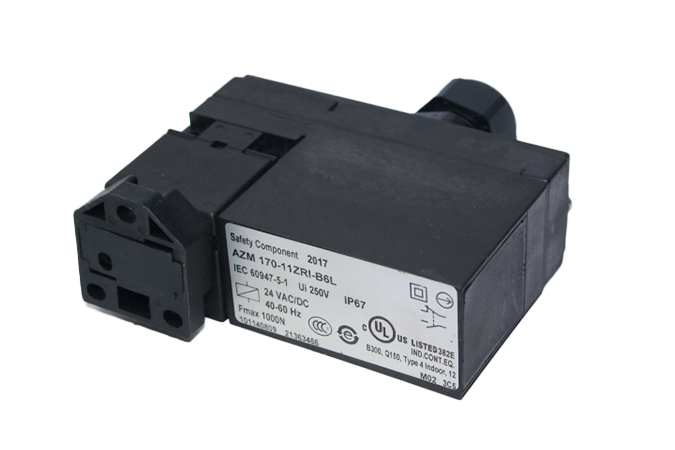

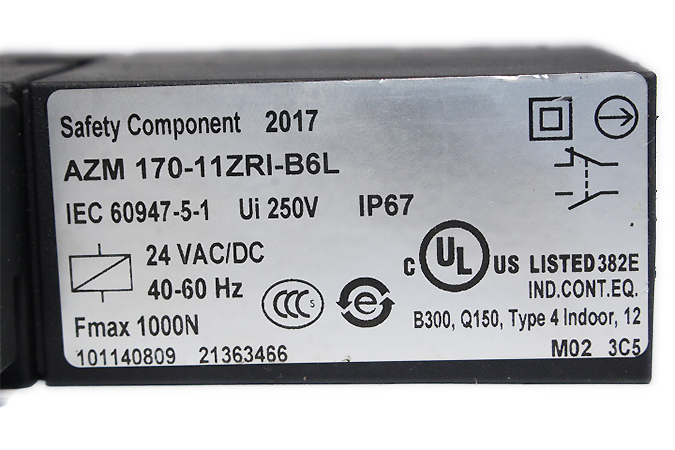

Schmersal Azm 170-11Zri-B6L Solenoid Interlock 101140809
We are NOT an authorized distributor for SCHMERSAL
- ManufacturerSCHMERSAL
- ModelAZM 170-11ZRI-B6L
- SKU054400
158 $
2 in stock
Description
The SCHMERSAL AZM 170-11ZRI-B6L Solenoid Interlock (Part No: 101140809) is a compact, high-holding force safety switch designed for monitoring the position of movable safety guards on industrial machinery. It features a power-to-unlock safety principle and individual coding for enhanced security against tampering.
Key Features & Benefits
- High Holding Force: The interlock offers a high holding force of 1000 N, ensuring safety guards remain securely locked until hazardous conditions are eliminated.
- Compact & Robust Design: Housed in a glass fibre-reinforced thermoplastic enclosure, it is designed for durability in harsh industrial environments and has a high IP67 protection rating against dust and water ingress.
- Power-to-Unlock Principle: This model uses the “power-to-unlock” principle, meaning the guard can be opened immediately on failure of the power supply, which is suitable for specific risk assessments where immediate access is needed in an emergency.
- Individual Coding: The switch uses individual coding (High coding level according to ISO 14119), working only with its paired actuator to prevent manipulation and enhance machine safety.

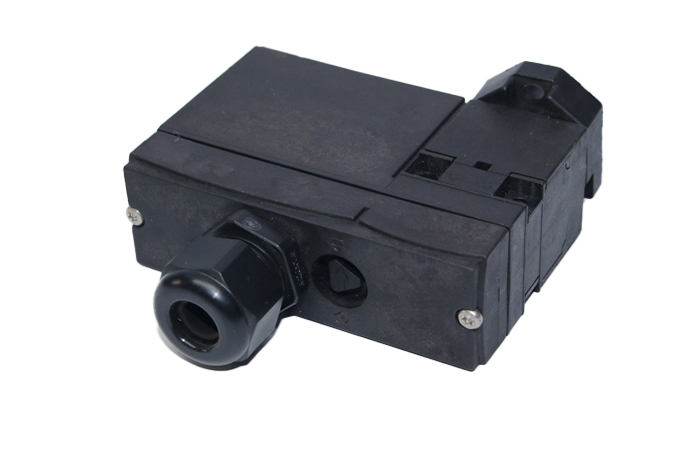

- Manual Release: It includes a manual release feature, accessible from the side using an M5 triangular key (available as an accessory), for maintenance or power failure situations.
- Flexible Installation: The left-hand model is particularly suitable for fitting on hinged doors and aluminum profiles, with the actuating direction adjustable for small actuating radii.
Technical Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | Schmersal |
| Model | AZM 170-11ZRI-B6L |
| Part Number | 101140809 |
| Rated Control Voltage | 24 VAC/DC |
| Power Consumption | 10 W |
| Housing Material | Glass fibre-reinforced thermoplastic |
| Dimensions (L x W x H) | 30 mm x 90 mm x 84 mm |
| IP Rating | IP67 |
| Safety Contacts | 1 NC (Normally Closed) |
| Auxiliary Contacts | 1 NO (Normally Open) |
| Termination Method | IDC method (Insulation Displacement Connection) |
| Cable Entry | 1 x M20 x 1.5 |
| Standards Met | EN ISO 13849-1, EN ISO 14119, EN 60947-5-1, BG-GS-ET-19, cULus, CCC |
Applications
The Schmersal AZM 170-11ZRI-B6L Solenoid Interlock is widely used in industrial settings to safely manage access to hazardous areas. It is appropriate for use with:
- Hinged safety guards
- Sliding safety guards
- Removable guards
This product helps ensure compliance with essential safety standards like EN ISO 13849-1 for performance level requirements.
