Specifications
| Weight | 0.200 kg |
|---|---|
| Manufacturer | SCHMERSAL |
| Model | |
| Part Number | 101150050 |
| Condition |

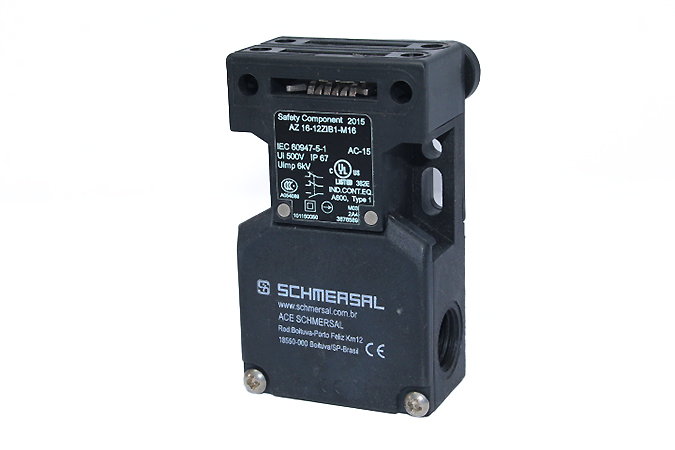

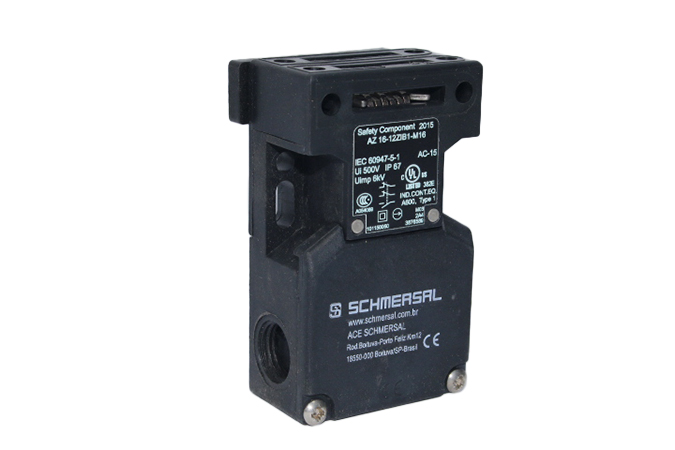

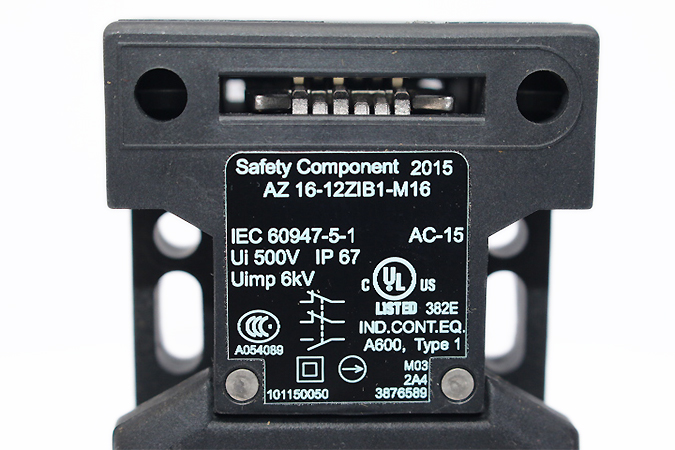

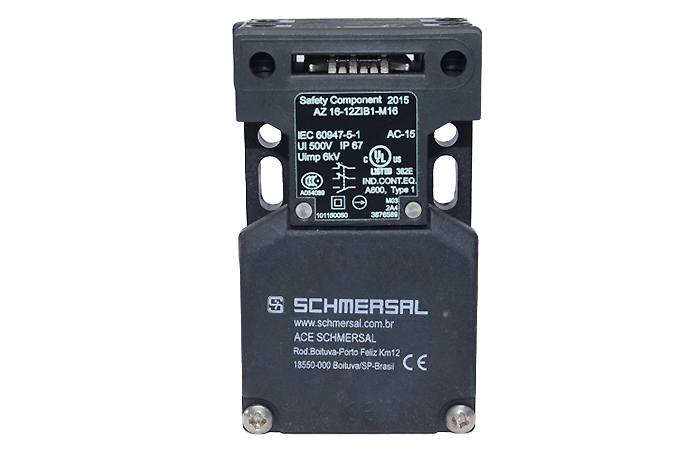

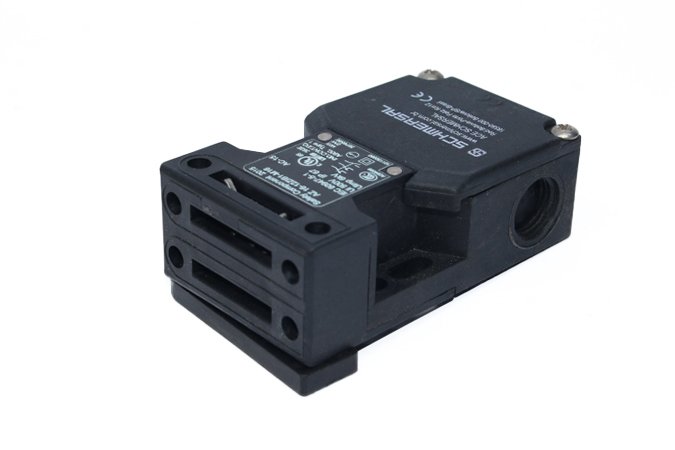

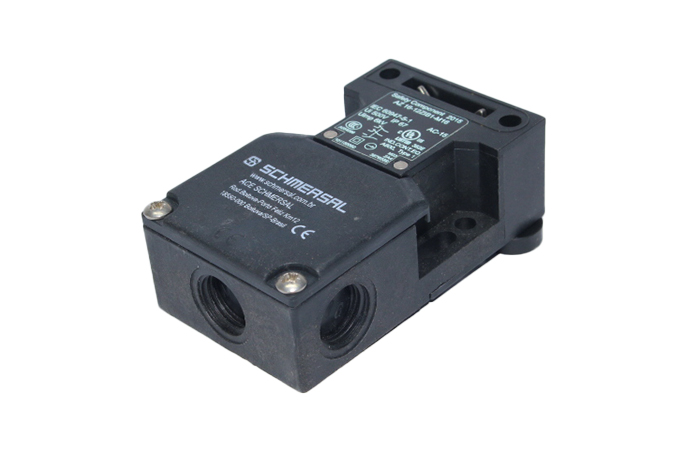

Schmersal Az 16-12Zib1-M16 Safety Switch 101150050
We are NOT an authorized distributor for SCHMERSAL
- ManufacturerSCHMERSAL
- ModelAZ 16-12ZIB1-M16
- SKU054382
53 $
2 in stock
Description
Manufacturer: SCHMERSAL
Type: SAFETY SWITCH
Model: AZ 16-12ZIB1-M16
Part No: 101150050
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 6 kV
Degree of pollution: 3
Thermal test current: 10 A
Number of auxiliary contacts: 1
Number of safety contacts: 2
Number of cable glands: 3
Actuating radius, minimum: 250 mm
Positive break travel: 8 mm
Positive break force per NC contact, minimum: 10 N
Positive break force, minimum: 20 N
Actuating speed, maximum: 2 m/s
Degree of protection: IP67
Ambient temperature: -30 … +80 °C
