Specifications
| Weight | 0.450 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 084139 |
| Condition |

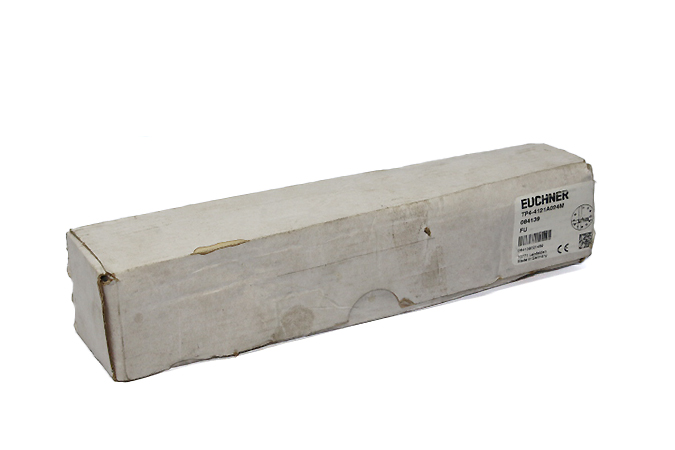

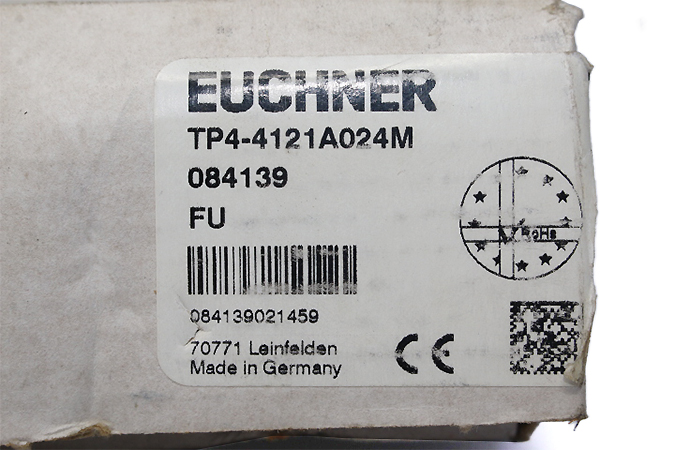

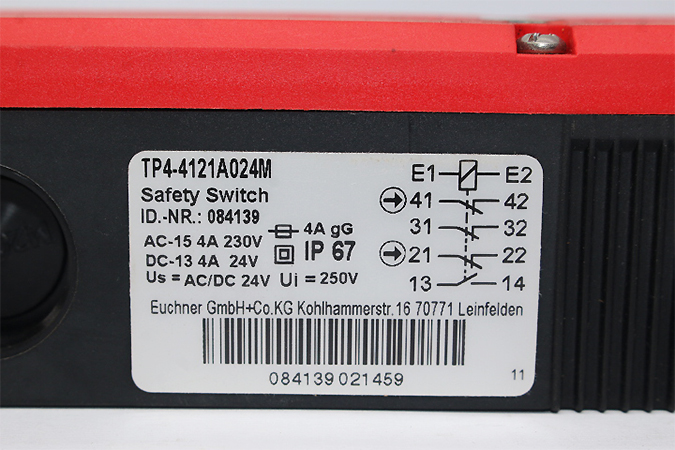

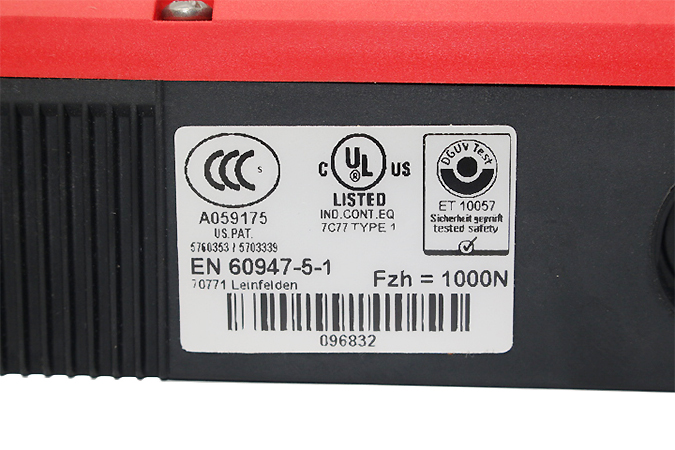

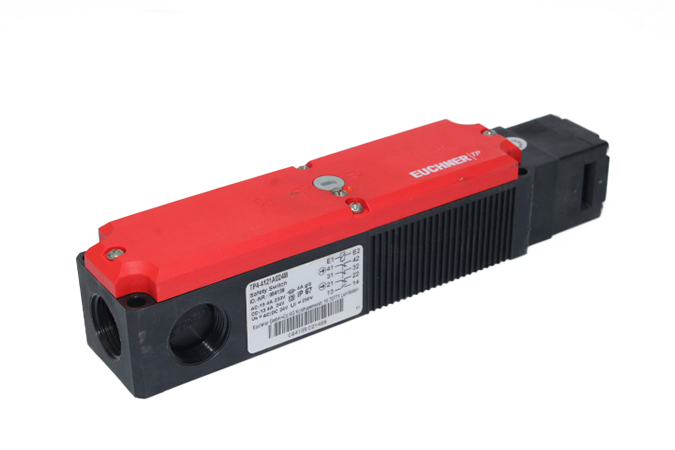

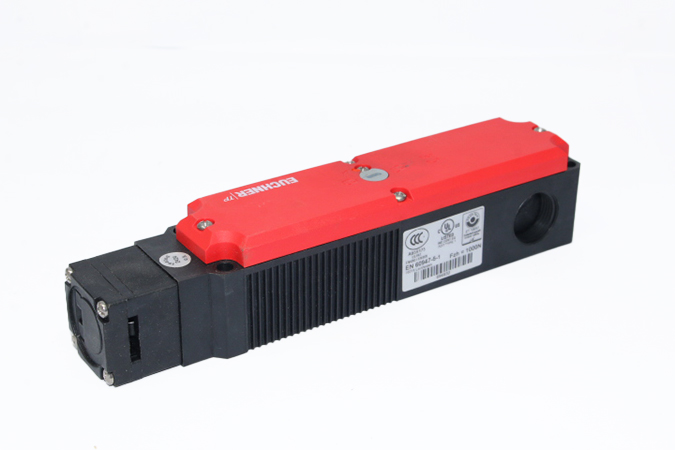

EUCHNER TP4-4121A024M Safety switch 084139
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelTP4-4121A024M
- SKU054374
79 $
1 in stock
Description
Manufacturer: EUCHNER
Type: Safety switch
Model: TP4-4121A024M
Part No.: 084139
Power consumption: 8 W
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Utilization category:
-DC-13: 4 A 24 V
-AC-15: 4 A 230 V
Solenoid operating voltage: AC/DC 24 V -15% … +10%
thermal rated current: 4 A
Approach speed: max. 20 m/min
Number of door position NC contacts: 1
Number of door position NO contacts: 1
Number of guard lock monitoring positively driven contacts: 2
Degree of protection: IP67
Ambient temperature: -20 … +55 °C
