Specifications
| Weight | 0.600 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 090230 |
| Condition |

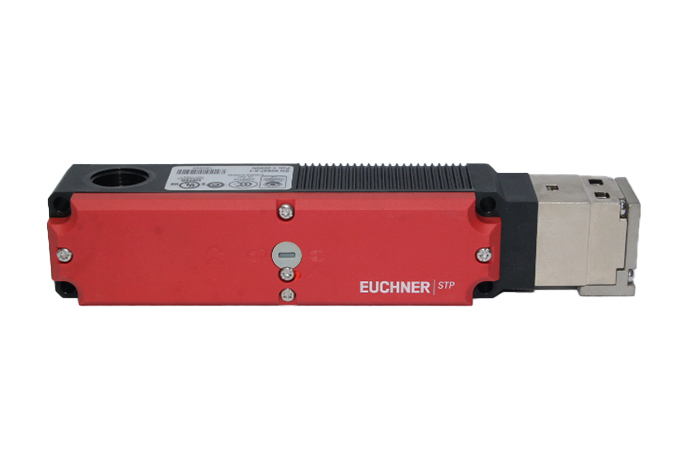

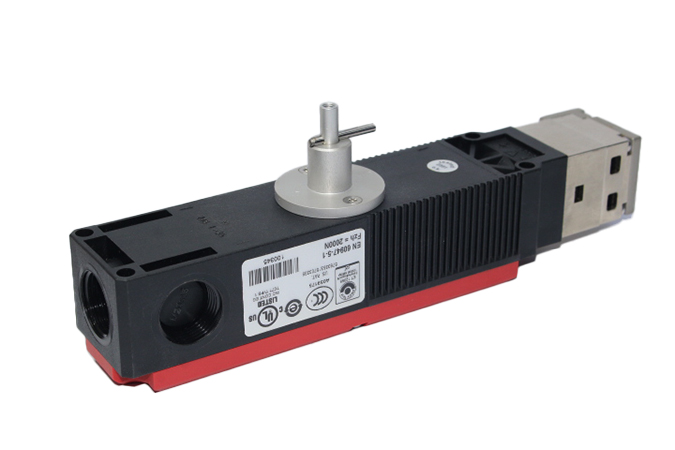

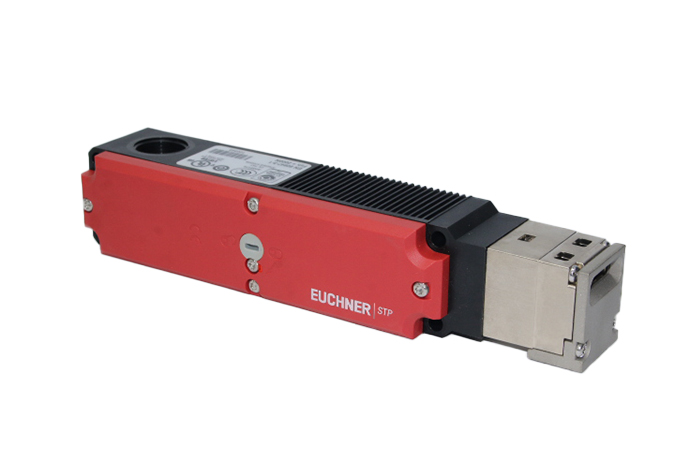

EUCHNER STPA3D-2131A024MC1743 Safety switch 090230
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelSTPA3D-2131A024MC1743
- SKU054380
420 $
1 in stock
Description
Manufacturer: EUCHNER
Type: Safety switch
Model: STPA3D-2131A024MC1743
Part No.: 090230
Power consumption: 8 W
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage: 50 V
Rated impulse withstand voltage Uimp: 2.5 kV
Utilization category:
-DC-13: 4 A 24 V
-AC-15: 4 A 50 V
Solenoid operating voltage: AC/DC 24 V -15% … +10%
Number of door position NC contacts: 1
Number of guard lock monitoring NO contacts: 1
Number of guard lock monitoring positively driven contacts: 2
Extraction force: 30 N
Actuation frequency max.: 1200 1/h
Actuating force: 35 N
Degree of protection: IP67
Ambient temperature: -20 … +55 °C
