Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Condition |

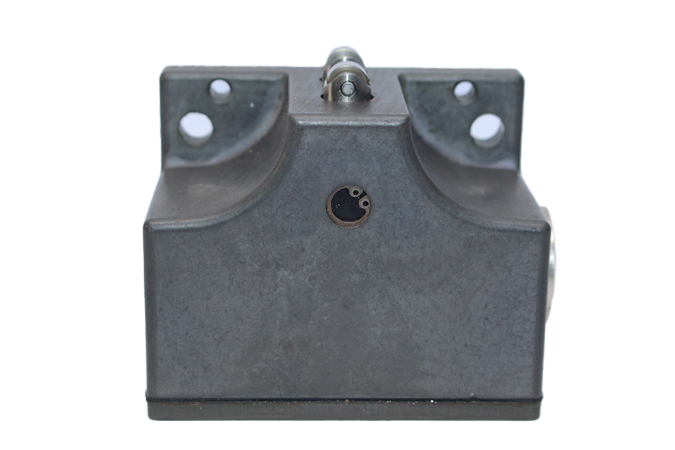

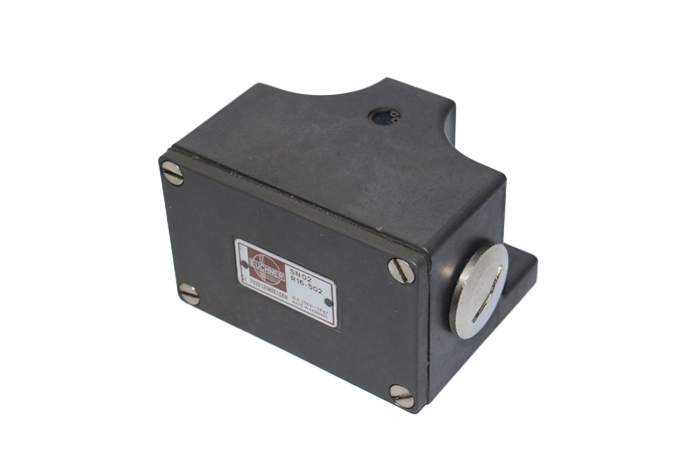

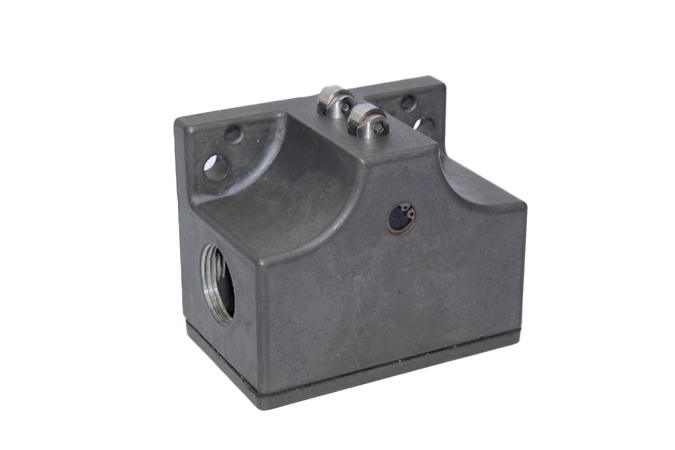

Euchner Sn02 R16-502 Limit Switch
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelSN02 R16-502
- SKU054449
238 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: EUCHNER
Type: LIMIT SWITCH
Model: SN02 R16-502
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Utilization category:
-DC-13 6 A 24 V
-AC-15 6 A 230 V
-AC-12 8 A 250 V
Switching current: min. at DC 12V min. 10 mA
thermal rated current Ith: 8 A
Approach speed: 0.01 … 80 m/min
Number NC contacts: 2
Number of switching elements: 2
Number of NO contacts: 2
Actuating force: min. 20 N
Degree of protection: IP67
Plunger spacing: 16 mm
Ambient temperature: -5 … +80 °C
