Specifications
| Weight | 0.350 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 090566 |
| Condition |

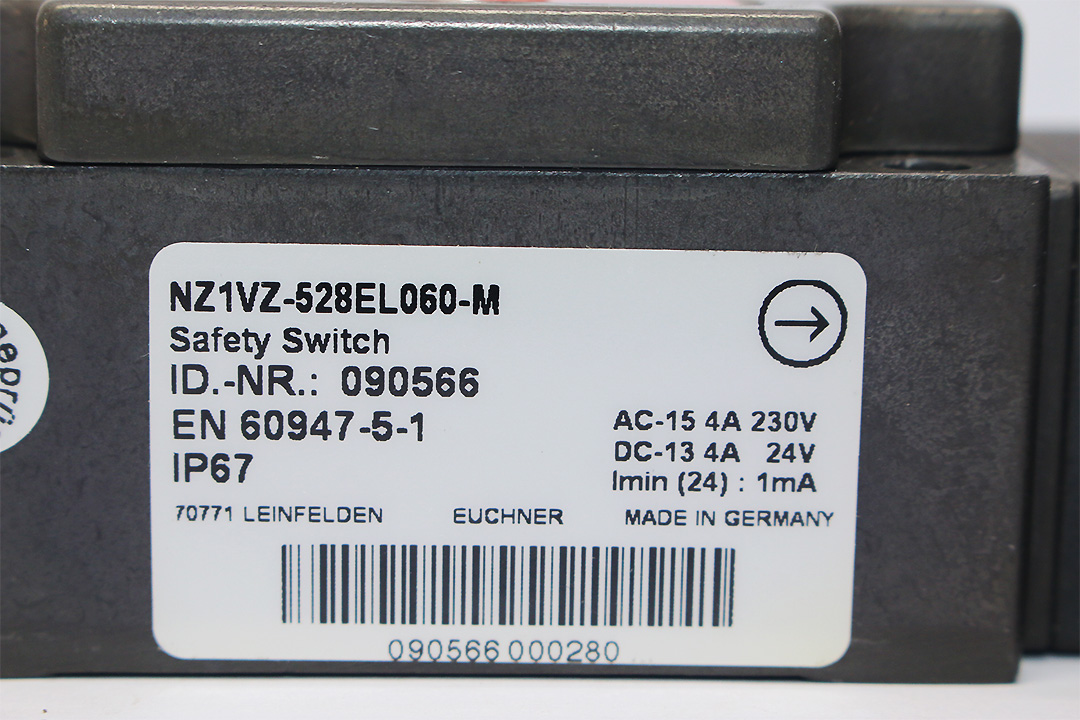

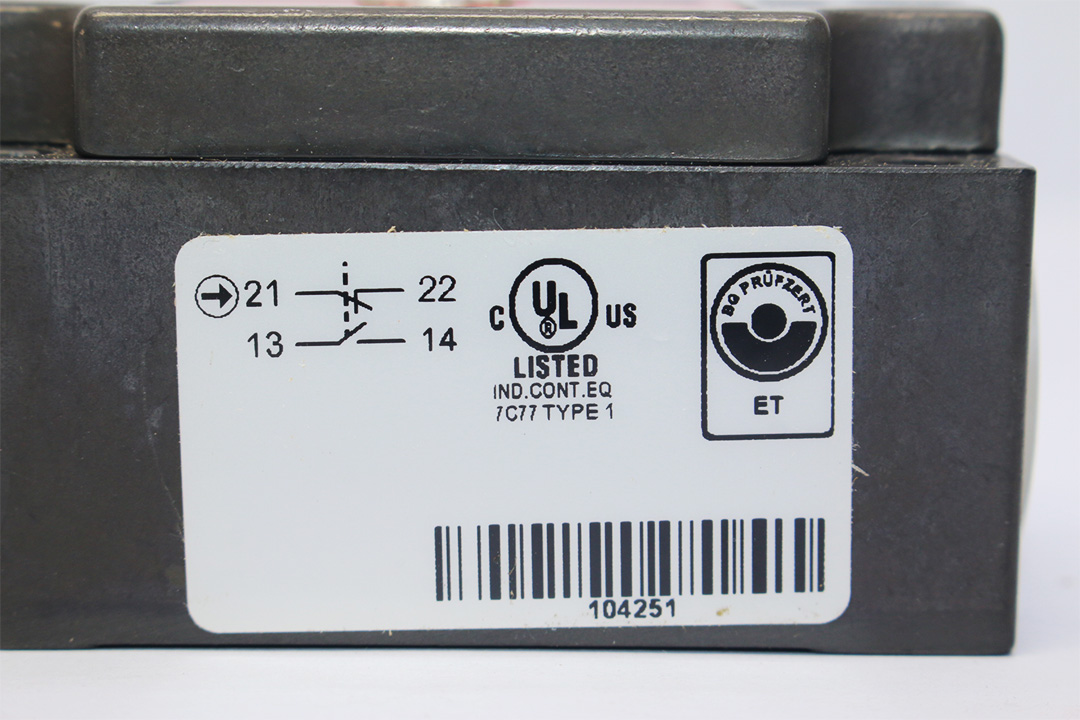

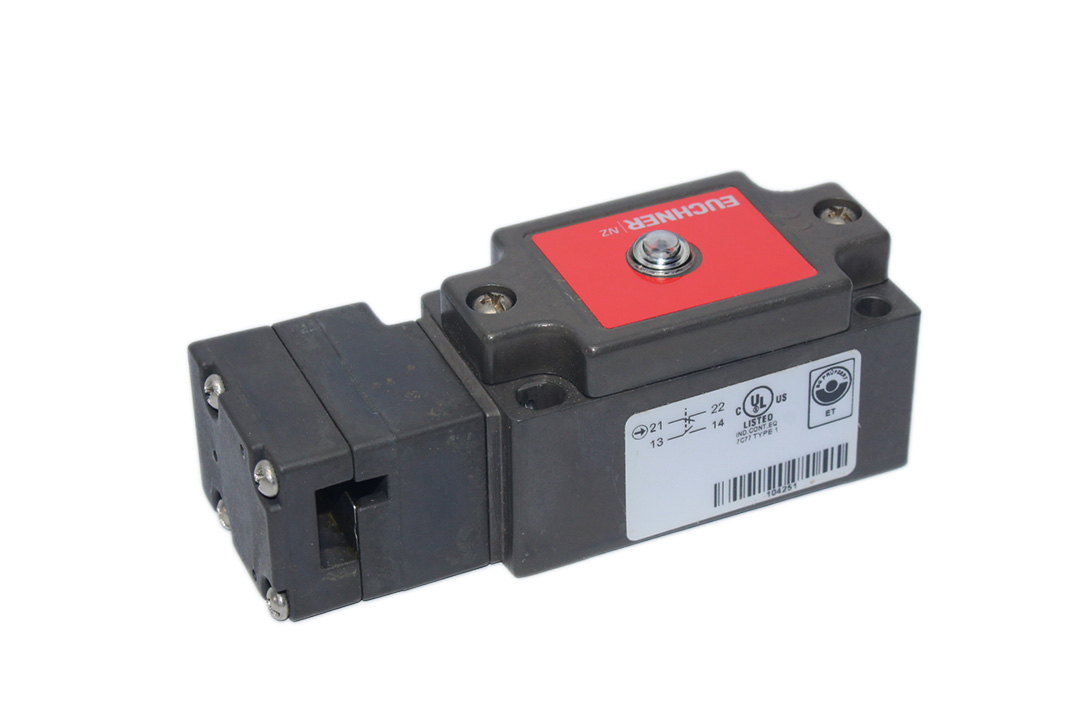

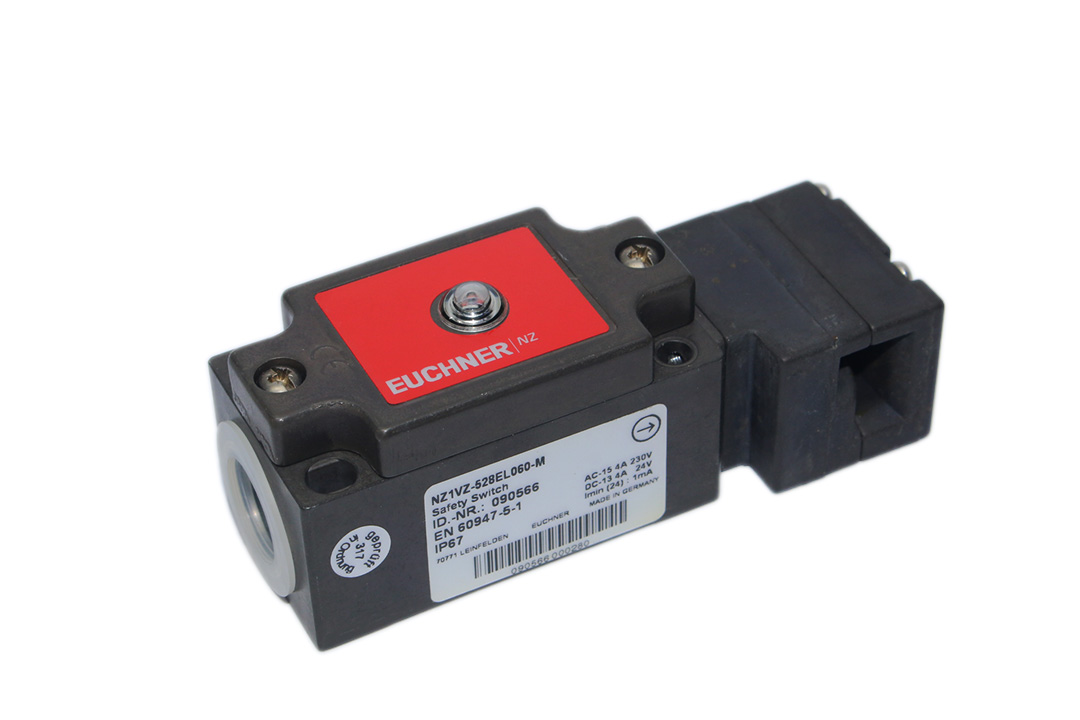

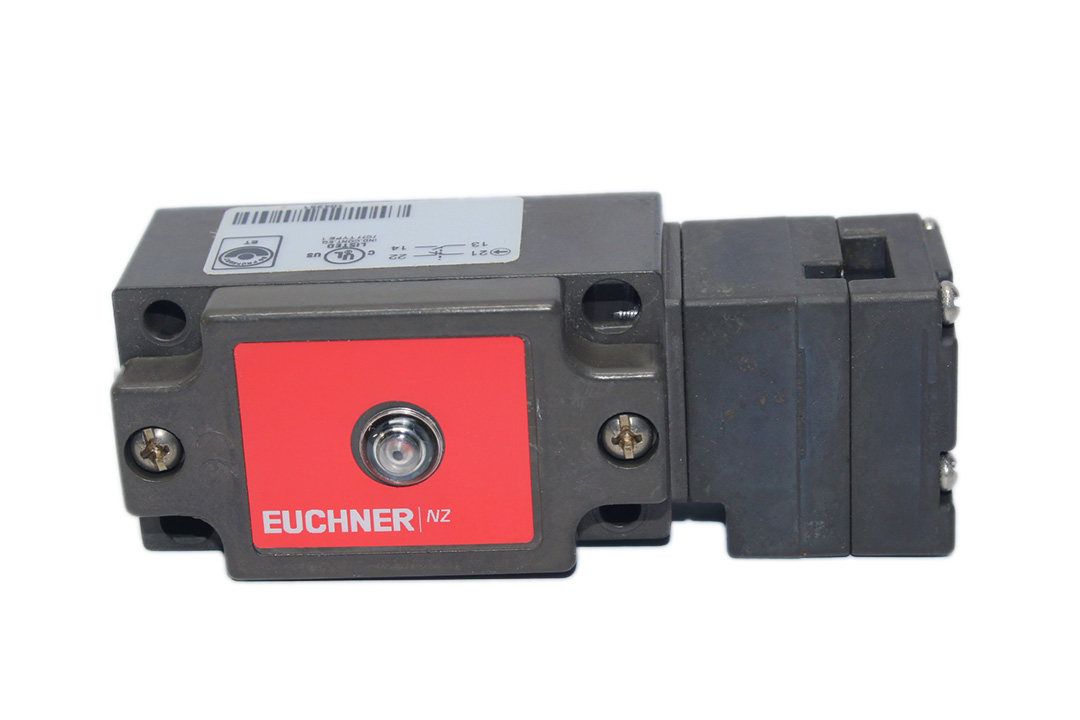

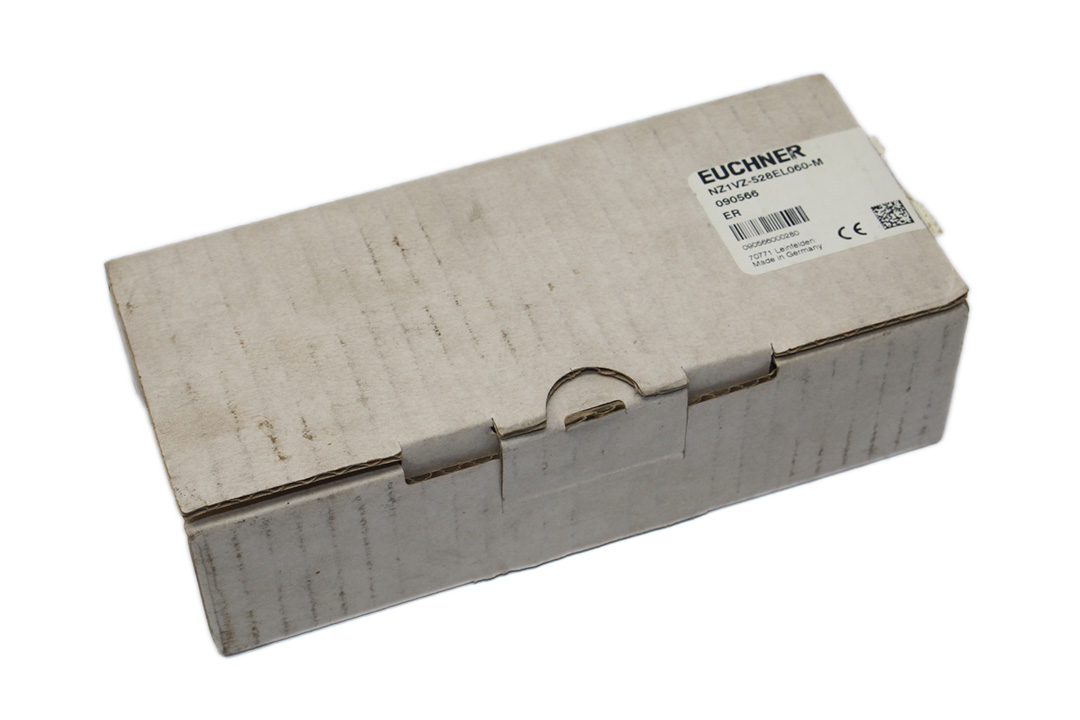

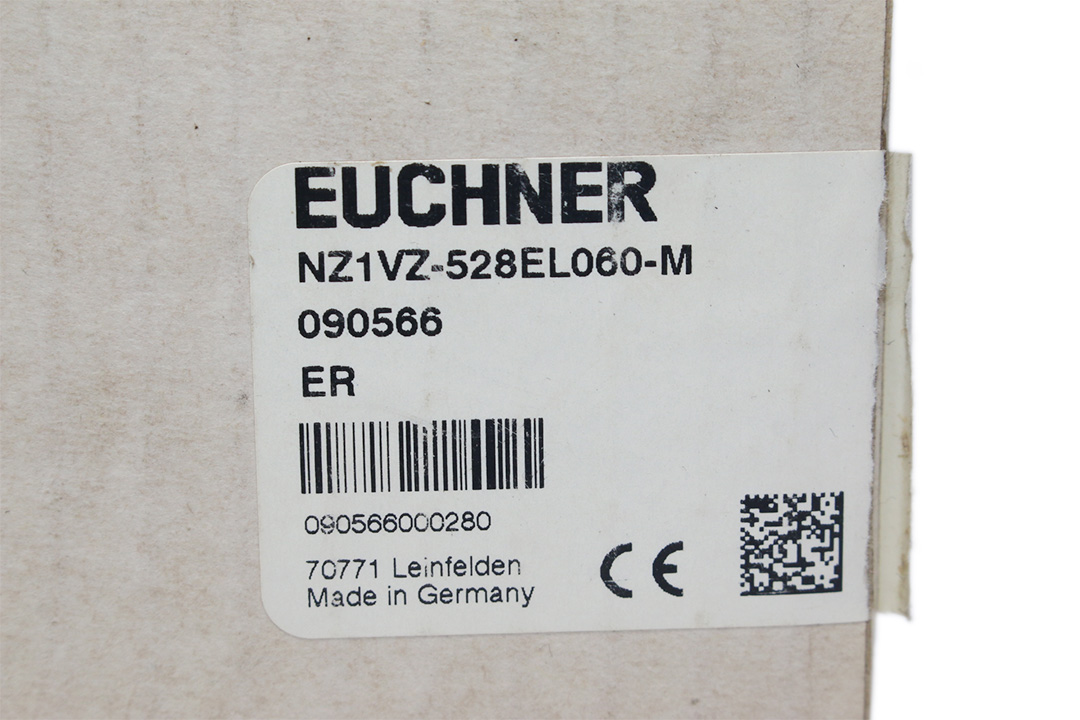

Euchner Nz1Vz-528El060-M Safety Switch 090566
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelNZ1VZ-528EL060-M
- SKU058312
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: EUCHNER
Type: SAFETY SWITCH
Model: NZ1VZ-528EL060-M
Part No: 090566
Approach speed: max. 20 m/min
Approach direction: A
Connection type: 1 x M20 x 1.5
Number of door position NO contacts: 1
Number of door position positively driven contacts: 1
Extraction force: 35 N
Actuation frequency: max. 1200 1/h
Actuating force: 35 N
Installation orientation: any
Insertion depth: 52 mm
Mechanical life: 2 x 10⁶
Retention force: 8 N
Switching principle: Slow-action switching contact
Degree of protection: IP67
Ambient temperature: -25 … +80 °C
