Specifications
| Weight | 0.700 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 079300 |
| Condition |

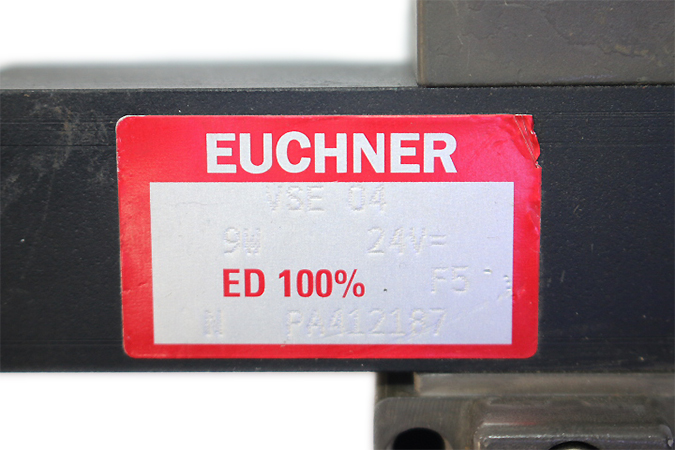

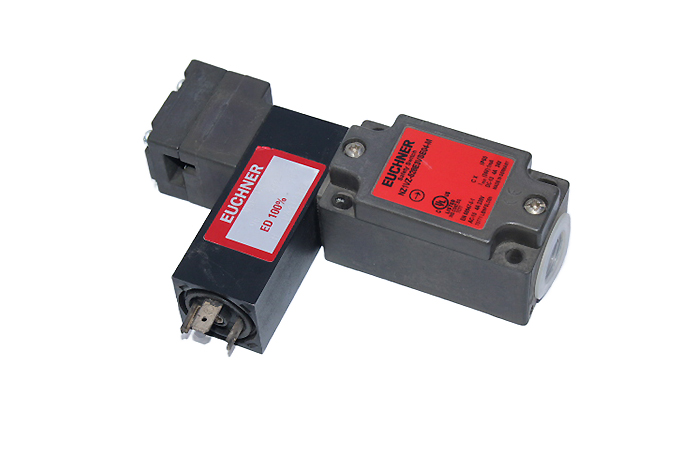

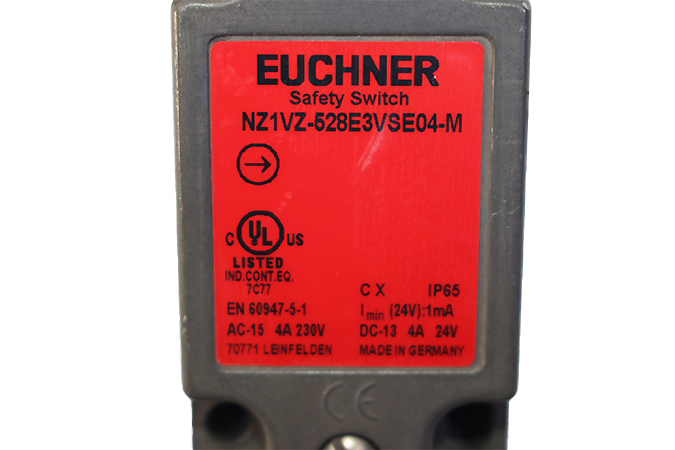

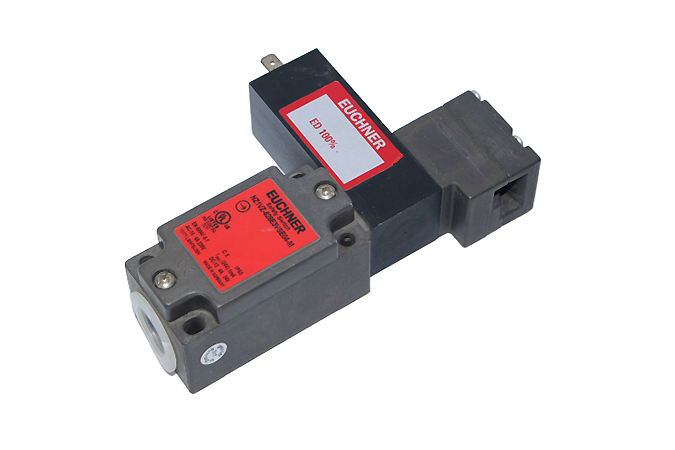

Euchner Nz1Vz-528E3Vse04-M Safety Switch 079300
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelNZ1VZ-528E3VSE04-M
- SKU054455
Quote on request
1 in stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: EUCHNER
Type: SAFETY SWITCH
Model: NZ1VZ-528E3VSE04-M
Part No: 079300
Connection cross section: 0.34 … 1.5 mm²
Rated insulation voltage: 250 V
Rated impulse withstand voltage: 2.5 kV
Utilization category:
-DC-13 4 A 24 V
-AC-15 4 A 230 V
Solenoid operating voltage: DC 24 V -15% … 10%
thermal rated current: 4 A
Number of door position NO contacts: 1
Number of door position positively driven contacts: 1
Extraction force: 40 N
Actuating force: 45 N
Switching principle: Slow-action switching contact
Degree of protection: IP65
Ambient temperature: -25 … +80 °C
