Specifications
| Weight | 0.350 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 089627 |
| Condition |

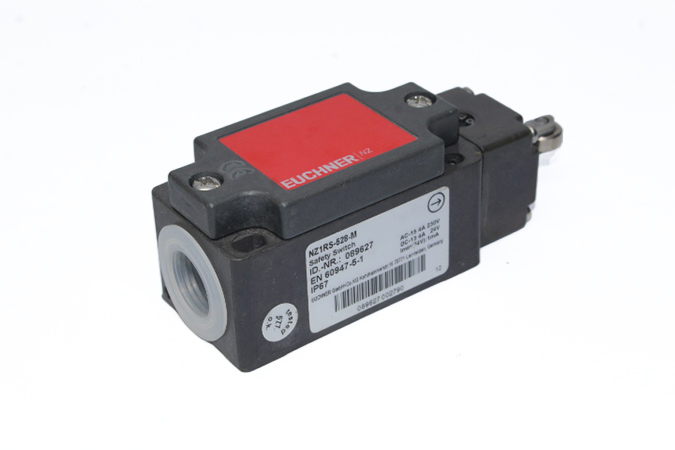

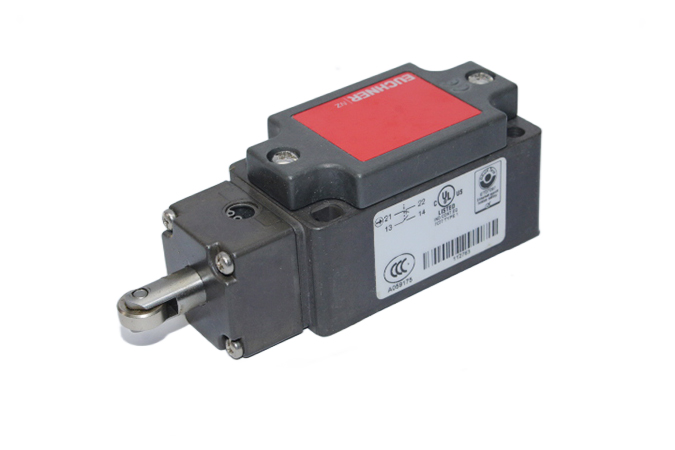

Euchner Nz1Rs-528-M Safety Switch 089627
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelNZ1RS-528-M
- SKU054365
38 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: EUCHNER
Type: SAFETY SWITCH
Model: NZ1RS-528-M
Part No.: 089627
Rated insulation voltage: 250 V
Rated impulse withstand voltage: 2.5 kV
Connection cross section: 0.34 … 1.5 mm²
Utilization category:
-AC-15: 4 A 230 V
-DC-13: 4 A 24 V
thermal rated current: 4 A
Approach speed: 0.1 … 20 m/min
Number of NO contacts: 1
Number of door position positively driven contacts: 1
Actuating force: 15 … 30 N
Degree of protection: IP67
Ambient temperature: -25 … +80 °C
Product Questions (3)
What types of spare parts do you offer?
We offer a wide range of spare parts including automotive, industrial, electronic, and appliance parts, both new and used.
How can I find a specific part on your website?
You can use our search bar at the top of the page or browse through categories to find the specific part you need.
Do used parts come with a warranty?
Used parts come with 2 month warranty.
