Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 085247 |
| Condition |

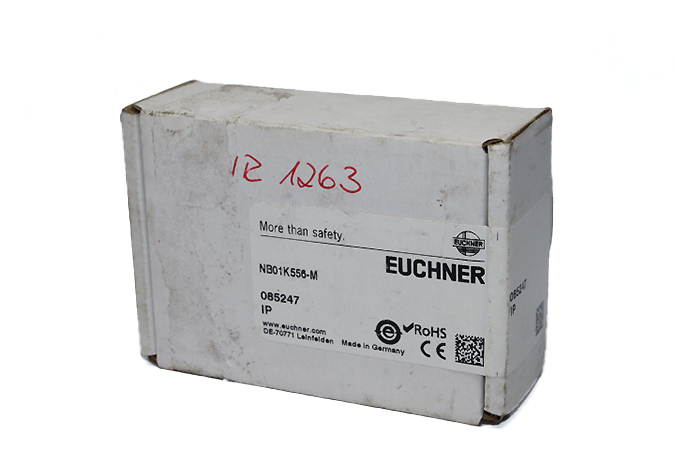

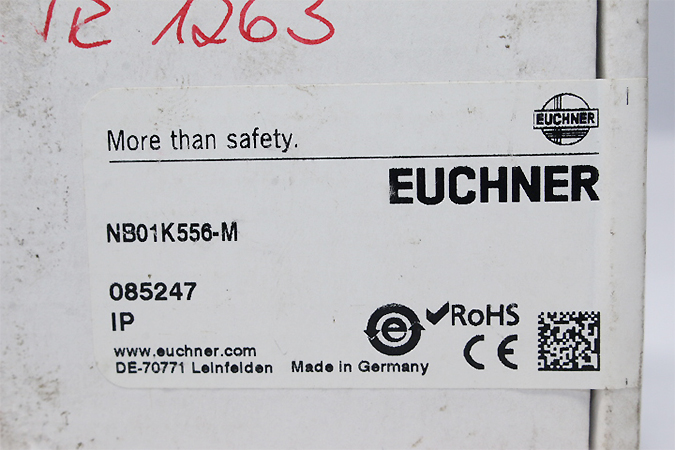

EUCHNER NB01K556-M Precision single limit switch 085247
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelNB01K556-M
- SKU054371
53 $
3 in stock
Description
Manufacturer: EUCHNER
Type: Precision single limit switchPrecision single limit switch
Model: NB01K556-M
Part No.: 085247
Rated insulation voltage: 250 V
Rated impulse withstand voltage: 2.5 kV
Connection cross section: 0.14 … 1 mm²
Utilization category:
-AC-15: 2 A 230 V
-DC-13: 2 A 24 V
Switching current:
-min. at DC 24V: 10 mA
thermal rated current: 6 A
pproach speed: 0.01 … 8 m/min
Number of door position NC contacts: 1
Number of door position NO contacts: 1
Actuating force: 15 … 20 N
Degree of protection: IP67
Ambient temperature: -5 … +80 °C
