Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 084903 |
| Condition |

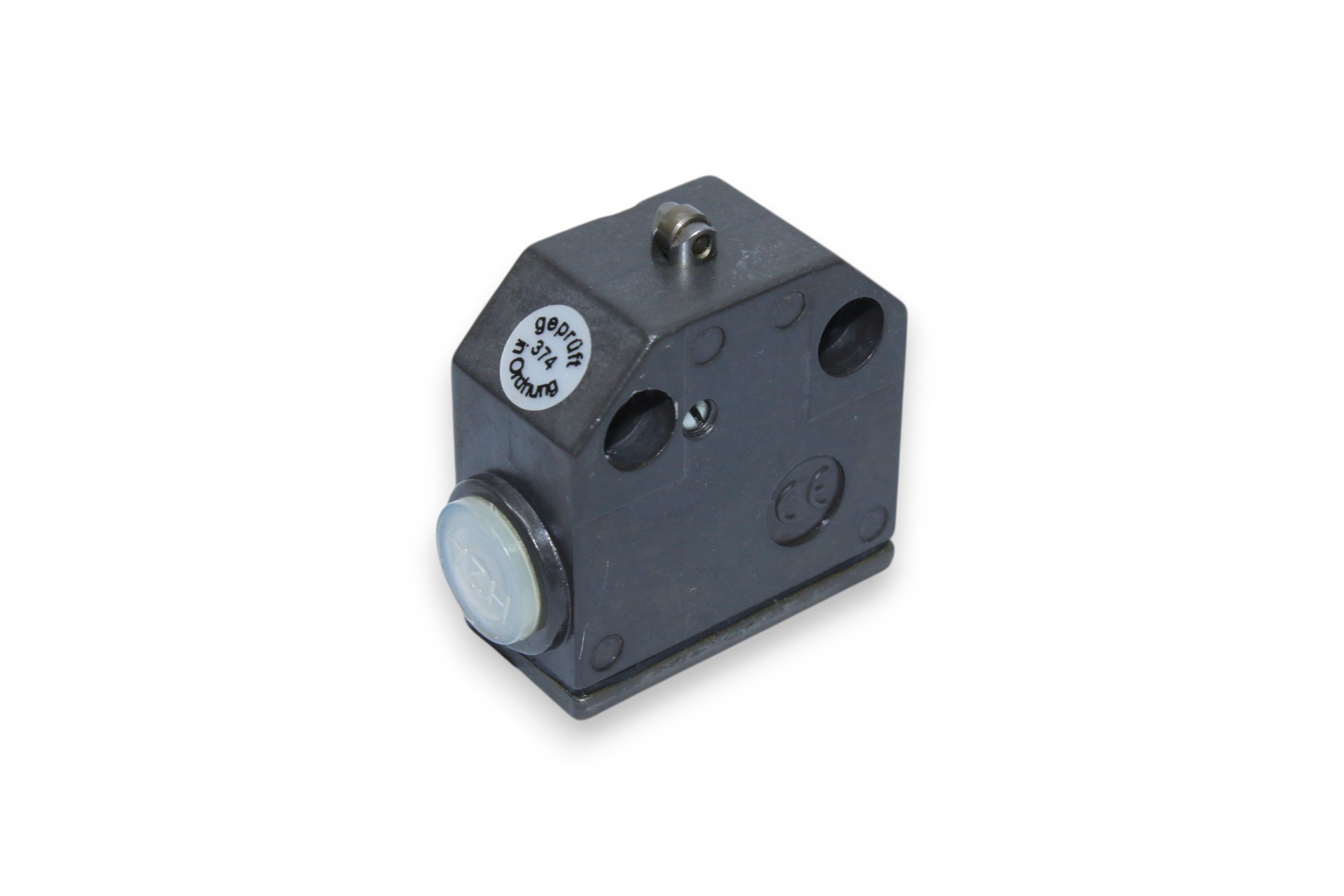

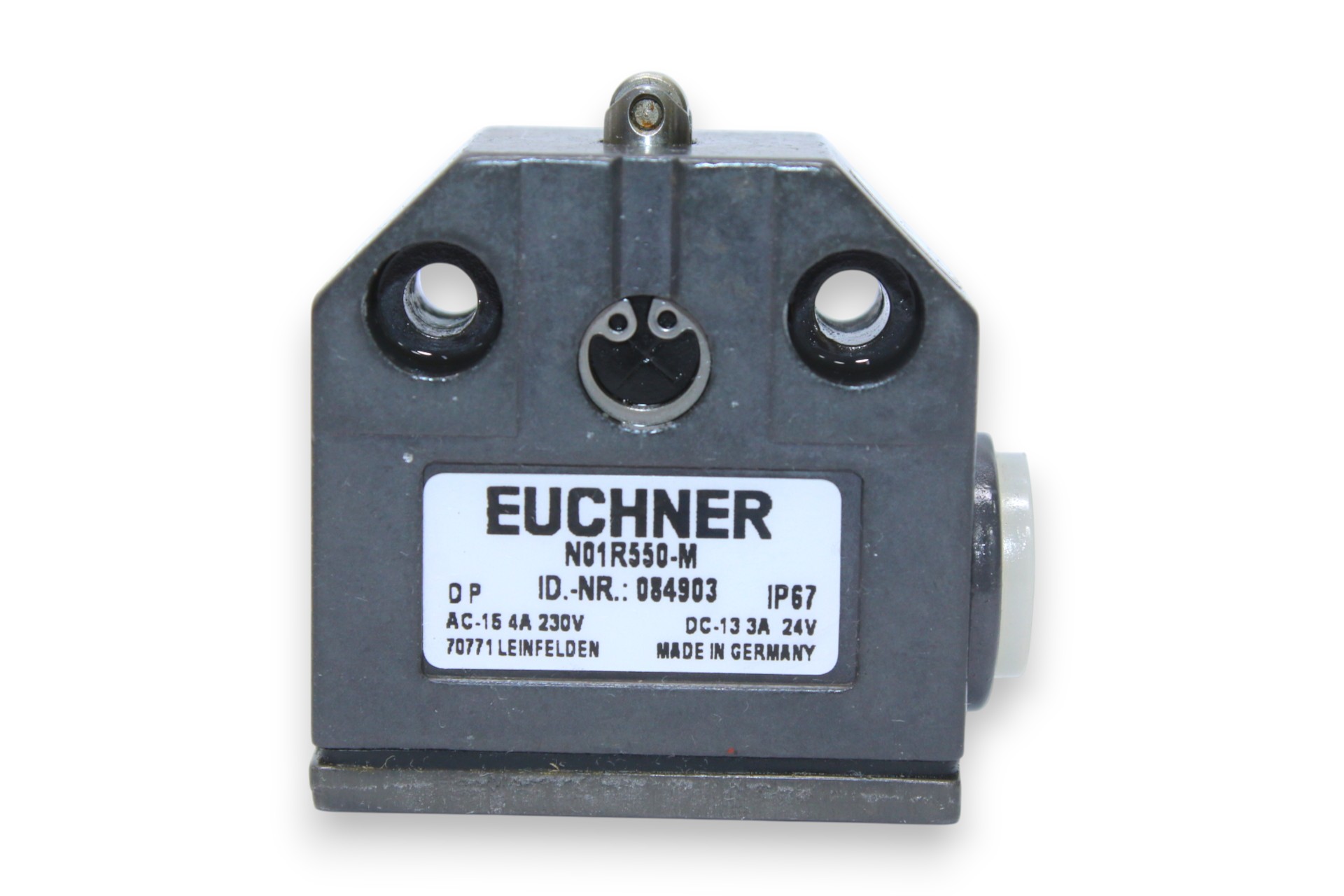

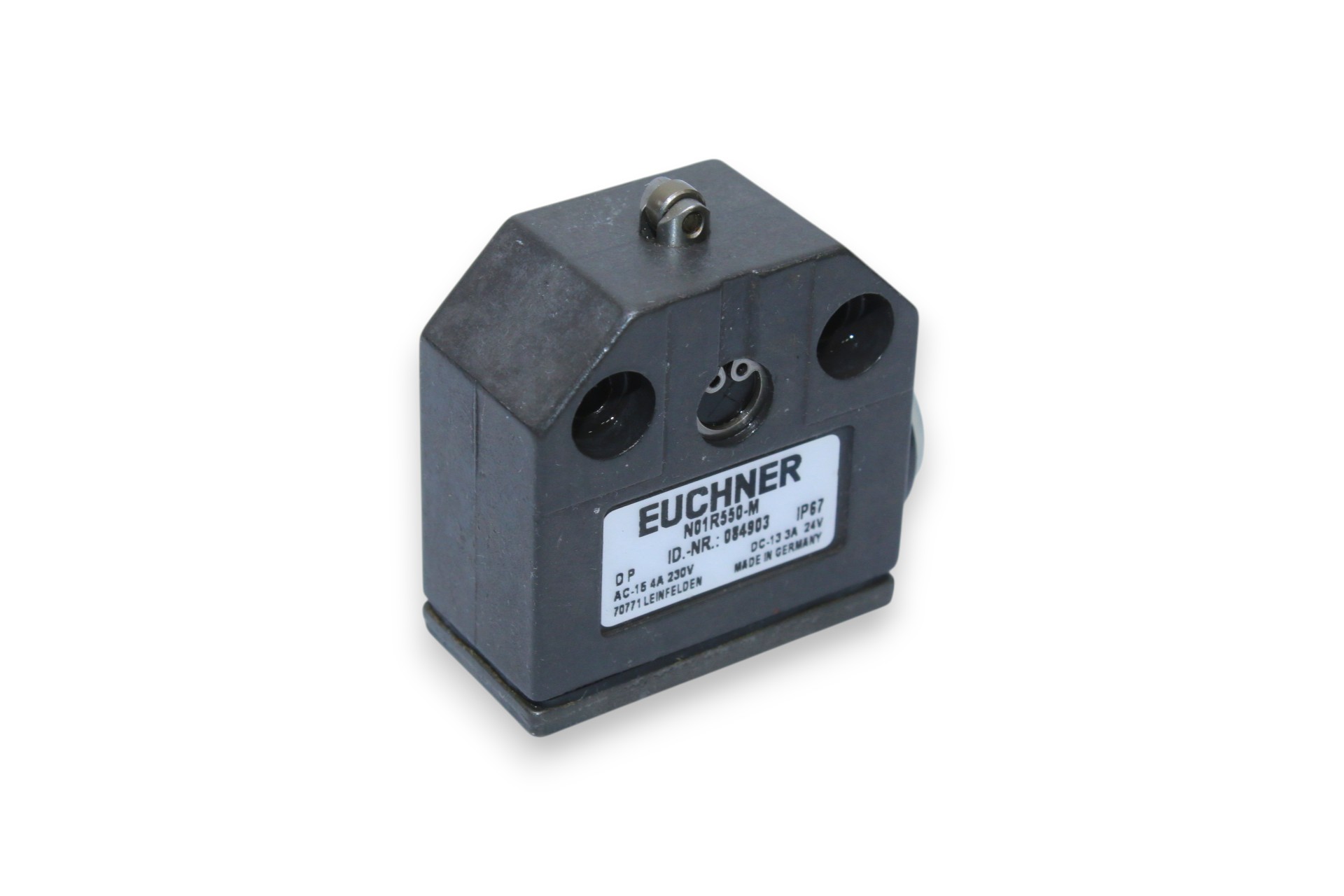

Euchner N01R550-M Limit Switch 084903
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelN01R550-M
- SKU067729
Quote on request
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: EUCHNER
Type: LIMIT SWITCH
Model: N01R550-M
Part No.: 084903
Connection cross section: 0.14 … 1 mm²
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Contact Rating:
-AC-15 2 A 230 V
-DC-13 2 A 24 V
Switching current min. at DC 24V: 10 mA
thermal rated current Ith: 6 A
Approach speed: 0.01 … 50 m/min
Connection type: 1 x M12 x 1.5
Number of door position NC contacts: 1 Changeover contact
Number of door position NO contacts: 1
Actuating element: Roller plunger
Actuating force: 15 … 20 N
Switching principle: Changeover contact with snap-action function
Degree of protection: IP67
Ambient temperature: -5 … +80 °C
Material
Contact: Silver alloy, gold flashed
Housing: Anodized die-cast alloy
