Specifications
| Weight | 0.600 kg |
|---|---|
| Manufacturer | Euchner |
| Model | |
| Part Number | 085919 |
| Condition |

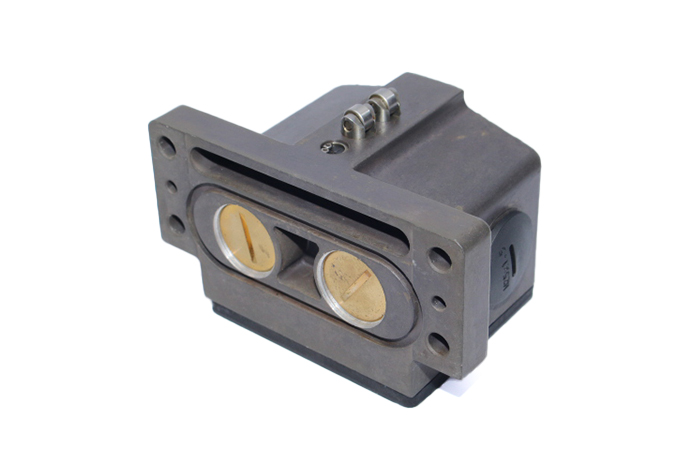

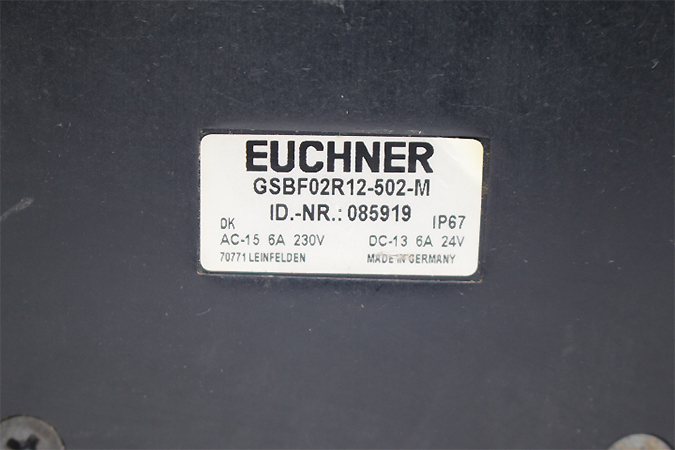

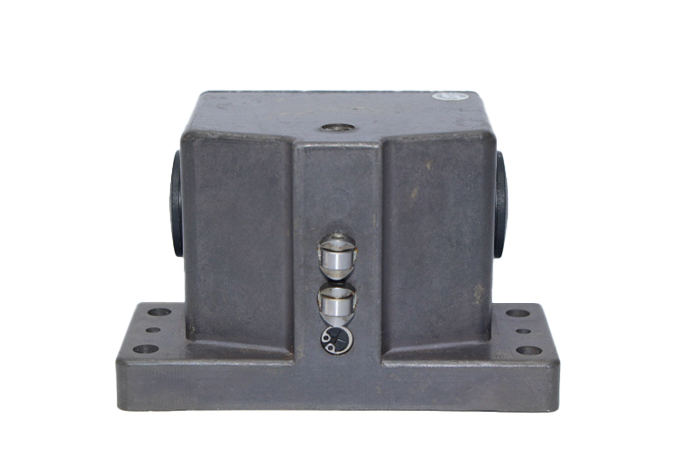

Euchner Gsbf02R12-502-M Limit Switch 085919
We are NOT an authorized distributor for Euchner
- ManufacturerEuchner
- ModelGSBF02R12-502-M
- SKU054450
210 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: EUCHNER
Type: LIMIT SWITCH
Model: GSBF02R12-502-M
Part No.: 085919
Connection cross section: 0.34 … 1.5 mm
Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Utilization category :
-AC-15 6 A 230 V
-DC-13 6 A 24 V
-AC-12 8 A 250 V
Switching current: min. at DC 12V min. 10 mA
thermal rated current Ith: 8 A
Approach speed: 0.01 … 80 m/min
Number NC contacts: 2
Number of switching elements: 2
Number of NO contacts: 2
ctuating force: min. 20 N
Degree of protection: IP67
Plunger spacing: 12 mm
Ambient temperature: -5 … +80 °C
