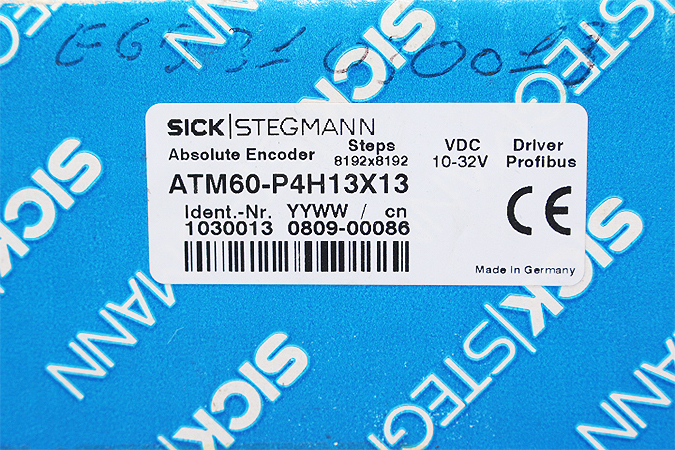

Sick Atm60-P4H13X13 Absolute Encode 1030013
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK ATM60-P4H13X13 ABSOLUTE ENCODE 1030013
- SKU051634
Quote on request
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: SICK
Type: ABSOLUTE ENCODE
Model: ATM60-P4H13X13
Part No: 1030013
Number of steps per revolution (max. resolution): 8,192 (13 bit)
Number of revolutions: 8,192 (13 bit)
Max. resolution (number of steps per revolution x number of revolutions): 13 bit x 13 bit (8,192 x 8,192)
Measuring step: 0.043°
Error limits G: ± 0.25°
Repeatability standard deviation σr: 0.1°
Supply voltage: 10 … 32 V
Initialization time: 1,250 ms
Communication interface: PROFIBUS DP
Communication Interface detail: DPV0
Data protocol: Profile for encoders (07hex) – Class 2
Address setting: 0 … 127, DIP switches or protocol
Data transmission rate (baud rate): 9.6 kBaud … 12 MBaud, automatic detection
Shaft diameter: 10 mm
Shaft length: 19 mm
Enclosure rating: IP67, with shaft seal
Operating temperature: -20 … 85 °C
