Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

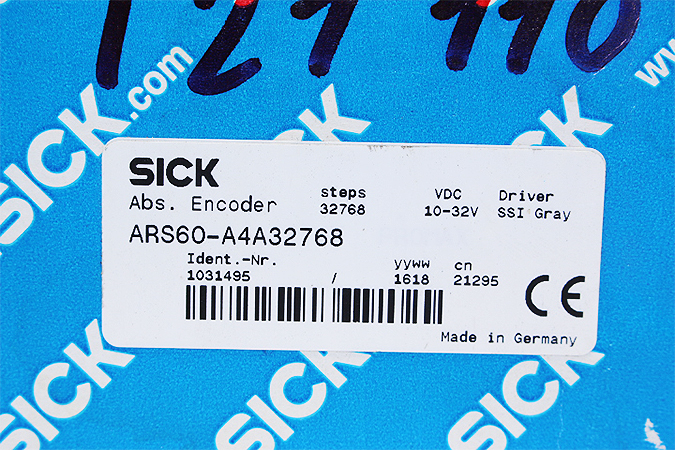

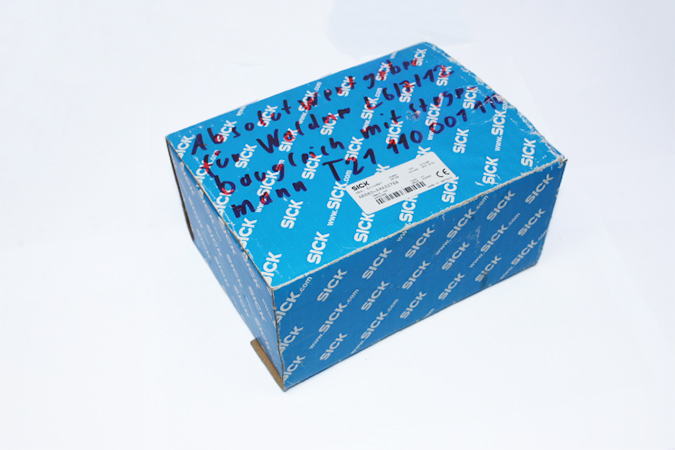

Sick Ars60-A4A32768 Absolute Encoder 1031495
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK ARS60-A4A32768 ABSOLUTE ENCODER 1031495
- SKU051598
332 $
2 in stock
Description
Manufacturer: SICK
Type: ABSOLUTE ENCODER
Model: ARS60-A4A32768
Part No: 1031495
Number of steps per revolution (max. resolution): 32,768 (15 bit)
Measuring step: 360° /number of steps
Initialization time: 80 ms
Code type: Gray
Measured value backlash: 0.005°
Response threshold: 0.003°
Connection type: Male connector, M23, 12-pin, radial
Supply voltage: 10 … 32 V
Mechanical design: Solid shaft, face mount flange
Shaft diameter: 10 mm
Shaft length: 19 mm
Enclosure rating: IP65
Operating temperature range: –20 °C … +85 °C
