Specifications
| Weight | 0.25 kg |
|---|---|
| Manufacturer | SICK |
| Model | |
| Condition |

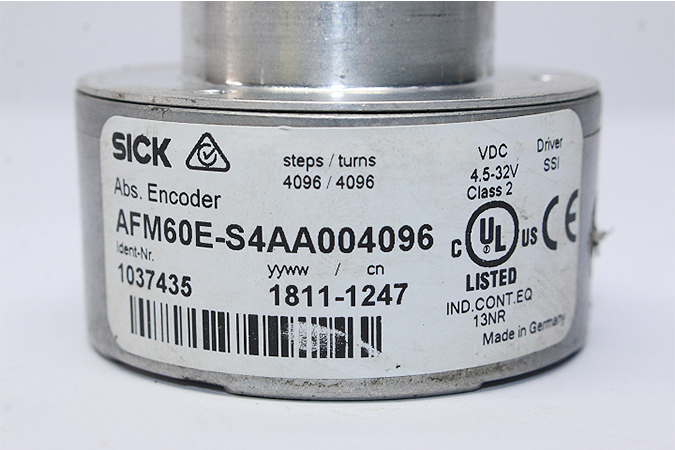

Sick Afm60E-S4Aa004096 Absolute Encoder 1037435
We are NOT an authorized distributor for SICK
- ManufacturerSICK
- ModelSICK AFM60E-S4AA004096 ABSOLUTE ENCODER 1037435
- SKU051602
236 $
5 in stock
Description
Manufacturer: SICK
Type: ABSOLUTE ENCODER
Model: AFM60E-S4AA004096
Part No: 1037435
Max. resolution (number of steps per revolution x number of revolutions): 12 bit x 12 bit (4,096 x 4,096)
Error limits G: 0.2°
Repeatability standard deviation σr: 0.002°
Supply voltage: 4.5 … 32 V DC
Power consumption: ≤ 0.7 W (without load)
Communication interface: SSI
Initialization time: 50 ms
Code type: Gray
Code sequence parameter adjustable: CW/CCW (V/R̅) parameter adjustable

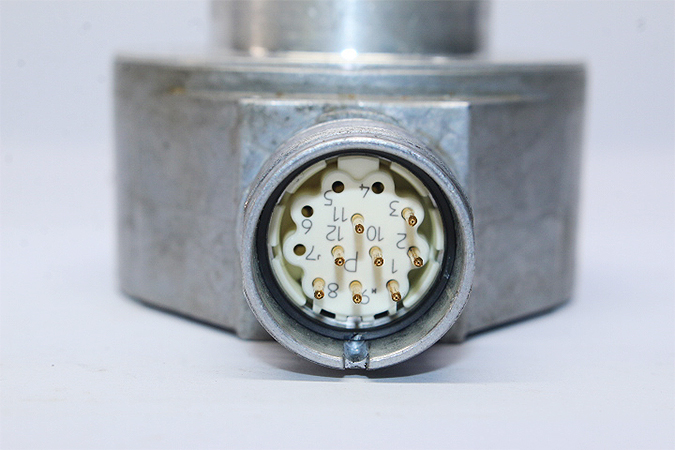

Connection type: Male connector, M23, 12-pin, radial

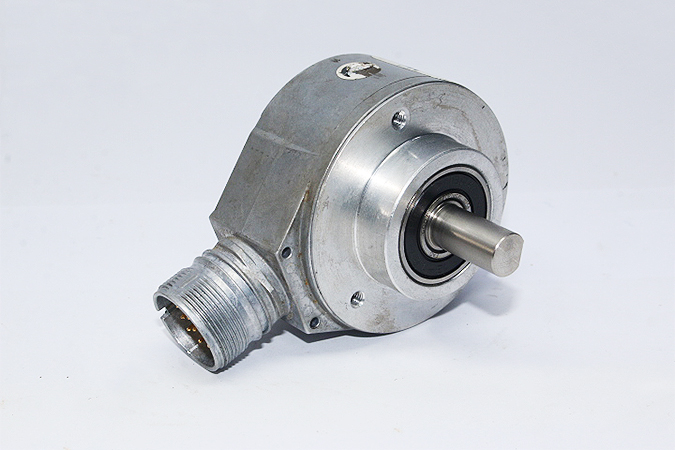

Mechanical design: Solid shaft, face mount flange
Shaft diameter: 10 mm
Wavelength: 19 mm
Operating temperature range: 0 °C … +85 °C
Enclosure rating: IP65, shaft side, IP67, housing side
