Specifications
| Weight | 0.4 kg |
|---|---|
| Manufacturer | SEW |
| Model | SEW EV1R,1857118 INCREMENTAL ENCODER ROD 466 1024 30B10-2B 341 199-01 |
| Condition |

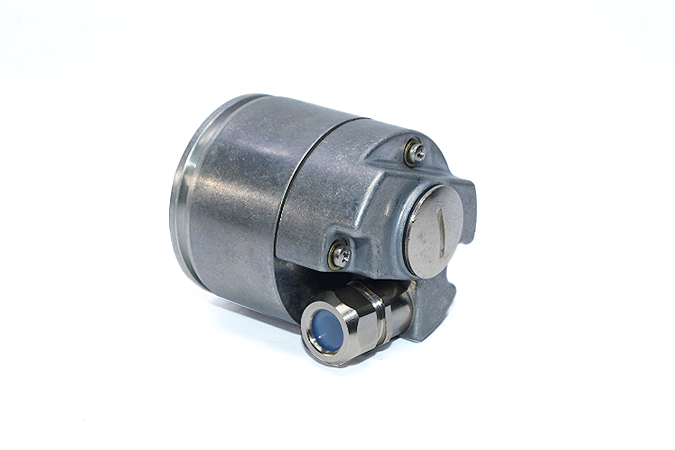

Sew Ev1R,1857118 Incremental Encoder Rod 466 1024 30B10-2B 341 199-01
We are NOT an authorized distributor for SEW
- ManufacturerSEW
- ModelSEW EV1R,1857118 INCREMENTAL ENCODER ROD 466 1024 30B10-2B 341 199-01
- SKU055176
540 $
1 in stock
Description
Manufacturer: SEW
Type: INCREMENTAL ENCODER

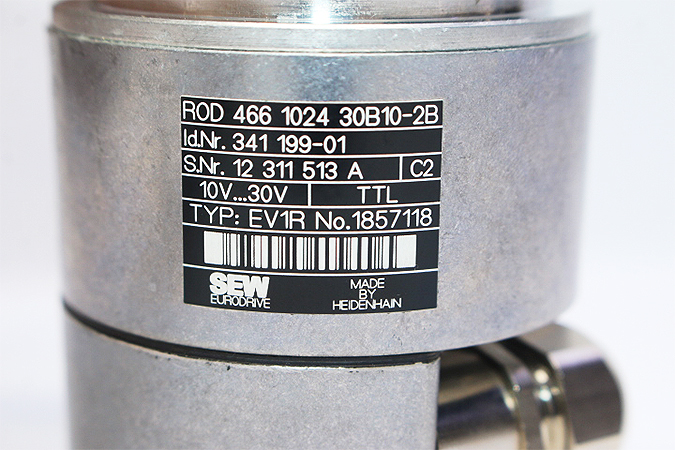

Model: ROD 466 1024 30B10-2B
Designation: EV1R
Installed to: DT71-DV225, CT71-200CV
Voltage supply: 10 … 30 VDC
Resolution: 1024 Pulse per revolution (PPR)
Max. Current consumption: 180 mA
Signal Output: TTL (RS 422)
Max speed: 6000 rpm
Max. Pulse Frequency: 120 kHz

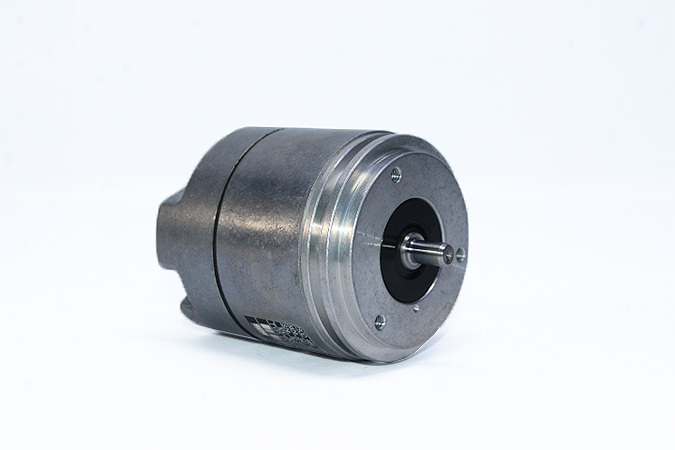

Shaft Design: Solid shaft
Shaft diameter: 6 mm
Protection Class: IP 66
