Specifications
| Weight | 0.5 kg |
|---|---|
| Manufacturer | SEW |
| Model | |
| Condition |

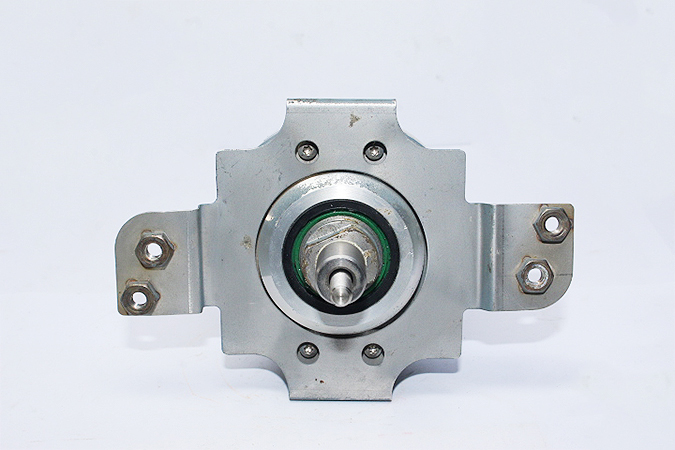

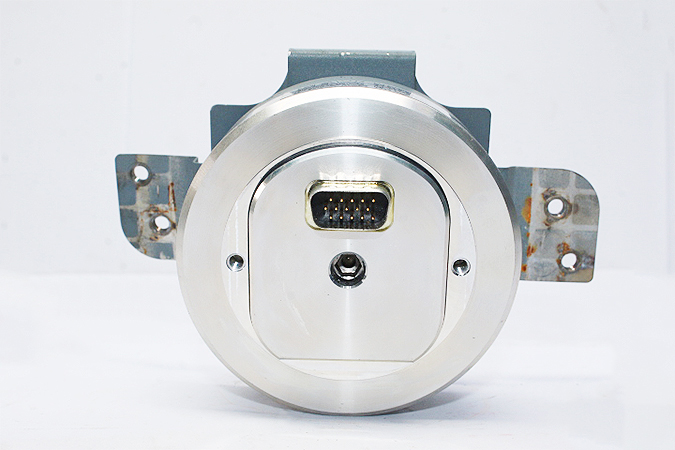

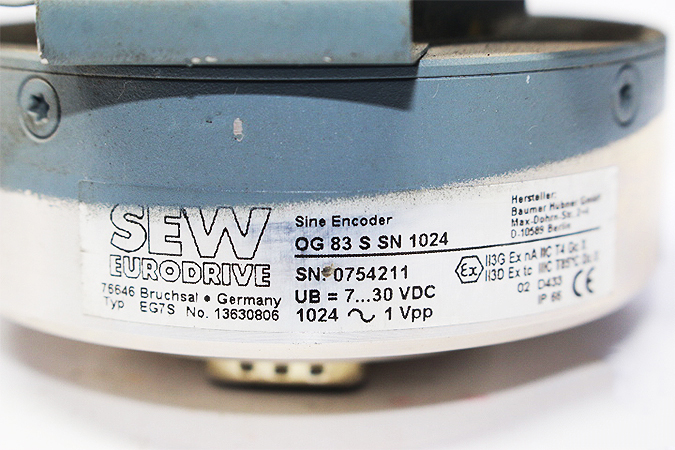

Sew Eg7S;13630806 Og 83 S Sn 1024 Sine Encoder
We are NOT an authorized distributor for SEW
- ManufacturerSEW
- ModelSEW EG7S;13630806 OG 83 S SN 1024 SINE ENCODER
- SKU051927
515 $
3 in stock
Description
Manufacturer: SEW
Type: Incremental Encoder
Model: OG 83 S SN 1024
Part No.: EG7S
No.: 13630806
For Motor: DR160-225
Supply Voltage: 7…30 VDC
Max. Current Consumption: 140 mA
Output Current Per Track: 10 mA
Max. Speed: 6000 min-1
Max. Pulse Frequency: 150 kHz
Phase Angle: 90° ± 3°
Data Memory: 1920 bytes
Signal Output: Sin/Cos
Motor Shaft Type: 14 mm Bore with M6 End Thread
Protection Class: IP66
