Specifications
| Weight | 0.550 kg |
|---|---|
| Manufacturer | POSITAL |
| Model | |
| Condition |

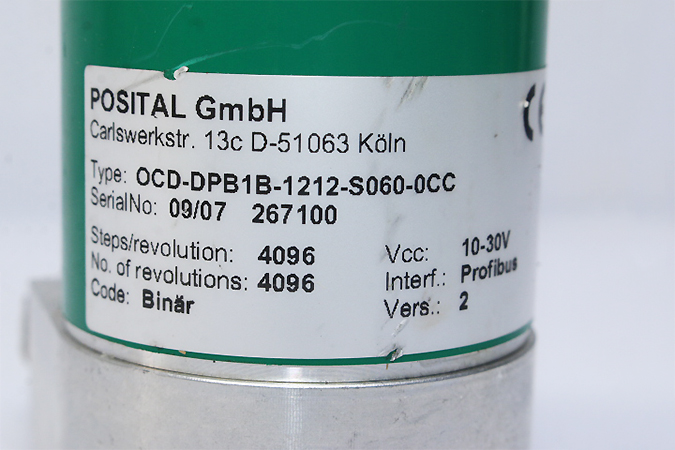

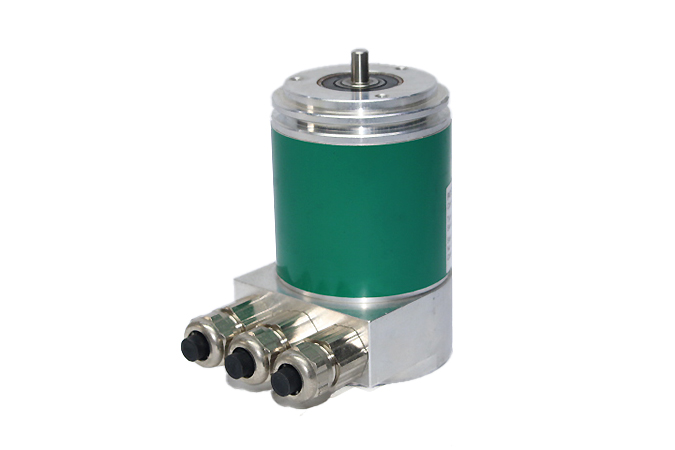

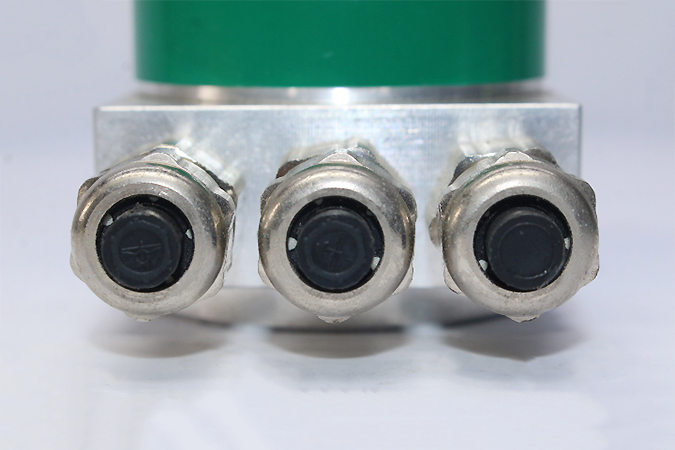

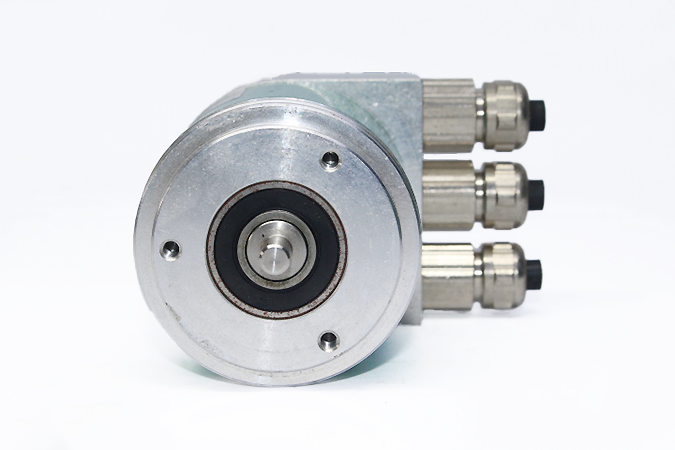

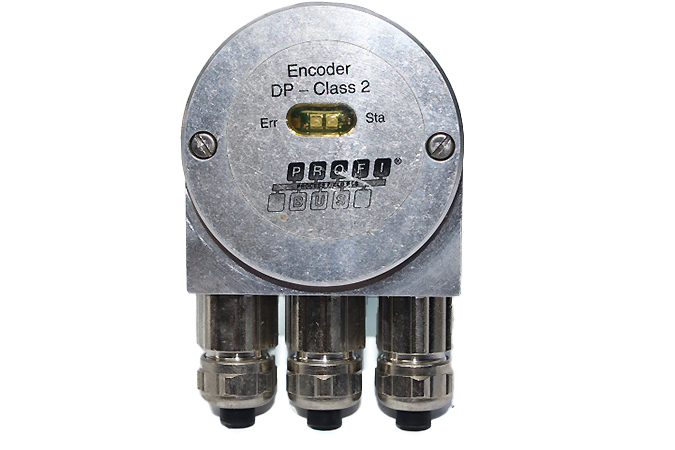

POSITAL OCD-DPB1B-1212-S060-0CC Absolute Rotary Encoder
We are NOT an authorized distributor for POSITAL
- ManufacturerPOSITAL
- ModelOCD-DPB1B-1212-S060-0CC
- SKU051828
264 $
Out of stock
Pricing available on request — add this part to your RFQ list or name your offer price.
Description
Manufacturer: POSITAL
Type: Absolute Rotary Encoder
Model: OCD-DPB1B-1212-S060-0CC
Resolution: 4096 Pulse
Supply Voltage: 10 – 30 VDC
Current Consumption: ≤ 115 mA @ 10 V DC, ≤ 50 mA @ 30 V DC
Power Consumption: ≤ 1.5 W
Start-Up Time: < 1 s
Resolution Singleturn: 12 bit
Resolution Multiturn: 12 bit
Code: Binary
Protection Class: IP65
Operating Temperature: -40…+85 °C
Shaft Type: Solid, Length = 10 mm
Shaft Diameter: ø 6 mm (0.24″)
