Specifications
| Weight | 0.400 kg |
|---|---|
| Manufacturer | IFM |
| Model | |
| Part Number | RV-3600-I24/L5 |
| Condition |

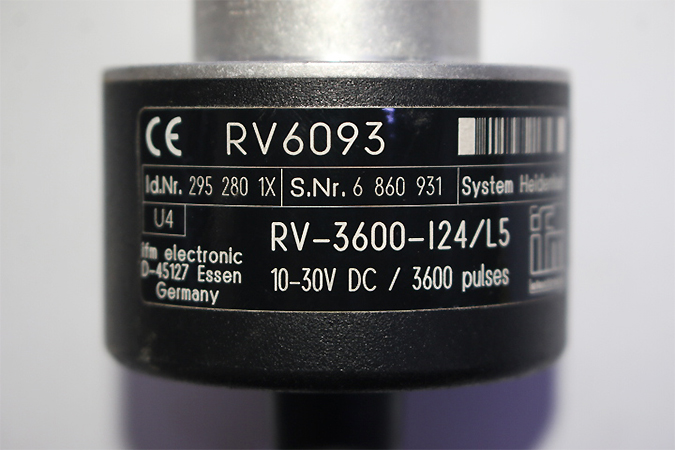

Ifm Rv6093 Incremental Encoder Rv-3600-I24/L5
We are NOT an authorized distributor for IFM
- ManufacturerIFM
- ModelRV6093
- SKU051752
232 $
1 in stock
Description
Manufacturer: IFM
Type: Incremental encoder with solid shaft
Model: RV6093
Part No: RV-3600-I24/L5
Technical Specifications:
Resolution: 3600 resolution

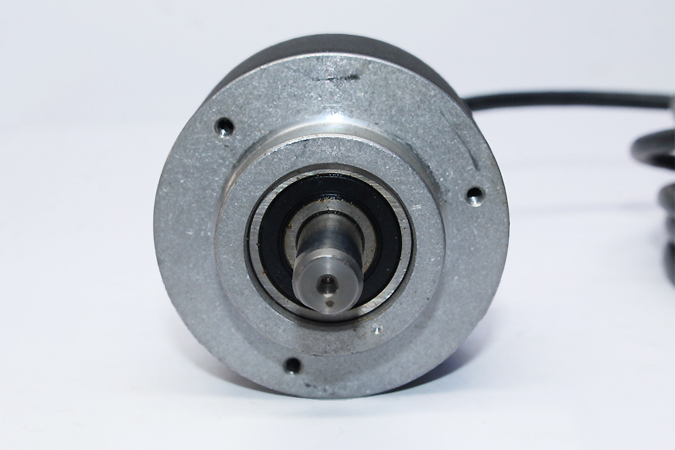

Shaft design: solid shaft
Shaft diameter [mm]: 10
Operating voltage [V]: 10…30 DC
Current consumption [mA]: < 150
Protection: IP 64; (on the housing: IP 67; on the shaft: IP 64)
Dimensions [mm]: Ø 58 / L = 46.7
Max. revolution, mechanical [U/min]: 12000
Max. starting torque [Nm]: 1
Reference temperature torque [°C]: 20
Max. shaft load axial (at the shaft end) [N]: 10
Max. shaft load radial (at the shaft end) [N]: 20
