Specifications
| Weight | 0.600 kg |
|---|---|
| Manufacturer | ELAP |
| Model | |
| Condition |

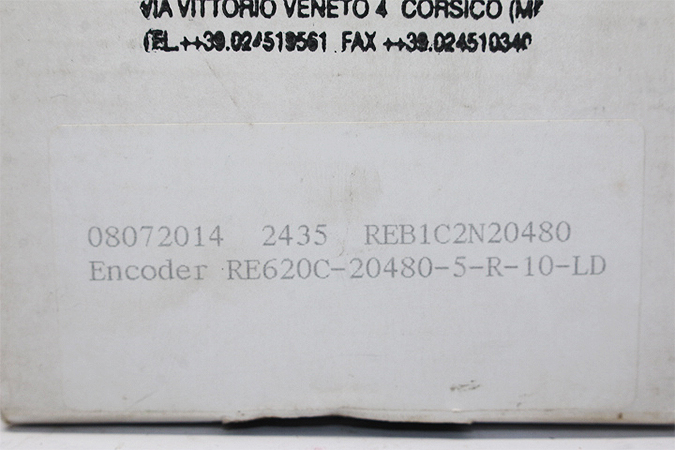

Elap Re620C-20480-5-R-10-Ld Incremental Encoder
We are NOT an authorized distributor for ELAP
- ManufacturerELAP
- ModelRE620C-20480-5-R-10-LD
- SKU051643
132 $
2 in stock
Description
Manufacturer: ELAP
Model: RE620C-20480-5-R-10-LD
Type: Incremental encoders
Technical Specifications:
Resolution: 2048 pulses per revolution (PPR)
Output signal: A, B, and Z channels with TTL levels
Housing material: aluminum
Maximum speed: 6000 RPM
Connector options: cable or M23 connector
Mounting: through hollow shaft with clamping ring
Shaft diameter: 10mm
Housing diameter: 58mm
Protection rating: IP65
Operating temperature range: -10°C to +70°C
