Specifications
| Weight | 0.100 kg |
|---|---|
| Manufacturer | WAGO |
| Model | |
| Condition |

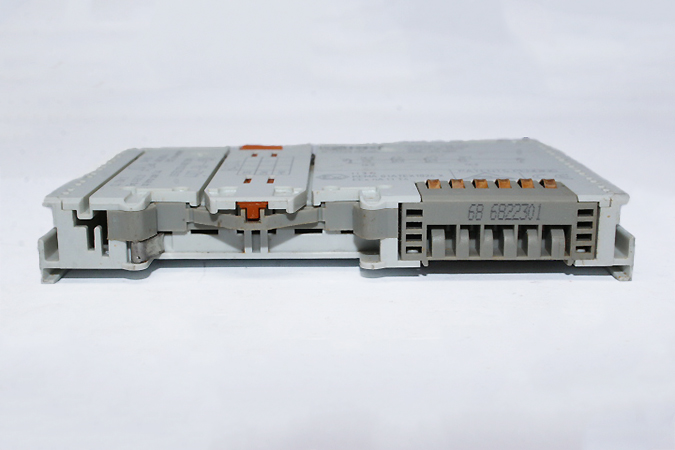

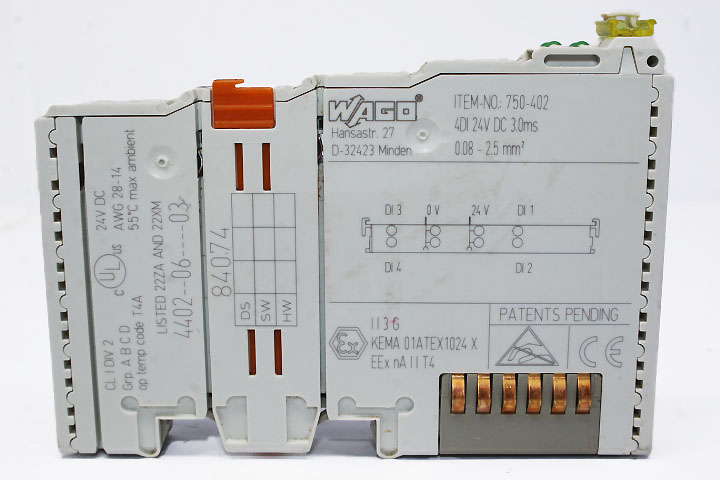

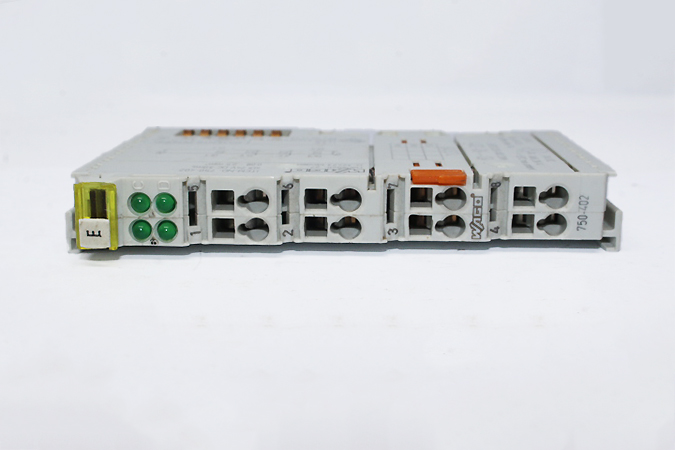

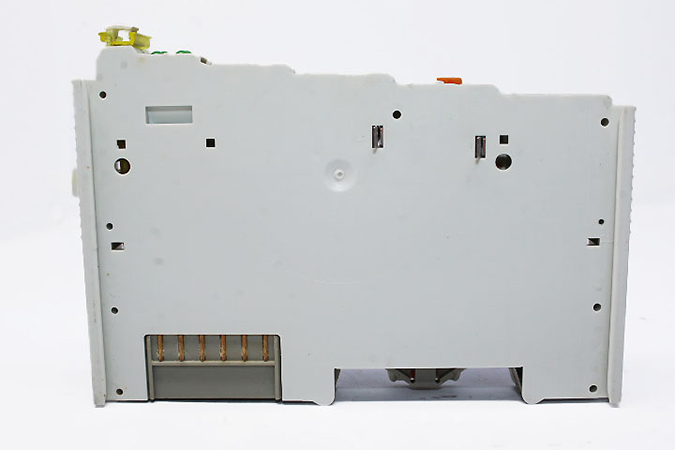

Wago 750-402 4-Channel Digital Input
We are NOT an authorized distributor for WAGO
- ManufacturerWAGO
- Model750-402
- SKU052470
21 $
10 in stock
Description
Manufacturer: WAGO
Model: 750-402
Type: 4-CHANNEL DIGITAL INPUT
Number of digital inputs: 4
Total number of channels (module): 4
Signal type: Digital
Signal voltage (field): 24 VDC
Sensor connection: 2‑wire or 3‑wire
Input characteristic: High‑side switching
Input filter (digital): 3 ms
Input current per channel (signal = 1, typical): 4.5 mA
Voltage range for signal (0): –3 … +5 VDC
Voltage range for signal (1): 15 … 30 VDC
System supply voltage: 5 VDC (via data contacts)
Current consumption (system supply): 7.5 mA
Field-side (sensor supply) voltage: 24 VDC (–25% … +30%)
Isolation (system ↔ field): 500 V
Width: 12 mm
Ambient temperature (operation): 0 … +55 °C
Protection type: IP20
