Specifications
| Weight | 0.55 kg |
|---|---|
| Manufacturer | TURCK |
| Model | |
| Condition |

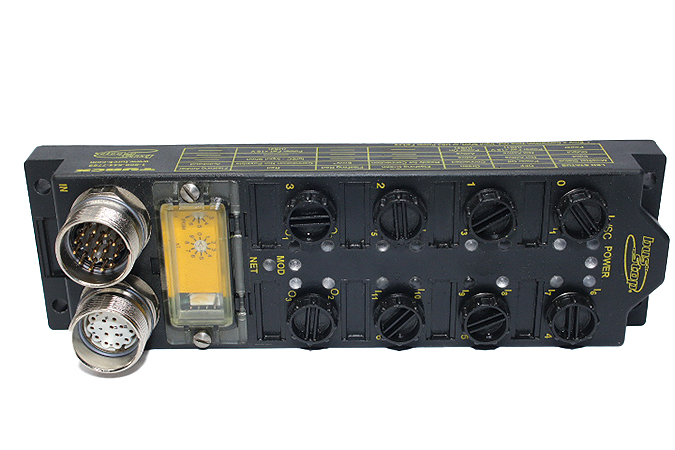

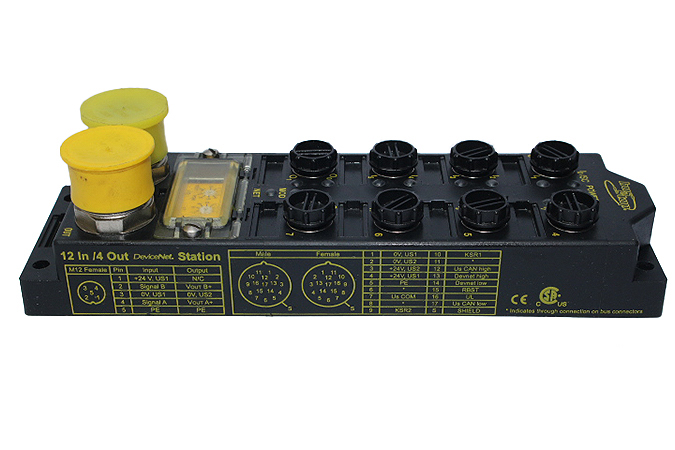

Turck Fdnl-S1204H-0153 I/O Module F0153
We are NOT an authorized distributor for TURCK
- ManufacturerTURCK
- ModelTURCK FDNL-S1204H-0153 I/O MODULE F0153
- SKU054760
179 $
1 in stock
Description
Manufacturer: TURCK
Model: FDNL-S1204H-0153
Type: I/O MODULE

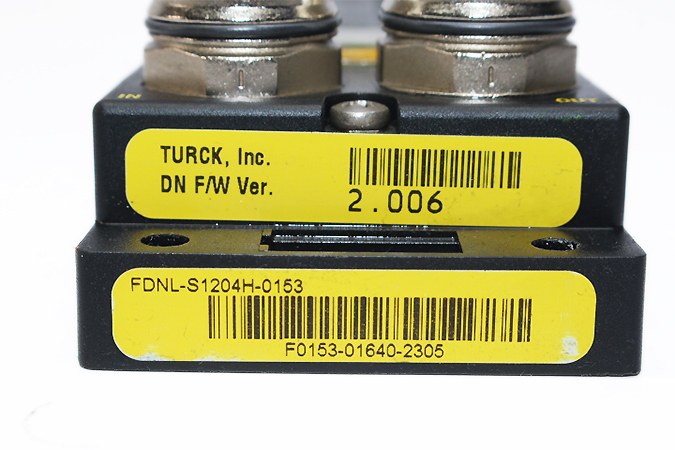

Part No.: F0153
Number of channels: 16
Operating / load voltage: 18…30 VDC
Inputs
Input voltage: 18…30 VDC from operating voltage UB
Supply current: 120 mA per port, short-circuit proof
Input delay: 2.5 ms
Switching frequency: <= 100 Hz
Max. input current: 7 mA
Outputs
Outputs: (4) DC actuators
Output voltage:24 VDC
Output current per channel: 2.0 A, short-circuit proof
Dimensions (W x L x H): 60 x 197 x 40 mm
Mounting: 4 mounting holes Ø 5,4 mm
Ambient temperature: -40…+70 °C
Protection class: IP67
